SQUARE D

Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass

METER MAIN RINGLESS OH/UG 200A

SQDRC12L200C RC12L200C 785901863984
1476.30 / EACH
http://schema.org/OutOfStock

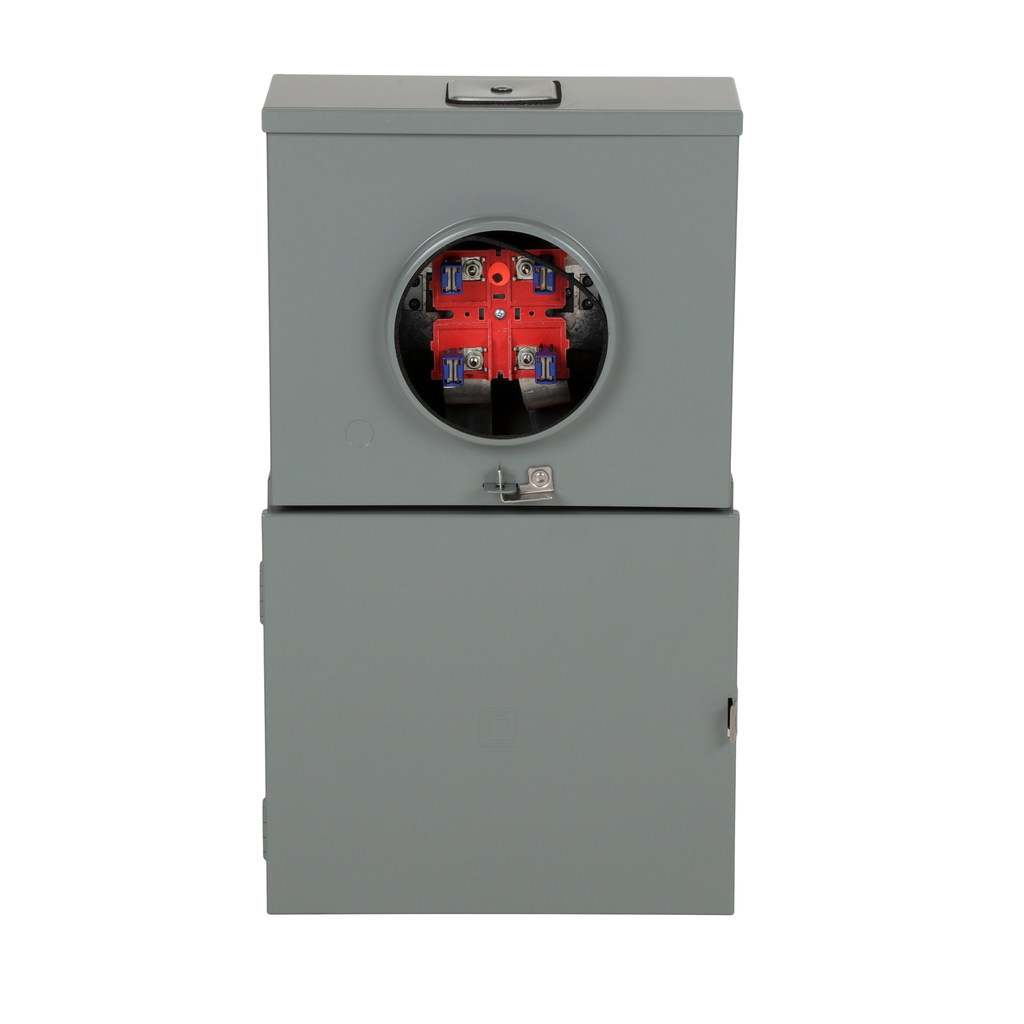

Mayer-DDS-Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass-2
  • Country of Origin: USA
  • Depth: 6.10 in
  • Height: 26.16 in
  • Number of Circuits: 0
  • Number of Spaces: 12
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: 18 mth
  • Width: 14.89 in
The Square D® Load Centers and Combination Service Entrance Devices, RC12L200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior main lug (service disconnects field installed). Meter Socket has no By-pass. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 50 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.60 inches. This surge protection device is CSA certified
QTY
  • Product Description
  • Features
  • Specifications
The Square D® Load Centers and Combination Service Entrance Devices, RC12L200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior main lug (service disconnects field installed). Meter Socket has no By-pass. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 50 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.60 inches. This surge protection device is CSA certified
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL E-6294
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 415.1879478813
  • Complementary
    • Height : 26.16 in
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || lugs 250 lb.in, AWG 4...300 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium || Cover 10 lb.in
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : lugs, line side || lugs, service ground
    • Number Of Circuits : 0
    • Number Of Spaces : 12
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 0
    • Hub Type : A
    • Meter Socket Type : ringless
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 200 A
    • Awg Gauge : AWG 6...350 kcmil aluminium/copper)line side || AWG 12...AWG 2/0 aluminium/copper)service ground
    • Width : 14.89 in
    • Depth : 6.10 in
    • Network Number Of Phases : 1
    • Device Composition : service disconnect (ordered separately)
    • Device Mounting : surface
  • Specifications
    • Country of Origin : United States
    • Width : 14.89 in
    • Height : 26.16 in
    • Range Of Product : Homeline
    • Product Or Component Type : Meter Mains
