Meter mains, Homeline, CSED, ringless socket, 100A, surface mount, maximum 8 spaces, 16 circuits, horn bypass

METER MAIN RINGLESS HORN OH/UG

SQDRC816F100CH RC816F100CH 785901401827
370.75 / EACH
http://schema.org/OutOfStock

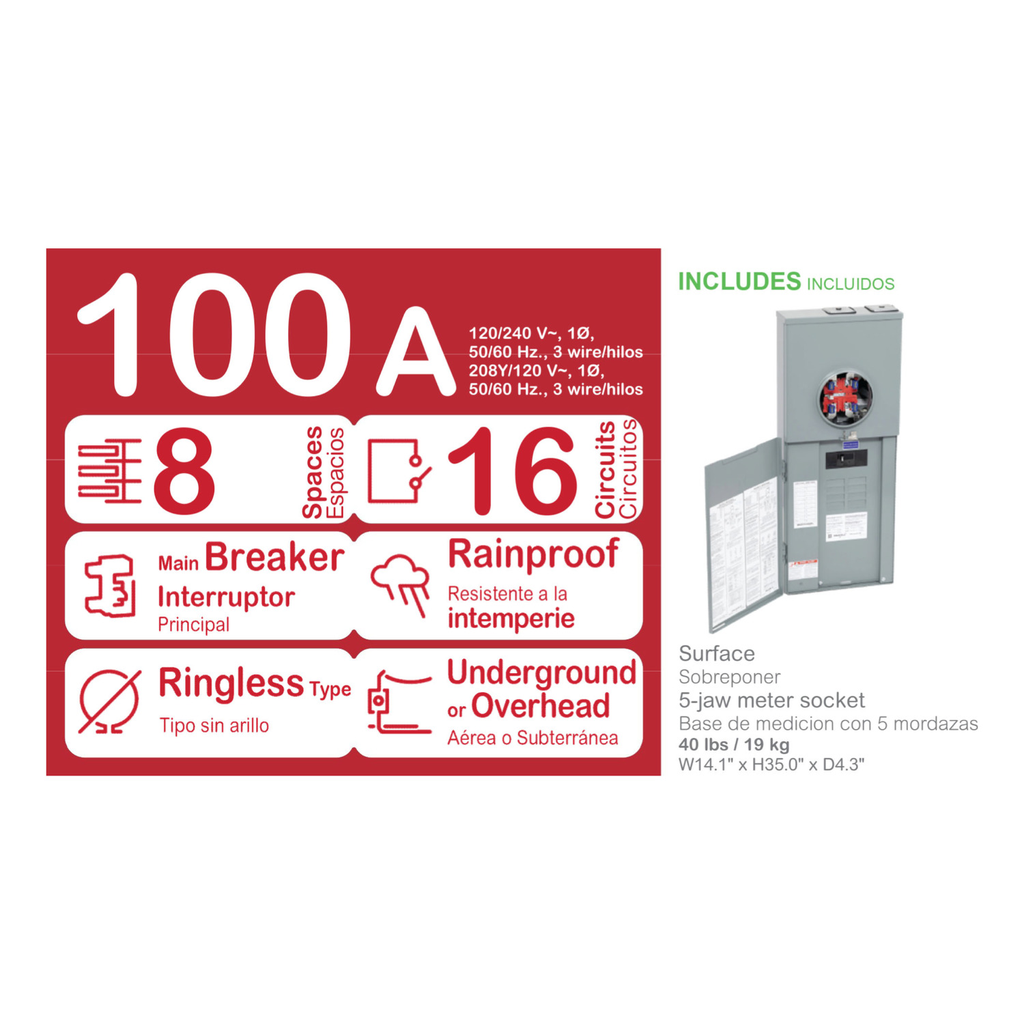

Mayer-DDS-Meter mains, Homeline, CSED, ringless socket, 100A, surface mount, maximum 8 spaces, 16 circuits, horn bypass-2
  • Warranty Length: 18 mth
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This service entrance meter main is supplied with feed thru lugs and has provisions for branch circuit breakers This Homeline combination service entrance meter main unit has a ringless meter socket with horn bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2100VH which has a maximum rating of 100 A. Device has a 22 kA short circuit current rating. Load center has 8 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 35.13 inches tall, 14.37 inches wide and 4.67 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 12 AWG to 2/0 AWG copper or aluminum wire. This Homeline combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.
QTY
  • Product Description
  • Features
  • Specifications
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This service entrance meter main is supplied with feed thru lugs and has provisions for branch circuit breakers This Homeline combination service entrance meter main unit has a ringless meter socket with horn bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2100VH which has a maximum rating of 100 A. Device has a 22 kA short circuit current rating. Load center has 8 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 35.13 inches tall, 14.37 inches wide and 4.67 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 12 AWG to 2/0 AWG copper or aluminum wire. This Homeline combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL E-6294, UL E-6294
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 100 A
    • Bus Rated Current : 200.0 A
    • Service Disconnect Rated Current : 100 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, SC
    • Persona Type Names : End User, Contractor, Electrician
    • AWG Gauge : AWG 6...350 kcmil aluminium/copper)line side, AWG 6...350 kcmil aluminium/copper)line side, AWG 6...350 kcmil aluminium/copper)line side, AWG 12...AWG 2/0 aluminium/copper)service ground, AWG 12...AWG 2/0 aluminium/copper)service ground, AWG 12...AWG 2/0 aluminium/copper)service ground
    • Electrical Connection : lugs, line side, lugs, line side, feed-thru lugs, service ground, feed-thru lugs, service ground
    • Service Feed Location : OH, UG
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper, main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper, main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper, main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper, service ground 50 lb.in, AWG 14...AWG 2/0, copper, service ground 50 lb.in, AWG 14...AWG 2/0, copper, service ground 50 lb.in, AWG 14...AWG 2/0, copper, service ground 50 lb.in, AWG 14...AWG 2/0, copper, service ground 50 lb.in, AWG 12...AWG 2/0, aluminium, service ground 50 lb.in, AWG 12...AWG 2/0, aluminium, service ground 50 lb.in, AWG 12...AWG 2/0, aluminium, service ground 50 lb.in, AWG 12...AWG 2/0, aluminium, branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper, branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper, branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper, branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper, branch lugs 25 lb.in, AWG 8, aluminium/copper, branch lugs 25 lb.in, AWG 8, aluminium/copper, branch lugs 25 lb.in, AWG 8, aluminium/copper, branch lugs 25 lb.in, AWG 8, aluminium/copper, branch lugs 20 lb.in, AWG 14...AWG 10, copper, branch lugs 20 lb.in, AWG 14...AWG 10, copper, branch lugs 20 lb.in, AWG 14...AWG 10, copper, branch lugs 20 lb.in, AWG 14...AWG 10, copper, branch lugs 20 lb.in, AWG 12...AWG 10, aluminium, branch lugs 20 lb.in, AWG 12...AWG 10, aluminium, branch lugs 20 lb.in, AWG 12...AWG 10, aluminium, branch lugs 20 lb.in, AWG 12...AWG 10, aluminium, Cover 10 lb.in, Cover 10 lb.in
    • Carbon Footprint Of The Distribution Phase A4 : 12.69179096513619, 13 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 30 kg CO2 eq., 29.62343725254525
    • Carbon Footprint Of The Installation Phase A5 : 0.2478939454901057, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 118 kg CO2 eq., 118.32772981851846
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 220 kg CO2 eq., 219.92644545809503
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringless
    • Package Weight Lbs : 18.597 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Mains
    • Range Of Product : Homeline
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 381 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2509019EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsThe installation must be protected against overloads and short circuits in accordance with the circuit’s rated voltage (Ue), rated current (In), number of poles (Np), rated breaking capacity (Icn), and tripping curve (Cd). The protective device should be capable of establishing, carrying, and interrupting the rated current at the rated voltage. It must be suitable for wall-mounted or enclosure/cabinet installations in household or commercial environments, depending on the intended use. Additionally, the device should be designed to maintain reliable performance throughout a reference service life of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 380.8172974397851
    • Environmental Disclosure : ENVPEP2509019EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2509019EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Meter Mains
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : horn bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
