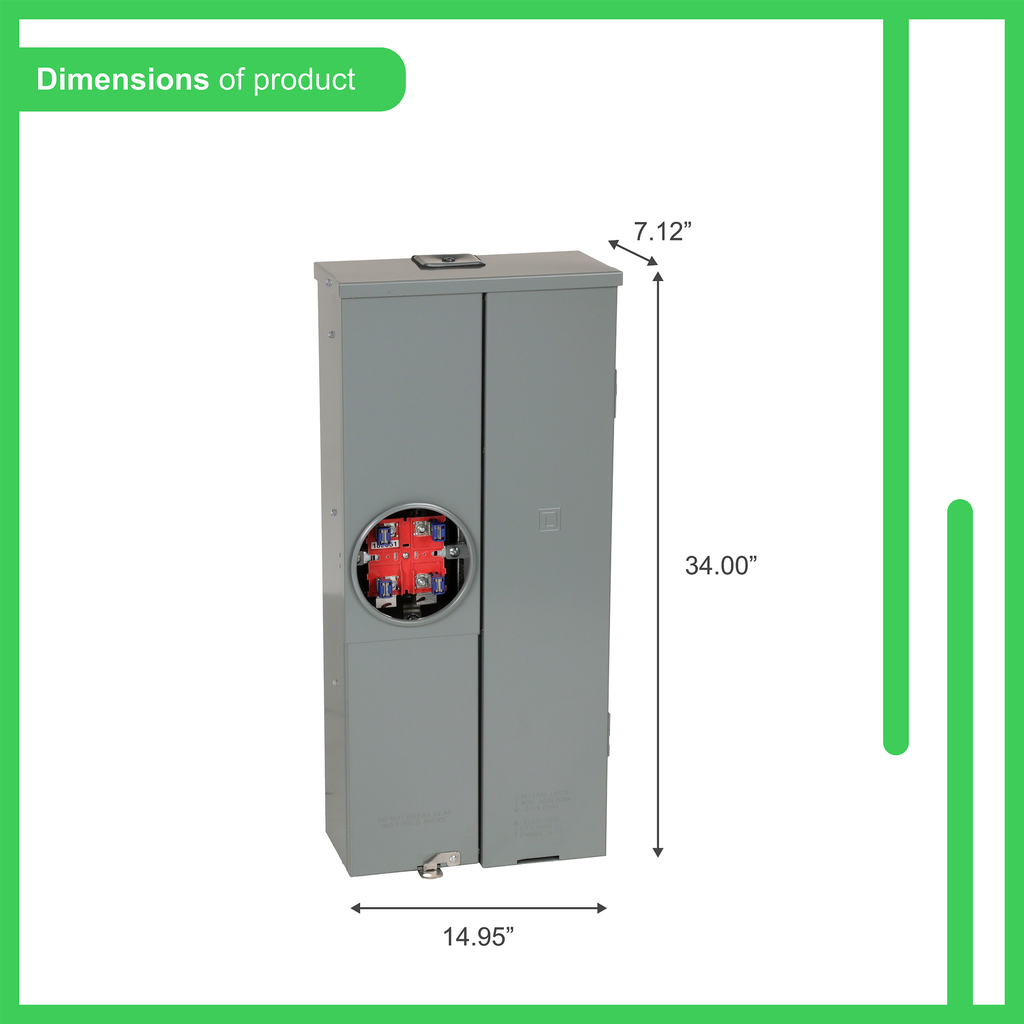

Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass

METER MAIN RING T-FEED THRU OH

SQDSC816D200C SC816D200C 785901859161
1332.17 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass-2
  • Country of Origin: Mexico
  • Number of Spaces: 8
  • Warranty Length: 18 mth
The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816D200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM ring type Meter Mains meets Federal Specifi
QTY
  • Product Description
  • Features
  • Specifications
The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816D200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM ring type Meter Mains meets Federal Specifi
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0566908792
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 2 kg CO2 eq.
    • 2.1364627708
  • Electrical Connection
    • lugs, line side
    • feed-thru lugs, service ground
    • feed-thru lugs, load side
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 95 kg CO2 eq.
    • 94.7748014583
  • Accessories
    • HOMFP
    • LK225AN
    • SC200F
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • Electrician
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 317 kg CO2 eq.
    • 316.61
  • Persona Type Ids
    • EU
    • LC
    • OM
    • SC
  • Service Feed Location
    • OH
    • UG
  • Carbon Footprint Of The Distribution Phase A4
    • 3.0227000833
    • 3 kg CO2 eq.
  • Tightening Torque
    • main lugs 250 lb.in, AWG 6...300 kcmil, aluminium/copper
    • service ground 50 lb.in, A
  • AWG Gauge
    • AWG 6...300 kcmil aluminium/copper)line side
    • AWG 12...AWG 1/0 aluminium/copper)service ground
    • AWG 12...AWG 1/0 alum
  • Product Certifications
    • UL E-6294
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 100 A
    • Bus Rated Current : 200.0 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Homeline™ ringed meter mains support standard utility meters and a main disconnect breakers
    • B2B Bullet Point 2 : This single compact solution provides a time and space saving solution for contractors and installers
    • B2B Bullet Point 3 : Suitable for use as service entrance equipment
    • B2B Bullet Point 4 : CSED integrate meter socket that, a main disconnect and load center into one compact design
    • B2B Bullet Point 5 : Product conforms to the electrical characteristics per UL and ANSL standards
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-15
    • HTML Description : Meter Mains, Homeline, Combination Service Entrance, ringed socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 94.7748014583
    • Distribution Carbon Footprint : 3.0227000833
    • Installation Carbon Footprint : 0.0566908792
    • Use Carbon Footprint : 316.61
    • End Of Life Carbon Footprint : 2.1364627708
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2534
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringed
    • Network Number Of Phases : 1
    • Number Of Spaces : 8
    • Number Of Tandem Circuit Breakers : 8
    • Package Weight Lbs : 23.428 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Mains
    • Range Of Product : Homeline
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 417 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 416.6006551917
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1407020EN
    • Pep Verification Date : 2020-07-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 23428
    • Functional Unit Description : To distribute electricity throughout a building or residential structure for 20 years
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 457.272
    • Energy Model Manufacturing A1 A3 : Energy model used: Mexico
    • Energy Model Installation A5 : Electricity mix; AC; 120V; US
    • Energy Model Use B6 : Electricity mix; AC; 120V; US
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0140845027
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0140812042
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.000000121
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000022
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000031114
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000639
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 4849.2852028979
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 926.2357416667
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 42.466910625
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.7219118562
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 3854.8
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 25.06063875
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0030199424
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0002838693
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0027360731
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 803.4443729316
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 771.2814854167
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000214732
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 8.4652
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 23.6976660417
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0433576627
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0433576627
    • Materials For Recycling Kg Total Life Cycle : 22.6408680083
    • Materials For Recycling Kg Manufacturing A1 A3 : 2.2222434167
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.9648431333
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 19.4537814583
    • Net Use Of Fresh Water M3 Total Life Cycle : 1.5454803569
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.9831340562
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0002705202
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000094782
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.55957
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0024963022
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 122.988299931
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 74.3277704167
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.1073978567
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0468437979
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 48.41
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0962878598
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000123571
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000064787
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000061
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000002
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000057423
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000001297
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0345077849
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0292996425
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000764912
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000027619
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.004981
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0001478892
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7430.6023019646
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3349.5938958333
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 42.6828875
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.7296723812
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 4006.4
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 31.19584625
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 7710.2680922375
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 3373.2659375
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 42.7390170833
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.7319053625
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 4262.3
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 31.2312322917
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 279.7987166874
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 23.724510625
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0569581048
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0022340794
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 255.98
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0350138781
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 45.7529316667
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 45.7529316667
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7384.8444894646
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3303.8360833333
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 42.6828875
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.7296723812
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 4006.4
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 31.19584625
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 18.401961875
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 18.401961875
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 261.396266729
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.3220606667
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0569581048
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0022340794
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 255.98
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0350138781
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 4.9624652708
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 4.9624652708
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 48685.3741884167
    • Air Pollution M3 Manufacturing A1 A3 : 21446.3816666667
    • Air Pollution M3 Distribution A4 : 128.5855541667
    • Air Pollution M3 Installation A5 : 2.5980675833
    • Air Pollution M3 Operational Energy Use B6 : 26887
    • Air Pollution M3 End Of Life C1 C4 : 220.8089
    • Water Pollution M3 Total Life Cycle : 20789.9041601875
    • Water Pollution M3 Manufacturing A1 A3 : 4436.5554791667
    • Water Pollution M3 Distribution A4 : 497.07626875
    • Water Pollution M3 Installation A5 : 8.4410351875
    • Water Pollution M3 Operational Energy Use B6 : 15609
    • Water Pollution M3 End Of Life C1 C4 : 238.8313770833
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.6310869865
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0820590076
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.1271623198
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.3076999354
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0138017765
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0002349023
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.30314
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0062103723
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 416.6006551917
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 94.7748014583
    • Global Warming Kg Equivalent Co2 Distribution A4 : 3.0227000833
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0566908792
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 316.61
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 2.1364627708
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0318303546
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.000984879
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000175991
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.048556
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.000670175
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0425364625
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0031788867
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000716348
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.079889
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0014863358
  • General Attributes
    • Product Or Component Type : Meter Mains
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=361811&lang=en-us
    • Take Back : No
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 416.6006551917
    • Environmental Disclosure : ENVPEP1407020EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1407020EN
    • Pep Verification Date : 2020-07-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
