Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready

METER MAIN RING OH/UG SURFACE

SQDSC816F200PS SC816F200PS 785901340492
237.67 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, Homeline, CSED, ringed socket, 200A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready-2
  • Country of Origin: Mexico

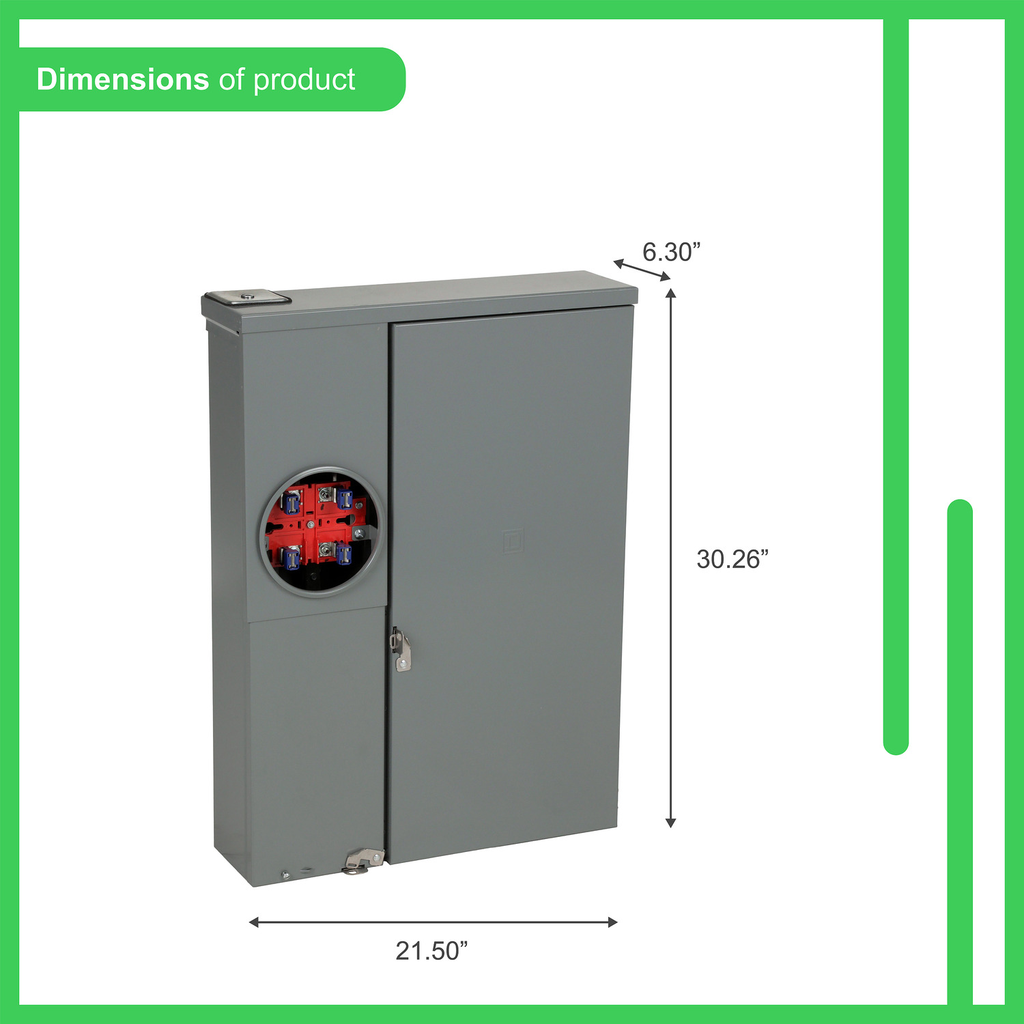

  • Depth: 6.30 in
  • Height: 30.26 in
  • Number of Circuits: 16
  • Number of Spaces: 8
  • Short Circuit Current Rating: 22 kA
  • Width: 21.50 in
The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816F200PS. Enclosure mounting style performed as Home PoN surface mount device.This HOM ring type Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs. Meter Socket has no By-pass.
QTY
  • Product Description
  • Features
  • Specifications
The Square D® Homeline® Load Centers and Combination Service Entrance Devices, SC816F200PS. Enclosure mounting style performed as Home PoN surface mount device.This HOM ring type Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs. Meter Socket has no By-pass.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL E-6294
    • Nema Degree Of Protection : NEMA 3R
  • Complementary
    • Height : 30.26 in
    • Tightening Torque : main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || lugs 250 lb.in, AWG 6...250 kcmil, aluminium/copper || branch lugs 50 lb.in, AWG 14...AWG 2/0, copper || branch lugs 50 lb.in, AWG 12...AWG 2/0, aluminium || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 110 A
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 225.0 A
    • Electrical Connection : lugs, line side || lugs, service ground || feed-thru lugs, load side
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 8
    • Hub Type : A-L
    • Meter Socket Type : ringed
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 200 A
    • Awg Gauge : AWG 4...250 kcmil aluminium/copper)line side || AWG 6...250 kcmil aluminium/copper)load side || AWG 14...AWG 2/0 aluminium/copper)service ground
    • Width : 21.50 in
    • Depth : 6.30 in
    • Network Number Of Phases : 1
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 418.9608580396
  • Specifications
    • Country of Origin : Mexico
    • Width : 21.50 in
    • Height : 30.26 in
    • Range Of Product : Homeline
    • Provided Equipment : circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
    • Product Or Component Type : Meter Mains
