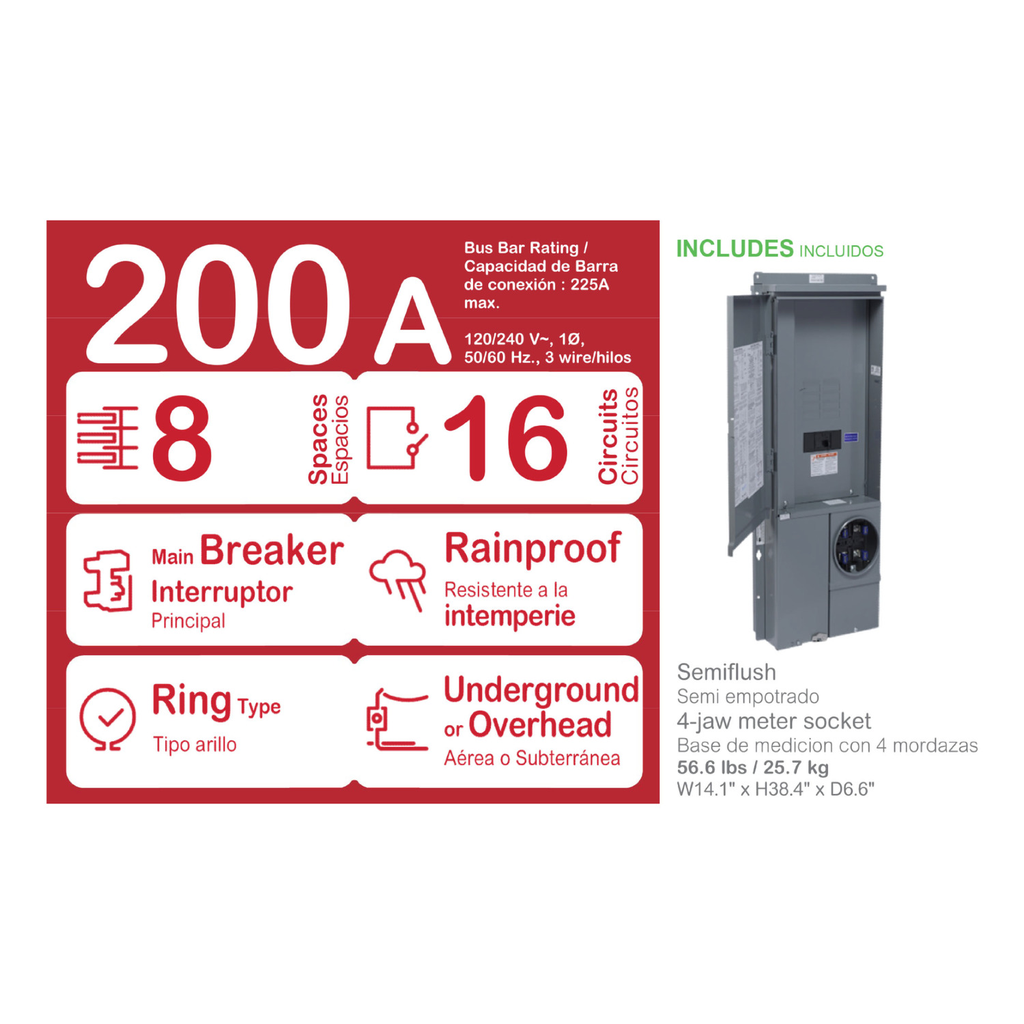

Meter mains, Homeline, CSED, ringed socket, 200A, outdoor semi flush mount, maximum 8 spaces, 16 circuits, no bypass

Meter mains, Homeline, combina

SQDSC816F200PF SC816F200PF 785901861744
246.84 / EA
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, Homeline, CSED, ringed socket, 200A, outdoor semi flush mount, maximum 8 spaces, 16 circuits, no bypass-2
  • Country of Origin: Mexico
  • Depth: 3.40 in
  • Height: 39.80 in
  • Number of Circuits: 16
  • Number of Spaces: 8
  • Short Circuit Current Rating: 22 kA
  • Width: 16.80 in
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect has a HOM2200 with a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 8 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R semi flush mount enclosure that is 39.80 in inches tall, 14.50 inches wide and 3.40 inches deep. The line side lugs will accept 4 AWG to 250 kcmil and load side lugs 6 AWG to 250 kcmil accept copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect has a HOM2200 with a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 8 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R semi flush mount enclosure that is 39.80 in inches tall, 14.50 inches wide and 3.40 inches deep. The line side lugs will accept 4 AWG to 250 kcmil and load side lugs 6 AWG to 250 kcmil accept copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 422.6996242146
  • Complementary
    • Height : 39.80 in
    • Tightening Torque : main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || lugs 250 lb.in, AWG 6...250 kcmil, aluminium/copper || branch lugs 50 lb.in, AWG 14...AWG 2/0, copper || branch lugs 50 lb.in, AWG 12...AWG 2/0, aluminium || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 100 A
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 225.0 A
    • Electrical Connection : lugs, line side || lugs, service ground || feed-thru lugs, load side
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 8
    • Hub Type : A-L
    • Meter Socket Type : ringed
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 200 A
    • Awg Gauge : AWG 4...250 kcmil aluminium/copper)line side || AWG 8...AWG 2/0 aluminium/copper)service ground || AWG 6...250 kcmil aluminium/copper)load side
    • Width : 16.80 in
    • Depth : 3.40 in
    • Network Number Of Phases : 1
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : semi flush (outdoor)
  • Specifications
    • Country of Origin : Mexico
    • Width : 16.80 in
    • Height : 39.80 in
    • Range Of Product : Homeline
    • Provided Equipment : circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
    • Product Or Component Type : Meter Mains
  • Environment
    • Product Certifications : UL E-6294
    • Nema Degree Of Protection : NEMA 3R
