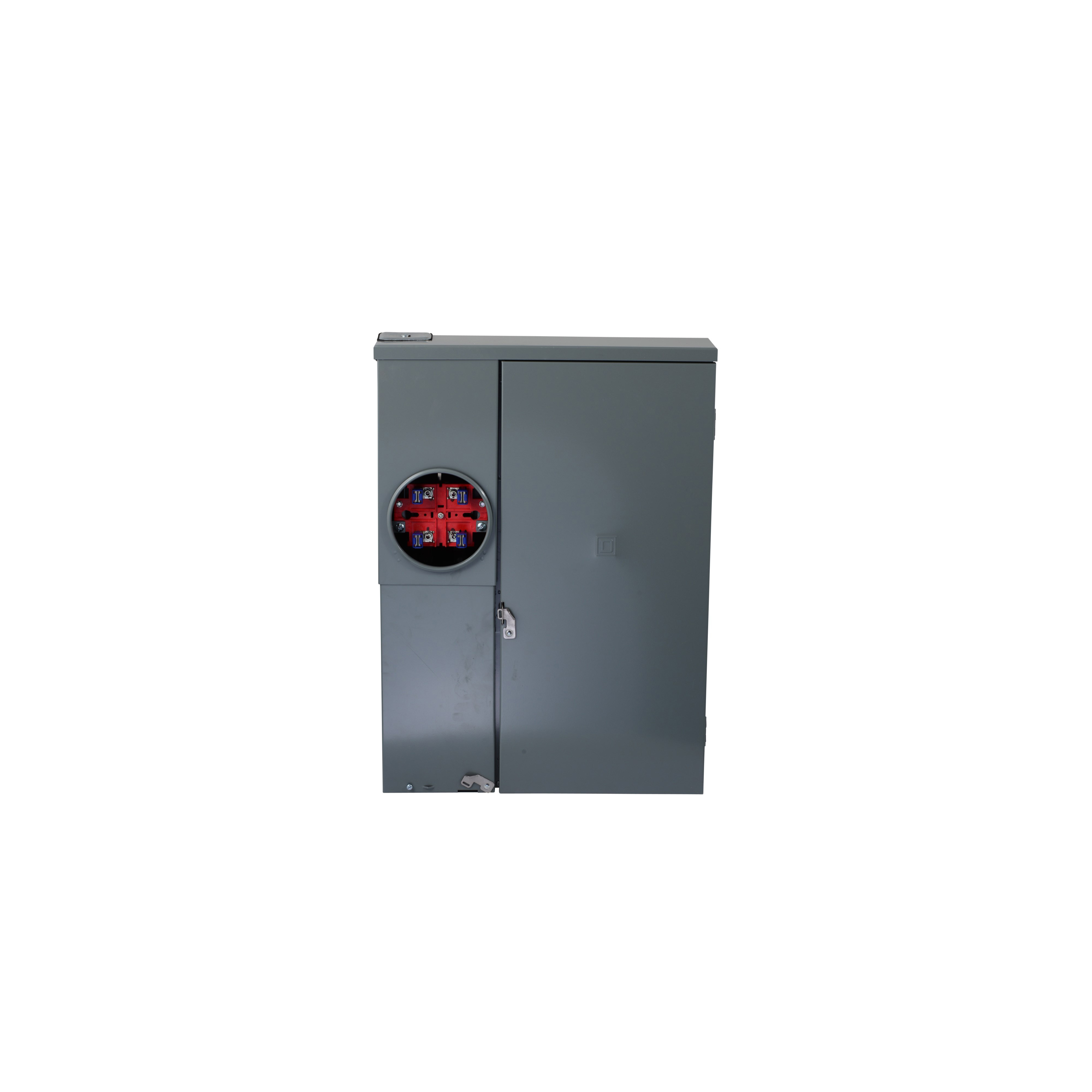

Meter mains, Homeline, CSED, ringed socket, 150A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready

METER MAIN RING OH/UG SURFACE

SQDSC816F150PS SC816F150PS 785901278399
270.37 / EA
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, Homeline, CSED, ringed socket, 150A, surface mount, 8 spaces, 16 circuits, no bypass, solar ready-2
  • Depth: 6.30 in
  • Number of Circuits: 16
  • Number of Spaces: 8
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect has a QOM2150VH with a maximum rating of 150 A. Device has a 22 kA short circuit current rating. Load center has 8 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 30.26 inches tall, 21.50 inches wide and 6.30 inches deep. The line side lugs will accept 4 AWG to 250 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed. Device meets EUSERC standards. Solar ready kit SR69064A fits this device.
QTY
  • Product Description
  • Features
  • Specifications
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect has a QOM2150VH with a maximum rating of 150 A. Device has a 22 kA short circuit current rating. Load center has 8 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 30.26 inches tall, 21.50 inches wide and 6.30 inches deep. The line side lugs will accept 4 AWG to 250 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed. Device meets EUSERC standards. Solar ready kit SR69064A fits this device.
  • Features
    • Homeline™ ringless meter mains support standard utility meters and a main disconnect breakers
    • This single compact solution provides a time and space saving solution for contractors and installers
    • Suitable for use as service entrance equipment
    • CSED allows for the meter socket to integrate with the load center into one compact design
    • Product conforms to the electrical characteristics per UL and ANSL standards
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 110 A
    • Bus Rated Current : 225.0 A
    • Line Rated Current : 150 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • Electrical Connection : lugs, line side, lugs, service groundfeed-thru lugs, load side
    • Service Feed Location : OH, UG
    • Tightening Torque : branch lugs 50 lb.in, 12 AWG...2/0 AWG, aluminium, main lugs 250 lb.in, 4 AWG...250 kcmil, aluminium/copperservice ground 50 lb.in, 14 AWG...2/0 AWG, copperservice ground 50 lb.in, 12 AWG...2/0 AWG, aluminiumlugs 250 lb.in, 6 AWG...250 kcmil, aluminium/copper, branch lugs 50 lb.in, 14 AWG...2/0 AWG, copperCover 10 lb.in
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : Y
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2534
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Awg Gauge : 4 AWG...250 kcmil aluminium/copper)line side6 AWG...250 kcmil aluminium/copper)load side14 AWG...2/0 AWG aluminium/copper)service ground
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : False
    • Hub Type : A-L
    • Meter Socket Type : ringed
    • Network Number Of Phases : 1
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Number Of Tandem Circuit Breakers : 8
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Mains
    • Provided Equipment : circuit-breaker 1 ) 2P 150 A 120/240 V AC main supply ready assembled
    • Range Of Product : Homeline
    • Returnability : Yes
    • Sustainable Packaging : No
    • Height Nominal : 30.26 in
    • Width Nominal : 21.50 in
    • Certificate Agency : UL E-6294
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8537109150
    • Short Circuit Current : 22 kA
    • Warranty In Months : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
  • General Attributes
    • Product Or Component Type : Meter Mains
    • Provided Equipment : circuit-breaker 1 ) 2P 150 A 120/240 V AC main supply ready assembled
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : no bypass
  • Specifications
    • Country of Origin : Mexico
    • Depth : 6.30 in
