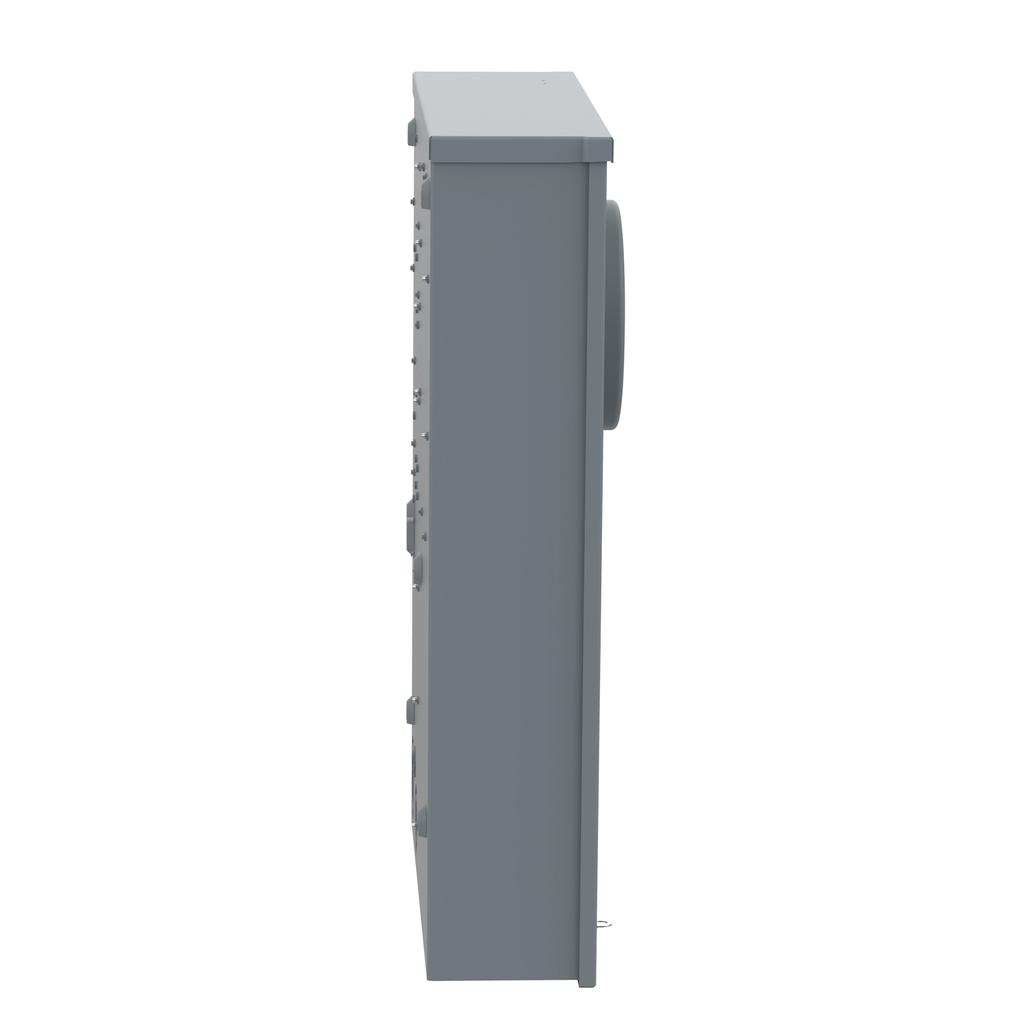

Solar ready combination service entrance devices are available with ring or ringless type meter socket designs. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These solar ready combination service entrance devices meet the California Title 24 requirements and are suitable for use with Photovoltaic system applications. This QO combination service entrance meter main unit has a ringless meter socket with a lever bypass. The main service disconnect is rated at 200 A and has a short circuit rating 22 kA. It has a QO plug on neutral load center that has 8 spaces and 16 circuits. This unit has a NEMA 3R enclosure that is surface mounted and underground service feed only. The line side lugs will accept 4 AWG to 300 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This QO combination service entrance meter main unit is UL Listed and meets EUSERC standards.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Branch Circuit Breaker Rated Current : 110 A
• Service Disconnect Rated Current : 200 A
• Important Information Attributes
• AWG Gauge : AWG 4...300 kcmil (aluminium/copper) line side, AWG 4...300 kcmil (aluminium/copper) line side, AWG 4...300 kcmil (aluminium/copper) line side, AWG 8...AWG 2/0 (aluminium/copper) service ground, AWG 8...AWG 2/0 (aluminium/copper) service ground, AWG 8...AWG 2/0 (aluminium/copper) service ground
• Electrical Connection : lugs, line side, lugs, line side, lugs, service ground, lugs, service ground
• Tightening Torque : line side 250 lb.in, AWG 4...300 kcmil, aluminium/copper, line side 250 lb.in, AWG 4...300 kcmil, aluminium/copper, line side 250 lb.in, AWG 4...300 kcmil, aluminium/copper, line side 250 lb.in, AWG 4...300 kcmil, aluminium/copper, service ground 50 lb.in, AWG 8...AWG 2/0, aluminium/copper, service ground 50 lb.in, AWG 8...AWG 2/0, aluminium/copper, service ground 50 lb.in, AWG 8...AWG 2/0, aluminium/copper, service ground 50 lb.in, AWG 8...AWG 2/0, aluminium/copper, branch lugs 50 lb.in, AWG 3...AWG 1/0, aluminium/copper, branch lugs 50 lb.in, AWG 3...AWG 1/0, aluminium/copper, branch lugs 50 lb.in, AWG 3...AWG 1/0, aluminium/copper, branch lugs 50 lb.in, AWG 3...AWG 1/0, aluminium/copper, branch lugs 45 lb.in, AWG 4, aluminium/copper, branch lugs 45 lb.in, AWG 4, aluminium/copper, branch lugs 45 lb.in, AWG 4, aluminium/copper, branch lugs 45 lb.in, AWG 4, aluminium/copper, branch lugs 45 lb.in, AWG 6, aluminium/copper, branch lugs 45 lb.in, AWG 6, aluminium/copper, branch lugs 45 lb.in, AWG 6, aluminium/copper, branch lugs 45 lb.in, AWG 6, aluminium/copper, branch lugs 40 lb.in, AWG 8, aluminium/copper, branch lugs 40 lb.in, AWG 8, aluminium/copper, branch lugs 40 lb.in, AWG 8, aluminium/copper, branch lugs 40 lb.in, AWG 8, aluminium/copper, branch lugs 35 lb.in, AWG 14...AWG 10, copper, branch lugs 35 lb.in, AWG 14...AWG 10, copper, branch lugs 35 lb.in, AWG 14...AWG 10, copper, branch lugs 35 lb.in, AWG 14...AWG 10, copper, branch lugs 35 lb.in, AWG 12...AWG10, aluminium, branch lugs 35 lb.in, AWG 12...AWG10, aluminium, branch lugs 35 lb.in, AWG 12...AWG10, aluminium, branch lugs 35 lb.in, AWG 12...AWG10, aluminium
• Carbon Footprint Of The Distribution Phase A4 : 11.290447221732874, 11 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 26 kg CO2 eq., 26.352612940516444
• Carbon Footprint Of The Installation Phase A5 : 0.2205231330890527, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 105 kg CO2 eq., 105.26276331317706
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 220 kg CO2 eq., 219.92644545809503
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Pre Comm Date : 2022-01-07
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Meter enclosures
• H And D Enrichment Class 4 : Combination service entrance device
• Energy Efficiency Optimized : False
• Meter Socket Type : ringless
• Package Weight Lbs : 17.0 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Meter Mains
• Range Of Product : QO
• Returnability : Yes
• Service Feed Location : UG
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 363 kg CO2 eq.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2509019EN
• Pep Verification Date : 2025-09-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsThe installation must be protected against overloads and short circuits in accordance with the circuit’s rated voltage (Ue), rated current (In), number of poles (Np), rated breaking capacity (Icn), and tripping curve (Cd). The protective device should be capable of establishing, carrying, and interrupting the rated current at the rated voltage. It must be suitable for wall-mounted or enclosure/cabinet installations in household or commercial environments, depending on the intended use. Additionally, the device should be designed to maintain reliable performance throughout a reference service life of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 363.05279206661044
• Environmental Disclosure : ENVPEP2509019EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Pep Code : ENVPEP2509019EN
• Pep Verification Date : 2025-09-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : Meter Mains
• Range Of Product : QO
• Output Attributes
• Bypass Type : lever bypass
