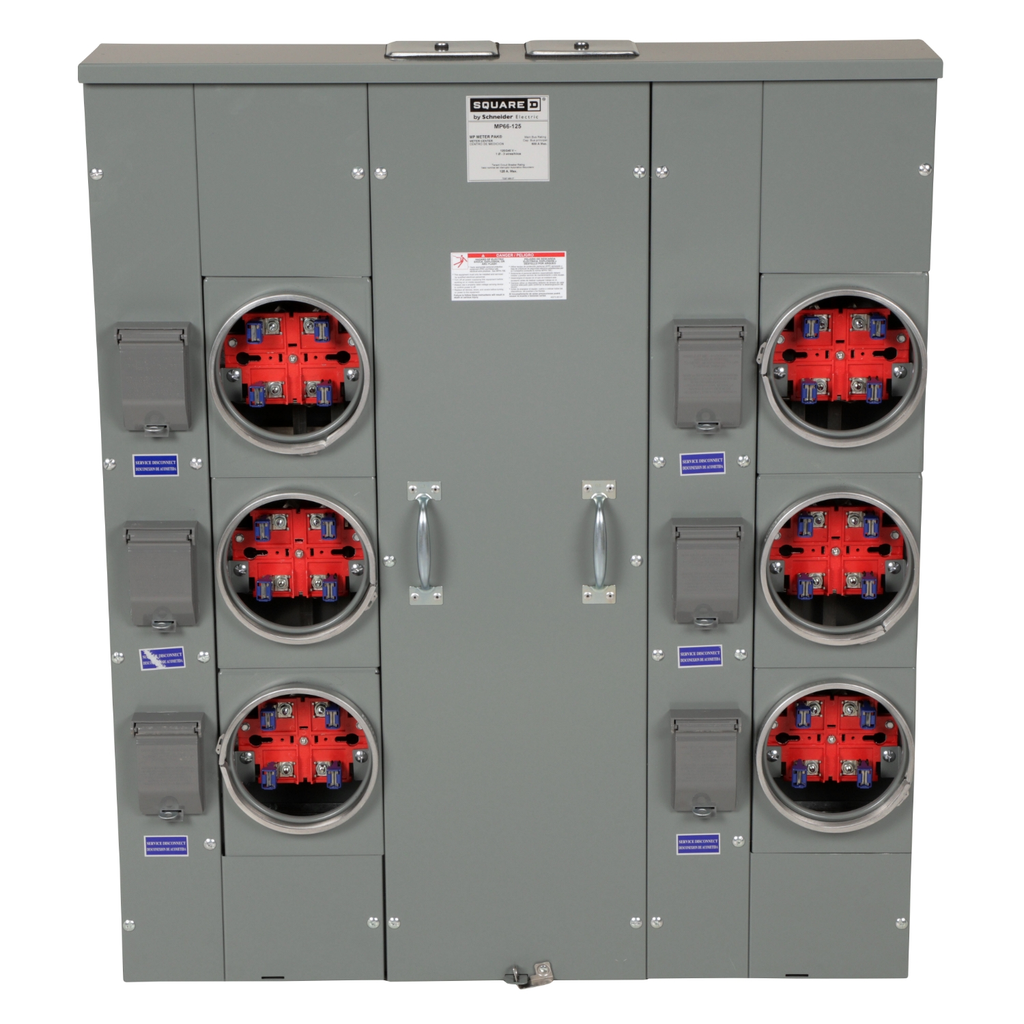

Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 600A bus, 125A max breaker rating, ringed

Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 600A bus, 125A max breaker rating, ringed

SQDMP66125 MP66125 785901001867
3094.05 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 600A bus, 125A max breaker rating, ringed-2
  • Enclosure Material: Steel
  • Number of Jaws: 4
  • Warranty Length: 18 mth
Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter pak is rated at 125 A with 6 positions. It has a 600 A main bus. This system is ring type.
QTY
  • Product Description
  • Features
  • Specifications
Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter pak is rated at 125 A with 6 positions. It has a 600 A main bus. This system is ring type.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : Mexico
    • Main Type : Main Lugs
    • Meter Socket Rated Current : 125 A
    • Number Of Meter Sockets : 6
    • Product Or Component Type : Meter Center
    • Number Of Jaws : 4
    • Meter Socket Type : ringed
  • Complementary
    • Product Certifications : UL Listed
    • Service Feed Location : UG || OH
    • Range Of Product : Meter-Pak
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Bypass Type : no bypass
    • Bus Rated Current : 600 A
    • Phase : 1 phase
    • Main Rated Current : 400 A || 500 A
    • Nema Degree Of Protection : NEMA 3R
    • Product Mounting : surface
    • Material : aluminium: busbar
    • Enclosure Material : steel
    • Awg Gauge : AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
    • Wiring Configuration : 3-wire
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2012009
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 263.4114620239
  • Contractual warranty
    • Warranty : 18 months
