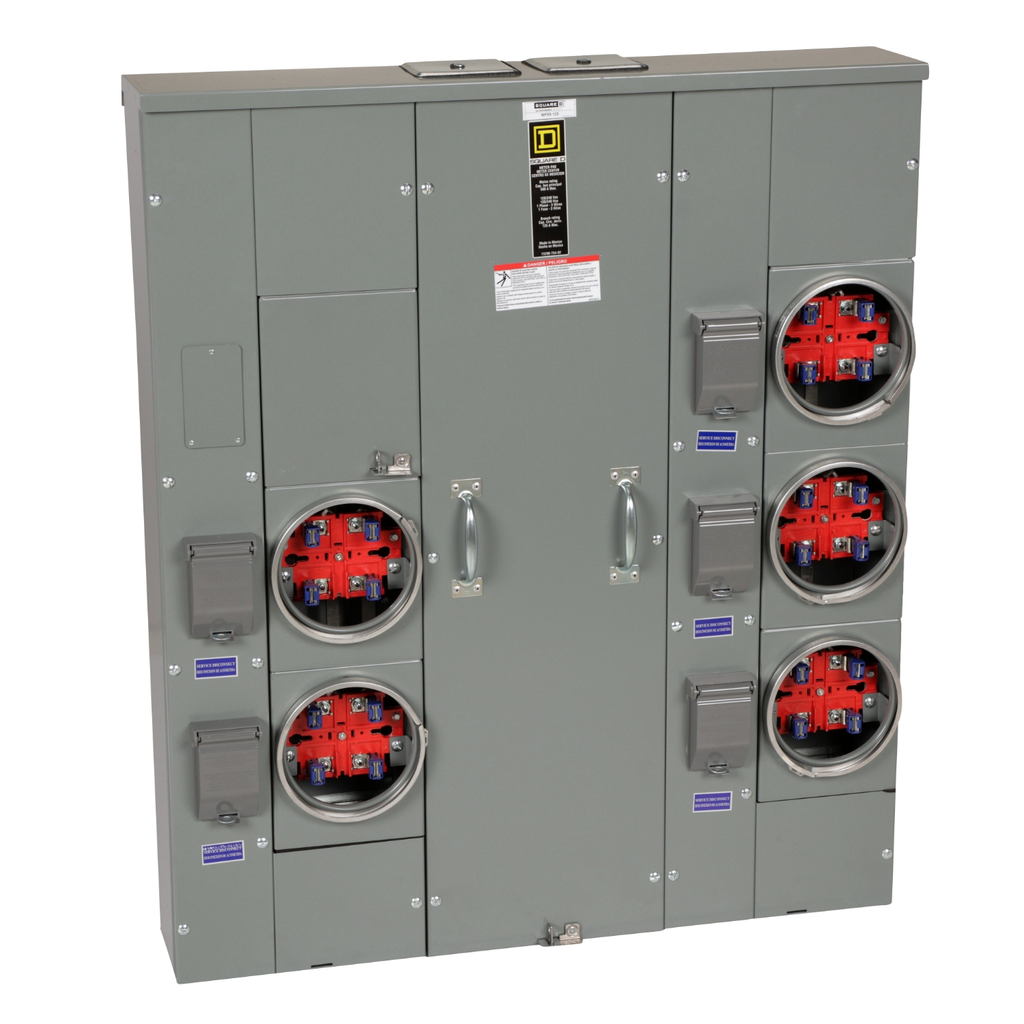

Meter center, MP Meter-Pak, 5 sockets, no bypass, 4 jaws, 500A bus, 125A max breaker rating, ringed

METERING MP DEVICE RING 125A 5

SQDMP55125 MP55125 785901001812
2728.47 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter center, MP Meter-Pak, 5 sockets, no bypass, 4 jaws, 500A bus, 125A max breaker rating, ringed-2
  • Country of Origin: Mexico
  • Depth: 7.28 in
  • Enclosure Material: Steel
  • Height: 42.37 in
  • Number of Jaws: 4
  • Warranty Length: 18 mth
  • Width: 36.46 in
Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact bra
QTY
  • Product Description
  • Features
  • Specifications
Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact bra
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Ue Rated Operational Voltage
    • 120/240 V AC
  • Material
    • aluminium: busbar
  • Persona Type Names
    • End User
    • Contractor
  • Persona Type Ids
    • EU
    • LC
  • Service Feed Location
    • UG
    • OH
  • Main Rated Current
    • 400 A
    • 500 A
  • AWG Gauge
    • AWG 1/0...600 kcmil 1 aluminium
    • AWG 1/0...600 kcmil 1 copper
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Bus Rated Current : 500 A
    • Meter Socket Rated Current : 125 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection
    • B2B Bullet Point 2 : 125A, 200A, and 225A units available, ringless or ring type with varied bypass options
    • B2B Bullet Point 3 : Suitable only for use as service equipment
    • B2B Bullet Point 4 : Surface mount, convertible to semi flush with field installed flange kit
    • B2B Bullet Point 5 : Pivoting mounting feet at meter center base
    • B2B Bullet Point 6 : NEMA Type 3R for outdoor and indoor installation
    • B2B Bullet Point 7 : Factory installed mechanical lugs, alternate lugs, and NEMA/EUSERC lug kits available
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-09
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 2532
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Single-phase multi-tenant meter enclosure
    • Enclosure Material : steel
    • Energy Efficiency Optimized : False
    • Main Type : Main Lugs
    • Meter Socket Type : ringed
    • Number Of Jaws : 4
    • Number Of Meter Sockets : 5
    • Package Weight Lbs : 58.967 kg
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Mounting : surface
    • Product Or Component Type : Meter Center
    • Range Of Product : Meter-Pak
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Meter Center
    • Range Of Product : Meter-Pak
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=359555&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2012009
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 42.37 in
    • Width : 36.46 in
    • Depth : 7.28 in
