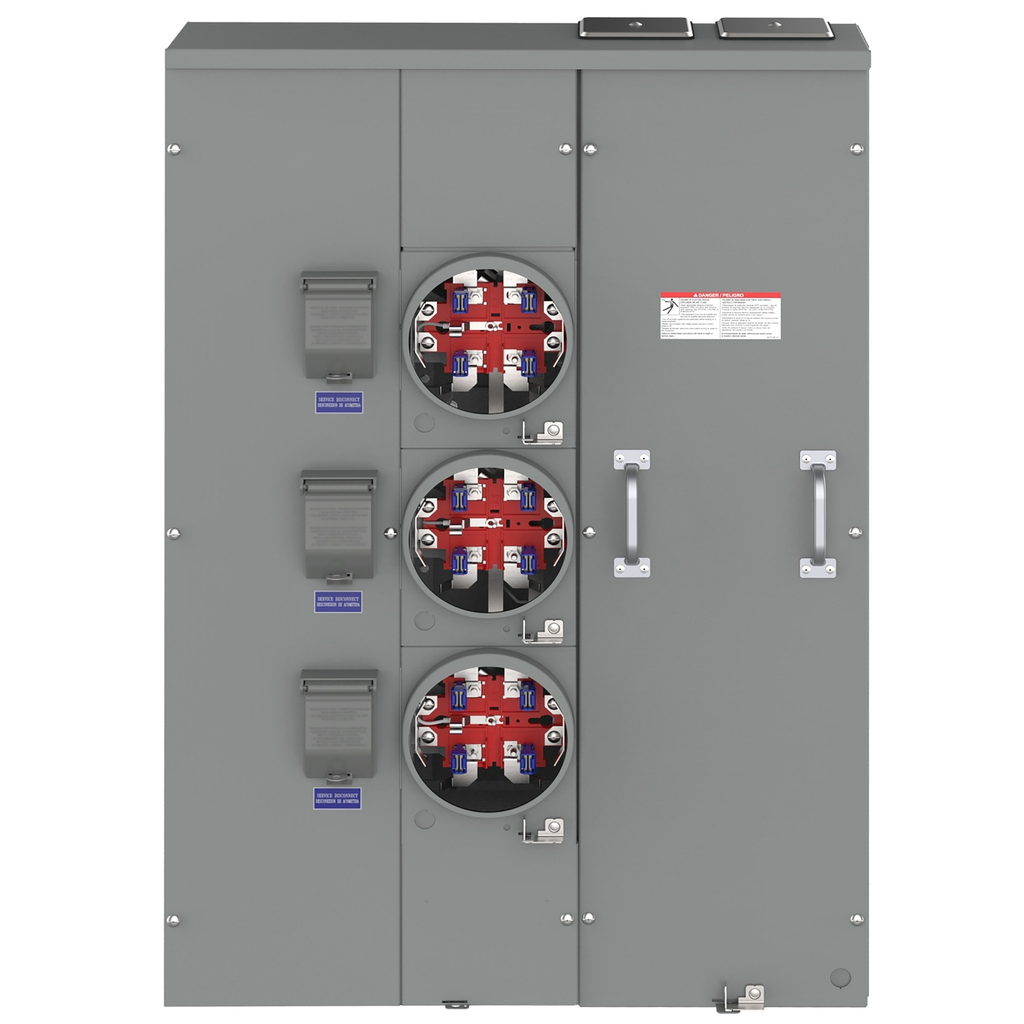

MPH Meter Pak meter centers offer a wide range of multimetering applications. MPH meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPH meter center has a ringless socket with a horn bypass and a 5th jaw. The aluminum main bus ampacity is 400 A. This MPH meter pak meter center has 3 meter sockets. The maximum tenant main lugs amperage is 200 A with a 240 VAC single phase maximum. This MPH meter center with accept 1/0 AWG to 600 kcmil copper or aluminum wire. Meter center is UL listed.

• Features
• The meter socket compartment has three ringless, five jaw meter sockets with a horn bypass
• It has a 400A rated bus and has provisions to accept two pole circuit breakers for each meter socket position
• Square D™ MP Meter-Pak™ main lugs meter compartments are suitable for service equipment
• It is UL listed and NEMA 3R rated
• Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Bus Rated Current : 400 A
• Main Rated Current : 400 A
• Meter Socket Rated Current : 200 A
• Ue Rated Operational Voltage : 120/240 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC
• Persona Type Names : End User, Contractor
• Awg Gauge : 1/0 AWG...600 kcmil 1 aluminium, 1/0 AWG...600 kcmil 1 copper
• Service Feed Location : UG, OH
• Carbon Footprint Of The Distribution Phase A4 : 19.915489266916335, 20 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 54 kg CO2 eq., 53.65697744661666
• Carbon Footprint Of The Installation Phase A5 : 0.15904654772308002, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 332 kg CO2 eq., 332.1656414418843
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-09-28
• Return Indicator : Y
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : No
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2532
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Enclosure Material : steel
• Energy Efficiency Optimized : False
• Main Type : Main Lugs
• Material : aluminium: busbar
• Meter Socket Type : ringless
• Number Of Jaws : 5
• Number Of Meter Sockets : 3
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Mounting : surface
• Product Or Component Type : Meter Center
• Range Of Product : Meter-Pak
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 406 kg CO2 eq.
• Wiring Configuration : 3-wire
• Database Version : 2024-01
• Data Source : extrapolated product
• Certificate Agency : UL Listed
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8537109150
• Warranty In Months : 18
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Recyclability Potential In % : 97
• Pep End Of Validity Date Calculated : 2030-09-30
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 405.8971547031404
• Environmental Disclosure : ENVPEP2509015EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 3R
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2509015EN
• Pep Verification Date : 2025-09-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Meter Center
• Range Of Product : Meter-Pak
• Output Attributes
• Bypass Type : horn bypass
• Specifications
• Country of Origin : Mexico
• Weight : 41730 g
