SQUARE D

Meter accessory, hub, 2.50 in wire size, Series A, rainproof, 3.31 in

RAINTIGHT METERING HUB 2-1/2

SQDA250 A250 785901029526
54.07 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter accessory, hub, 2.50 in wire size, Series A, rainproof, 3.31 in-2
  • Cable Entry: 2.5 in
  • Depth: 3.3 in
  • Height: 1.2 in
  • Warranty Length: 18 mth
  • Width: 3.3 in

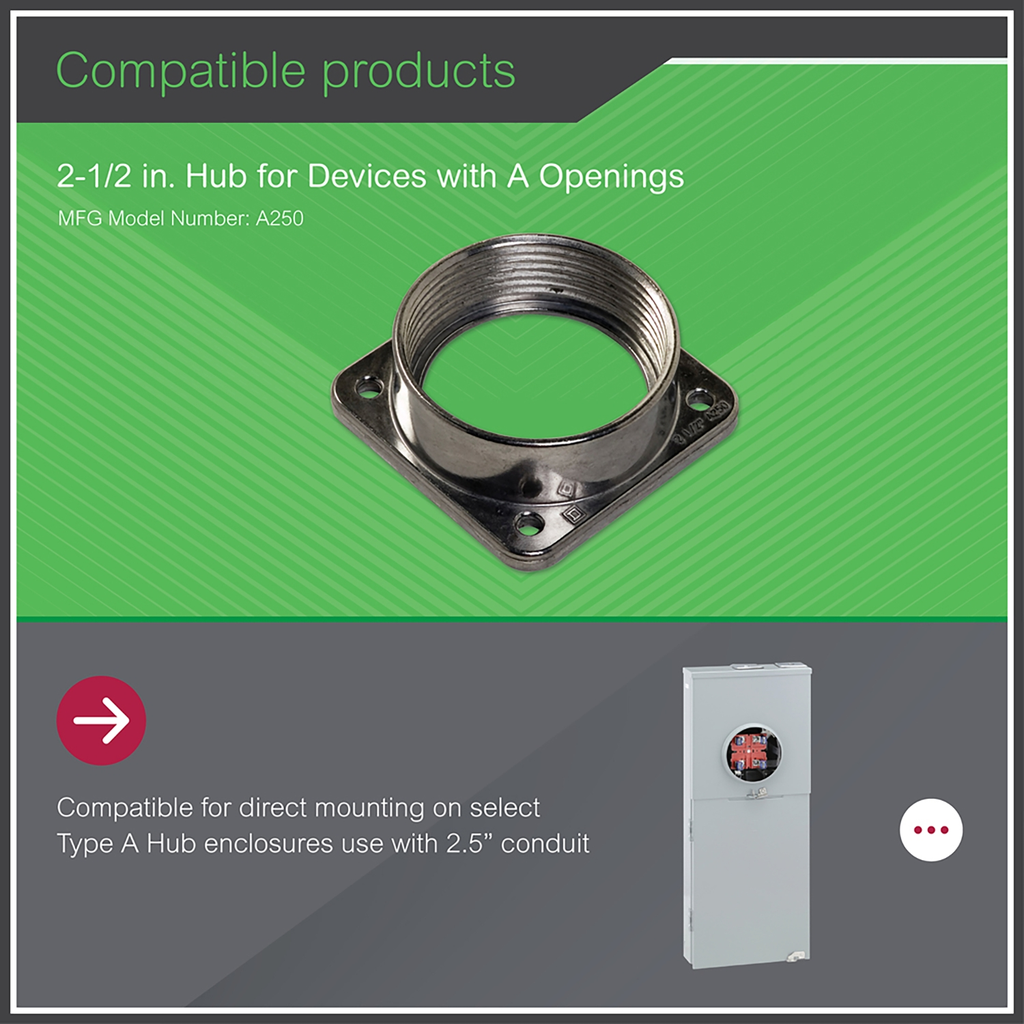

Individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. This bolt on hub has a 2.50 inch conduit for use on enclosures that require A hubs. Hub is fastened to the enclosure with four 12-24 x 1/2 inch slotted hex washer head screws. This hub is rainproof and measures at 3.31 inches tall, 3.31 inches wide and 1.03 inches deep. Hub is UL Listed.
QTY
  • Product Description
  • Specifications
Individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. This bolt on hub has a 2.50 inch conduit for use on enclosures that require A hubs. Hub is fastened to the enclosure with four 12-24 x 1/2 inch slotted hex washer head screws. This hub is rainproof and measures at 3.31 inches tall, 3.31 inches wide and 1.03 inches deep. Hub is UL Listed.
  • Complementary
    • Product Certifications : UL Listed
    • Height : 1.2 in
    • Mounting Support : direct mounting on box
    • Product Destination : conduit entry
    • Cable Entry : conduit entry 2.5"
    • Number Of Mounting Holes : 4
    • Hub Type : A
    • Width : 3.3 in
    • Depth : 3.3 in
    • Device Composition : adaptor plate
    • Shape Of Screw Head : slotted hexagonal
  • Specifications
    • Country of Origin : Mexico
    • Width : 3.3 in
    • Height : 1.2 in
    • Range Of Product : Series A
    • Product Or Component Type : conduit entry || hub
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Take-Back : No
    • Eu Rohs Directive : Under investigation
