SQUARE D

Meter Socket, Ganged, 100 A, 600 V, 1 phase, 3 wire, 2 sockets, 4 jaws, NEMA 3R

MTR SKT 2 GANG 100A HCP

SQD1009693 1009693 785901547075
751.28 / EACH
http://schema.org/OutOfStock

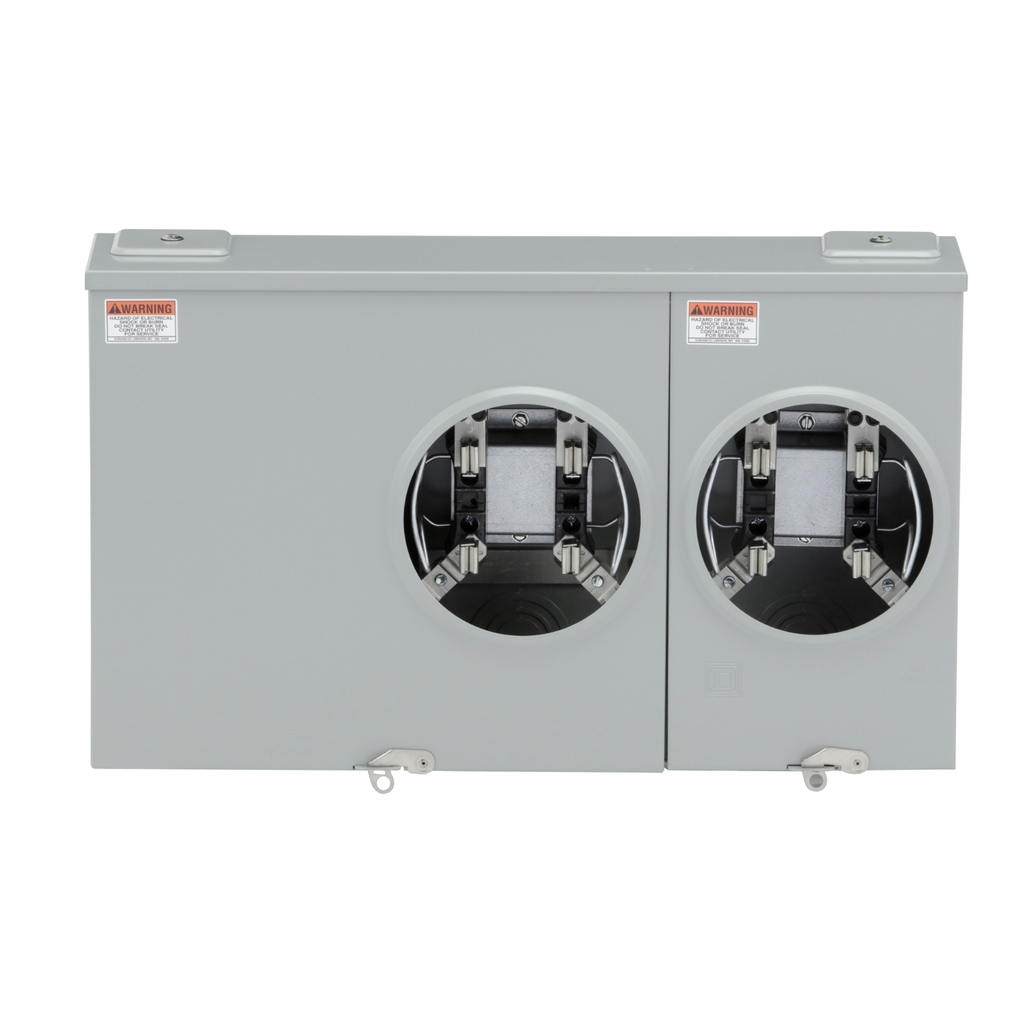

Mayer-DDS-Meter Socket, Ganged, 100 A, 600 V, 1 phase, 3 wire, 2 sockets, 4 jaws, NEMA 3R-2
  • Country of Origin: USA
  • Number of Jaws: 4 Without Jaw Release
  • Warranty Length: 18 mth
Square D Horizontal Ganged Meter Sockets provide 10 kA RMS short circuit protection. These meter sockets are UL Listed and with a NEMA 3R enclosure. Each unit is supplied with ground lugs and a hub opening in the top end wall. This specific meter socket is rated at 100 A, 600 V, and 1 PH. This system is configured with 3 wire, 2 sockets, and 4 jaws.
QTY
  • Product Description
  • Features
  • Specifications
Square D Horizontal Ganged Meter Sockets provide 10 kA RMS short circuit protection. These meter sockets are UL Listed and with a NEMA 3R enclosure. Each unit is supplied with ground lugs and a hub opening in the top end wall. This specific meter socket is rated at 100 A, 600 V, and 1 PH. This system is configured with 3 wire, 2 sockets, and 4 jaws.
  • Features
    • Type T units are designed for the global market and are the best choice when size and cost are of concern
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Line Rated Current : 100 A
    • Ue Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Service Feed Location : UG, OH
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-06-10
    • Return Indicator : Y
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Persona Type Ids : LC
    • Persona Type Names : Contractor
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Awg Gauge : 6 AWG...250 kcmil (aluminium/copper) main lugs8 AWG...2/0 AWG (aluminium/copper) branch lugs
    • Energy Efficiency Optimized : False
    • Hub Type : A ACP closing plate
    • Meter Socket Type : ringless
    • Number Of Jaws : 4 without jaw release
    • Number Of Meter Sockets : 2
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Certificate Agency : UL Listed
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8538100000
    • Warranty In Months : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : no bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
