SQUARE D

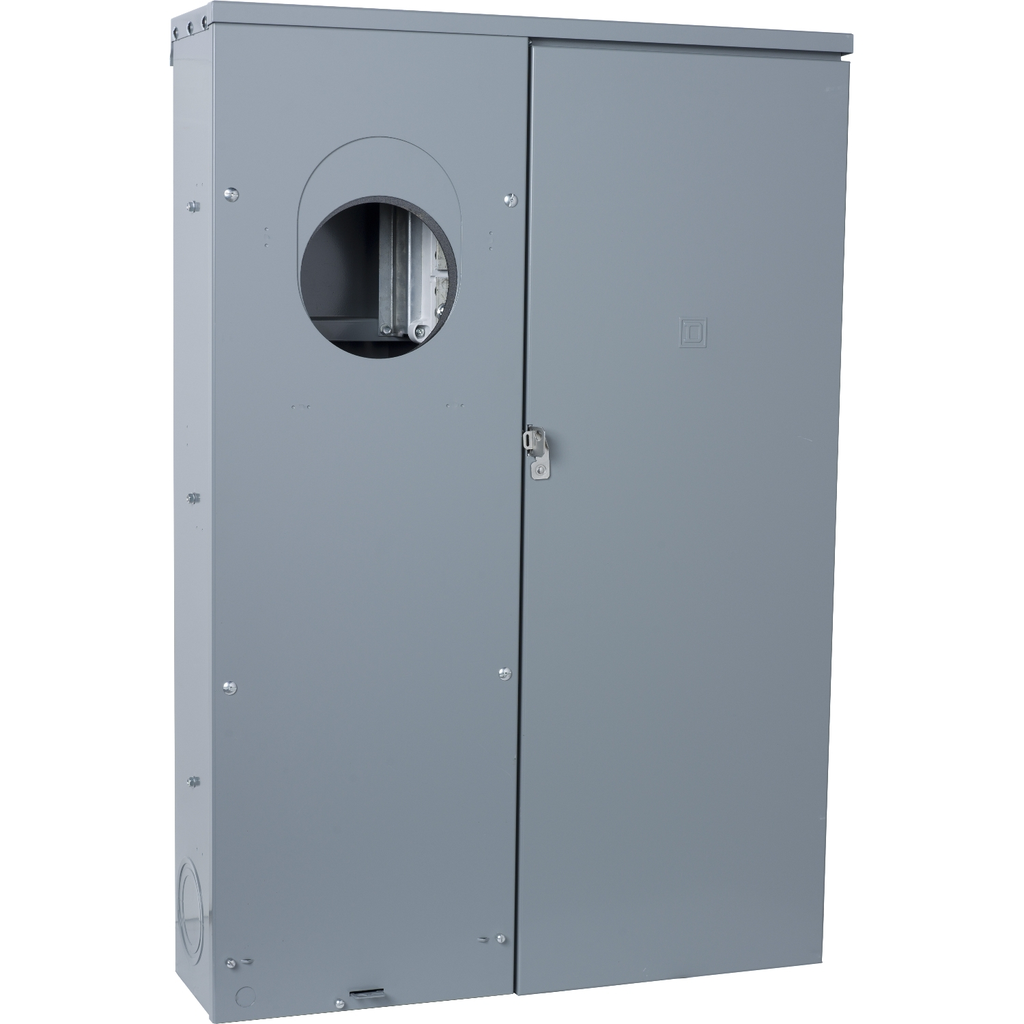

Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

METER MAIN RINGLESS UG 400A

SQDQU816D400CLX QU816D400CLX 785901299400
4138.81 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass-2
  • Country of Origin: Mexico
  • Depth: 7.87 in
  • Height: 43.00 in
  • Number of Circuits: 16
  • Number of Spaces: 8
  • Warranty Length: 18 mth
  • Width: 28.25 in
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect b
QTY
  • Product Description
  • Features
  • Specifications
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect b
  • Prop 65
    • WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • studs, line side
    • feed-thru lugs, service ground
  • Accessories
    • FK400
    • OCK400
    • A200L
    • HEPD80
    • A250L
    • A300L
  • Persona Type Names
    • End User
    • Contractor
  • Persona Type Ids
    • EU
    • LC
  • AWG Gauge
    • AWG 4...250 kcmil aluminium/copper)service ground
  • Product Certifications
    • UL E-6294
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 200 A
    • Bus Rated Current : 200.0 A
    • Line Rated Current : 400 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : QO ringless meter mains support standard utility meters and a main disconnect breakers
    • B2B Bullet Point 2 : This single compact solution provides a time and space saving solution for contractors and installers
    • B2B Bullet Point 3 : Suitable for use as service entrance equipment
    • B2B Bullet Point 4 : CSED allows for the meter socket to integrate with the load center into one compact design
    • B2B Bullet Point 5 : Product conforms to the electrical characteristics per UL and ANSL standards
    • B2B Bullet Point 6 : UL listed and ANSI certified
    • B2B Bullet Point 7 : California residents see Prop 65 WARNINGS
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-31
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2534
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : False
    • Hub Type : A-L
    • Meter Socket Type : ringless
    • Network Number Of Phases : 1
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Number Of Tandem Circuit Breakers : 8
    • Package Weight Lbs : 52.163 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Meter Mains
    • Range Of Product : QO
    • Returnability : No
    • Service Feed Location : UG
    • Short Circuit Current : 25 kA
    • Sustainable Packaging : No
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : Meter Mains
    • Range Of Product : QO
  • Output Attributes
    • Bypass Type : lever bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=361687&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 43.00 in
    • Width : 28.25 in
    • Depth : 7.87 in
