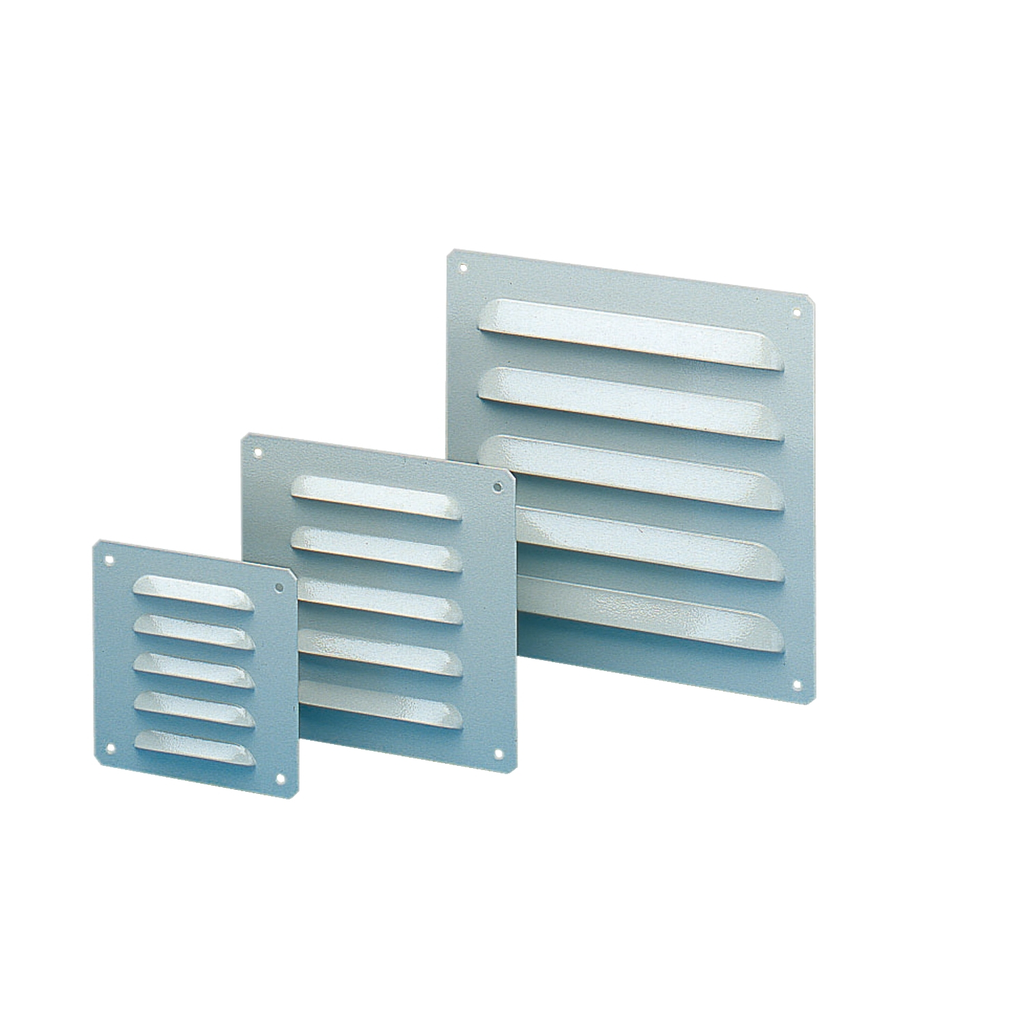

ClimaSys CA metal outlet grille. 169 x 190 mm cut-out. External is 220 x 220 mm. Thermal management accessory. Metal louvre plate. Mounting on sides of enclosure, fixing mode by screws. Steel made, epoxy-polyester powder finish. Grey RAL 7035. IP23 Protection.

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000106_3D-CAD&p_File_name=MCADUE0000106_2D-top.dxf
• Physical Attributes
• Color : Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 2.873629622308562, 3 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 2.6575008566209664
• Carbon Footprint Of The Installation Phase A5 : 0.4276053223605556, 0.4 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 8 kg CO2 eq., 8.177551635837819
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : Metal outlet grille cut-out 104x80mm ext dim 120x120mm IP23
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Global Commercial Status : Commercialised
• Return Indicator : N
• Stocking Flag : Y
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Cut Out Dimensions : 170 x 190 mm
• Device Composition : 1 metal louvre
• Energy Efficiency Optimized : False
• Fixing Mode : by screws
• Material : steel
• Mounting Location : sides of enclosure
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Name : ClimaSys CA
• Product Or Component Type : metal louvre plate
• Range : ClimaSys
• Returnability : No
• Software Version : v6.2.5-6
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
• Accessory Separate Part Category : thermal management accessory
• Accessory Separate Part Destination : ClimaSys ventilation system
• Pep Code : ENVPEP2012014_V2
• Database Version : 2024-01
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0008-ed3-EN-2023 10 19
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; France, FR
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; High voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Height Nominal : external: 220 mm
• Height Useful : external: 220 mm
• Width Nominal : external: 220 mm
• Width Real : external: 220 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 14.136287437127903
• Environmental Disclosure : ENVPEP2012014_V2
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP23
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2012014_V2
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0008-ed3-EN-2023 10 19
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : metal louvre plate
• ETIM
• ETIM 8 : EC000331
• ETIM 9 : EC000331
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 8.66 in
• Width : 8.66 in
• Country of Origin : United States
