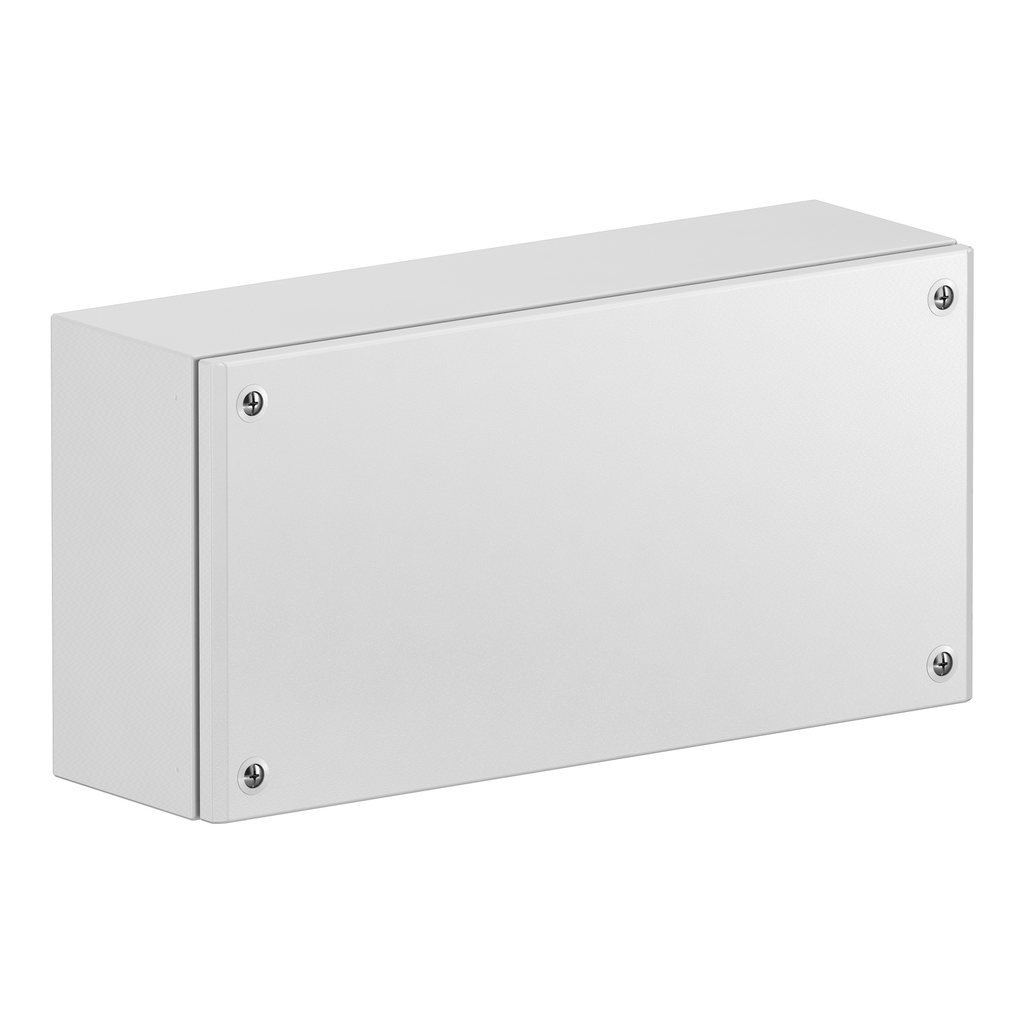

Industrial box for Spacial SBM. Multi purpose. 200 x 500 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=UE_CAD_STP_nsysbm205012
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002572_3D-CAD&p_File_name=MCADUE0002572_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc
• IP Degree Of Protection
• IP66 IEC 60529
• Carbon Footprint Of The Installation Phase A5
• 0.5228402602411384
• 0.5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 10 kg CO2 eq.
• 10.329242087472723
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 20 kg CO2 eq.
• 19.97840021017232
• Removable Parts
• cover by captive screws
• Lock Type
• captive screw PZ2 outside sealed area
• Accessories
• NSYMM25SB
• NSYAMRD50357SB
• NSYSFPSC50
• NSYAEFPFSB
• NSYAMFSB
• NSYAEDHSB
• NSYAEDSBSB
• NSYAEDSTSB
• NSYPPSB
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 cover
• 1 body
• 6 cover screw
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 8.42173882388807
• 8 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• Gray RAL 7035)

• Physical Attributes
• Enclosure Nominal Height : 200 mm
• Enclosure Nominal Width : 500 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 7/10/2025
• Manufacturing Carbon Footprint : 19.97840021
• Distribution Carbon Footprint : 8.421738824
• Installation Carbon Footprint : 0.52284026
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 10.32924209
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1910
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Cover Fixing : half turn metal screw
• Device Short Name : SBM
• Enclosure Mounting : wall mounted
• Energy Efficiency Optimized : FALSE
• Material : sheet steel
• Package Weight Lbs : 4.242 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : industrial box
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 39 kg CO2 eq.
• Type Of Front Cover : plain door
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 39.25222138
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP121023EN
• Pep Verification Date : 9/1/2024
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 4242
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 0
• Energy Model Manufacturing A1 A3 : France, FR
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Recyclability Potential In : 96
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.138150741
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.065671678
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.034586316
• Acidification Ap Mole Of H Equiv Installation A5 : 0.001467732
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.036425016
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.081253113
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.352234036
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.273102722
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.02364144
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.055489874
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.087871247
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 38.89998713
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 19.70529749
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 8.421738824
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.499198805
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 10.27375201
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -13.8412034
• Climate Change Total Kg Co2 Eq Total Life Cycle : 39.25222138
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 19.97840021
• Climate Change Total Kg Co2 Eq Distribution A4 : 8.421738824
• Climate Change Total Kg Co2 Eq Installation A5 : 0.52284026
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 10.32924209
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -13.92907465
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000352982
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000352558
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 7.20448E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 1.45236E-08
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 4.08517E-07
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.004192056
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 1621.999497
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 785.9372498
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 104.2866889
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 4.937088062
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 726.8384699
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -312.7402889
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 272.4364545
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 72.55042595
• Ecotoxicity Fresh Water Ctue Distribution A4 : 34.34898188
• Ecotoxicity Fresh Water Ctue Installation A5 : 5.871872708
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 159.6651739
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -236.2548664
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 7.97608E-07
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 4.99631E-07
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 9.52256E-08
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 8.94775E-09
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 1.93803E-07
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -7.38733E-06
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.059342908
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00515521
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.020301657
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.033886041
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 4.745E-05
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 2.18713E-05
• Freshwater Eutrophication Kg P Eq Distribution A4 : 9.8142E-07
• Freshwater Eutrophication Kg P Eq Installation A5 : 1.17207E-05
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 1.28766E-05
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -2.81421E-05
• Hazardous Waste Disposed Of Kg Total Life Cycle : 7.161386959
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 7.14181583
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.006944065
• Hazardous Waste Disposed Of Kg Installation A5 : 0.012398869
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.000228195
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -330.9046062
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 2.92075E-06
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 2.86339E-06
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 1.23446E-10
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 5.6169E-08
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.06991E-09
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -4.86333E-05
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 5.79105E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 3.41168E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 1.9467E-08
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 2.11688E-09
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 2.16353E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -7.91977E-07
• Impacts Related To Land Use Soil Quality Total Life Cycle : -10.71945737
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : -11.13585957
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0.089767796
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.326634406
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.010886989
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 1.134512592
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1.02489244
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.018582531
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.079204465
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.011833155
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -2.920018929
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.036969032
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.012876813
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.01573789
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.000636078
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00771825
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.008457721
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 3.984340031
• Materials For Recycling Kg Manufacturing A1 A3 : 0.513871801
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.007911077
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 3.462557154
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.287097857
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.188052529
• Net Use Of Fresh Water M3 Distribution A4 : 0.009900449
• Net Use Of Fresh Water M3 Installation A5 : 0.00134544
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.087799439
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.131764254
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 2.198230654
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.759599567
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.008530683
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.226253113
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.203847292
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -11.09198198
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 7.52995E-06
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.23538E-07
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 7.39628E-06
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 6.8363E-09
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 3.29434E-09
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -1.98382E-06
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.132863595
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.046424811
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.056909587
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.001018763
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.028510433
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.032993221
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.002854371
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.001132479
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.001666384
• Radioactive Waste Disposed Of Kg Installation A5 : 2.76694E-05
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 2.78382E-05
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.004992224
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.396400117
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.137119094
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.17070926
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.004443773
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.084127991
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.096130899
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.40049897
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.40049897
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.371820614
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1636.034124
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 799.2942515
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 104.2873707
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 5.586433115
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 726.8660687
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -320.4568985
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 14.03462731
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.35700168
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000681809
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.649345053
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.02759876
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -7.716609637
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.40049897
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.40049897
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.371820614
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1619.598998
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 783.5367509
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 104.2866889
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 4.937088062
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 726.8384699
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -312.3684683
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 11.03294195
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 11.03294195
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -6.869189203
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.001685361
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.324059739
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000681809
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.649345053
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.02759876
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.847420434
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 12.33072627
• Water Use M3 Eq Manufacturing A1 A3 : 8.076740721
• Water Use M3 Eq Distribution A4 : 0.42522427
• Water Use M3 Eq Installation A5 : 0.057775383
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0
• Water Use M3 Eq End Of Life C1 C4 : 3.7709859
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -5.658681586
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : industrial box
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=173849462&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 39.25222138
• Environmental Disclosure : ENVPEP121023EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP121023EN
• Pep Verification Date : 9/1/2024
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : India
