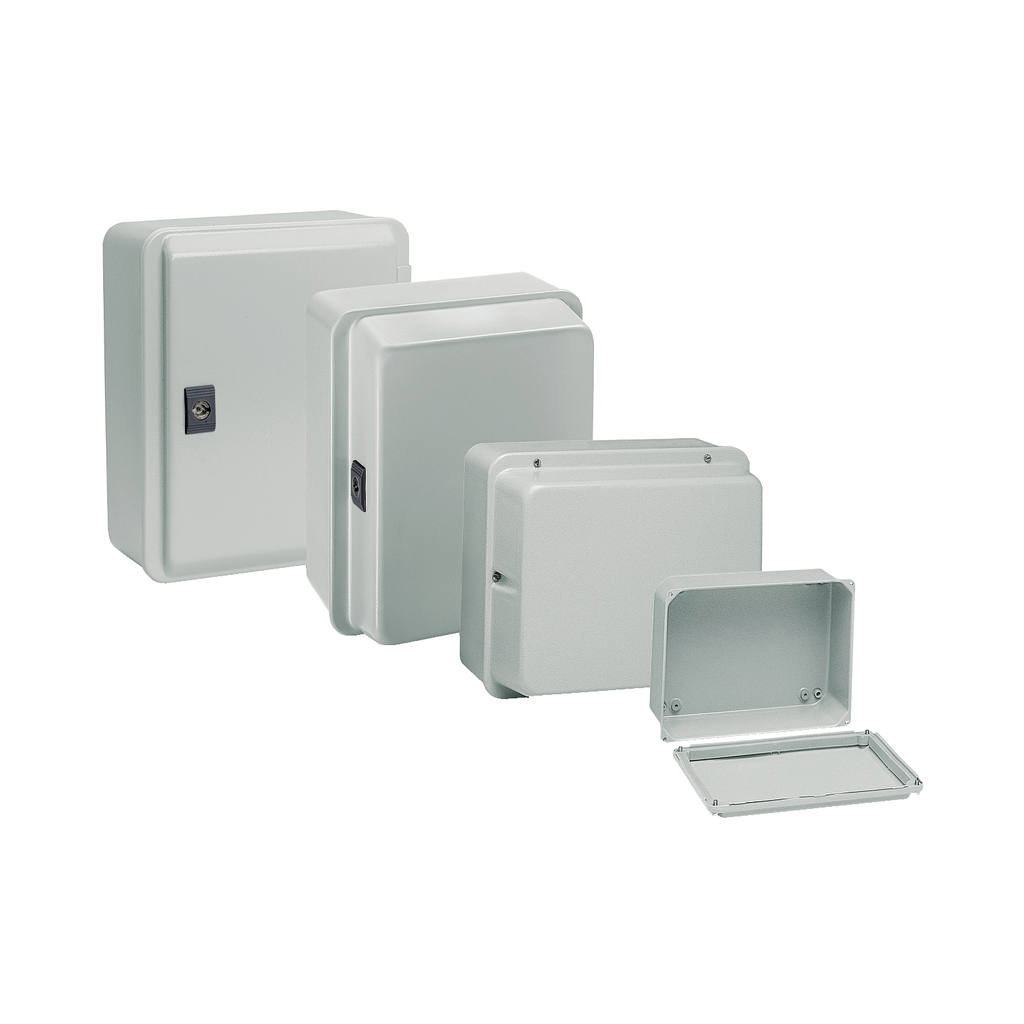

Metal industrial box - low plain cover - H206xW156xD83 - IP55 - grey RAL 7035

METAL INDUSTRIAL BOX - LOW PLA

SQDNSYDBN2015 NSYDBN2015 3606480187858
17.58 / EA
http://schema.org/OutOfStock
Mayer-DDS-Metal industrial box - low plain cover - H206xW156xD83 - IP55 - grey RAL 7035-1
  • Enclosure Height: 206 mm
  • Enclosure Type: Empty Enclosure
  • Enclosure Width: 156 mm
  • Finish: Epoxy-Polyester Powder
  • Material: Steel
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Features
    • Back ready for threaded drill holes for fixing equipment
    • Holes heightened for internal fixation of accessories
    • Without knock-outs
    • Maximal space inside
    • Ingress protection IP55
  • Physical Attributes
    • Color : Light gray RAL 7035)
    • Enclosure Nominal Height : 206 mm
    • Enclosure Nominal Width : 156 mm
  • Conformance Attributes
    • Standards : IEC 62208
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : 1 body, 1 cover, 1 cover screw
    • Carbon Footprint Of The Distribution Phase A4 : 1.870173967963829, 2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 2.2937638016028536
    • Carbon Footprint Of The Installation Phase A5 : 0.11610455566882423, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 4.436504714281548
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Cover Fixing : screw
    • Device Application : multi-purpose
    • Enclosure Mounting : wall mounted
    • Enclosure Type : empty enclosure
    • Energy Efficiency Optimized : False
    • Material : steel
    • Package Weight Lbs : 942.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : junction box
    • Range : PanelSeT
    • Range Of Product : PanelSeT SDB
    • Returnability : No
    • Surface Finish : epoxy-polyester powder
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 9 kg CO2 eq.
    • Type Of Front Cover : low plain cover
    • Medium Desc : Metal industrial box - low plain cover - H206xW156xD83 - IP55 - grey RAL 7035
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1210023EN
    • Database Version : 2023-02
    • Pep Verification Date : 2024-09-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : France, FR
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 8.716547039517053
    • Environmental Disclosure : ENVPEP1210023EN
    • IP Degree Of Protection : IP55 IEC 60529
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1210023EN
    • Pep Verification Date : 2024-09-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : junction box
    • Range Of Product : PanelSeT SDB
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
