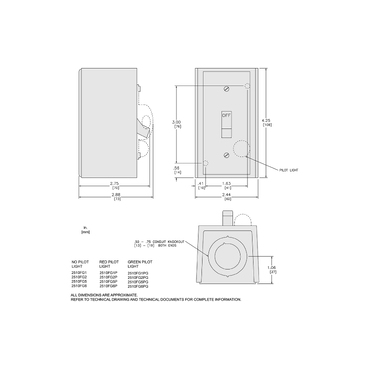

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.79 lb. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05
• Complementary Attributes
• Maximum Horse Power Rating : 1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC
• Line Rated Current : 16 A
• Ue Rated Operational Voltage : 277 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.10487359738208811, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.6 kg CO2 eq., 0.5665366456515184
• Carbon Footprint Of The Installation Phase A5 : 0.043418884424438434, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 2.1267191686946356
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 kg CO2 eq., 4.430371808898552
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-25
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Awg Gauge : AWG 14...AWG 12 copper
• Cable Entry : 0.5" and 0.75" knock-outs (top and bottom)
• Control Type : toggle switch
• Electrical Connection : screw clamp terminals
• Energy Efficiency Optimized : False
• Local Signalling : red indicator
• Motor Starter Type : non reversing
• Phase : 1 phase
• Poles Description : 1P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Single Unit Manual Starter
• Range Of Product : F
• Reset : manual
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Thermal Overload Type : melting alloy
• Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
• Warranty In Months : 18
• Pep Code : ENVPEP2507018EN
• Database Version : 2024-01
• Pep Verification Date : 2025-09-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 362.9
• Reference Lifetime In Y2 : 20
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Recyclability Potential In 2 : 74
• Offer Owner Code : 190788
• Height Nominal : 4.25 in
• Width Nominal : 2.44 in
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 7.271920105051232
• Environmental Disclosure : ENVPEP2507018EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 1 Plastic standard size
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2507018EN
• Pep Verification Date : 2025-09-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Single Unit Manual Starter
• Range Of Product : F
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Depth : 2.75 in
