SQUARE D

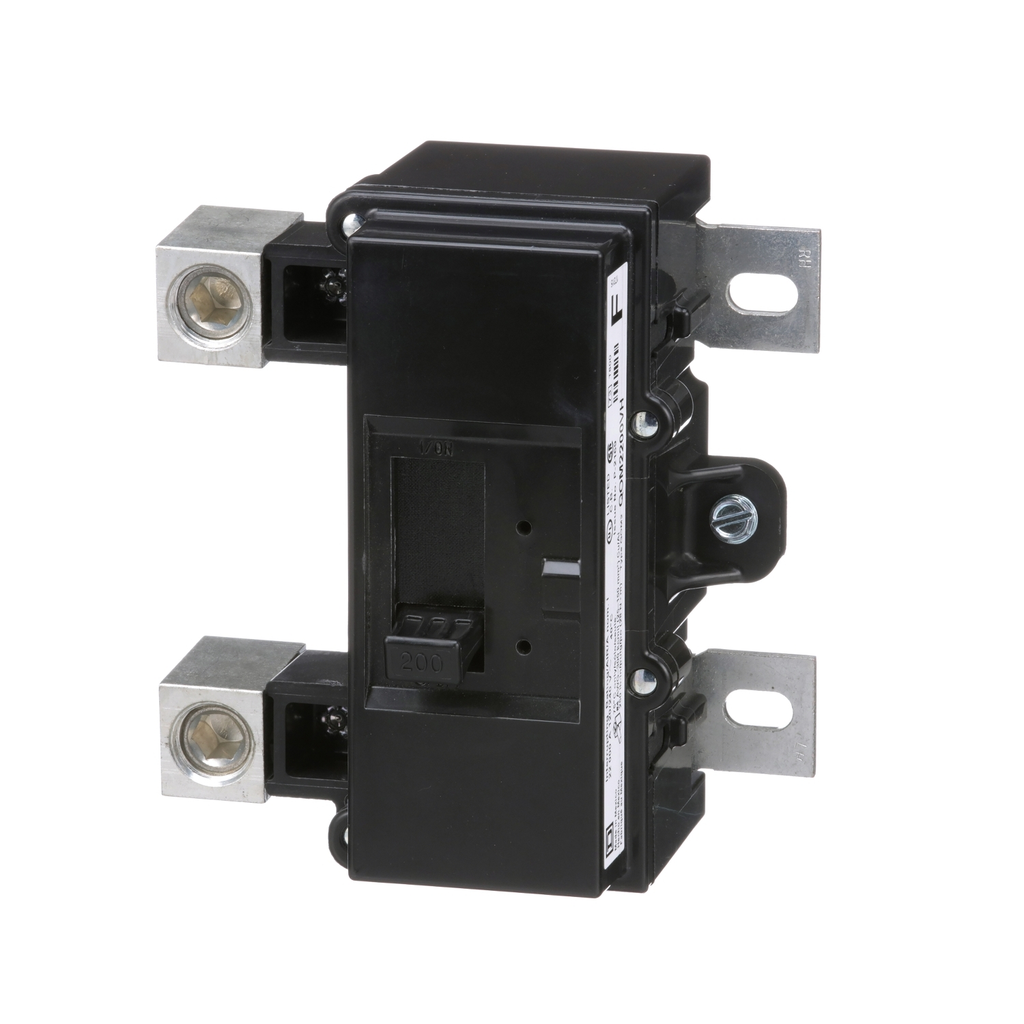

Main breaker, QO, 200A, 2 pole, 120/240 VAC, 22 kA, bolt on mount

BREAKER - 200A MAIN

SQDQOM2200VH QOM2200VH 785901004066
146.45 / EACH
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 5.07 in
  • Height: 5.6 in
  • Line Rated Current: 200 A
  • Mounting Type: Bolt-On
  • Number of Phases: 1
  • Short Circuit Current: 22 kA
  • Width: 3.6 in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QOB miniature breaker is rated as 200 A, 120/240 V, and 2 pole. This unit can be used as a main breaker with 22 kA breaking capacity and bolt on mounting. A full line of factory installed accessories is also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Product Description
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QOB miniature breaker is rated as 200 A, 120/240 V, and 2 pole. This unit can be used as a main breaker with 22 kA breaking capacity and bolt on mounting. A full line of factory installed accessories is also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
  • Phase : 1 phase
  • Line Rated Current : 200 A
  • Device Short Name : QOM2
  • Short-Circuit Current : 22 kA
  • Maximum Width : 3.6 in
  • Poles Description : 2P
  • Product Destination : QO load center || Homeline load center
  • Awg Gauge : AWG 4...300 kcmil aluminium/copper
  • Electrical Connection : lugs
  • Range Of Product : QO
  • Load Center Type : main breaker
  • Mounting Mode : bolt-on
  • Tightening Torque : 6-6 N.m 4-65 mm² AWG 12...AWG 2/0)
  • Breaking Capacity : 22 kA 120/240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
  • Ambient Air Temperature For Operation : 40 °C
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC
  • Maximum Depth : 5.07 in
  • Product Certifications : UL Listed || CSA
  • Maximum Height : 5.6 in
  • Circuit Breaker Type : standard
  • Product Or Component Type : circuit breaker
