SQUARE D

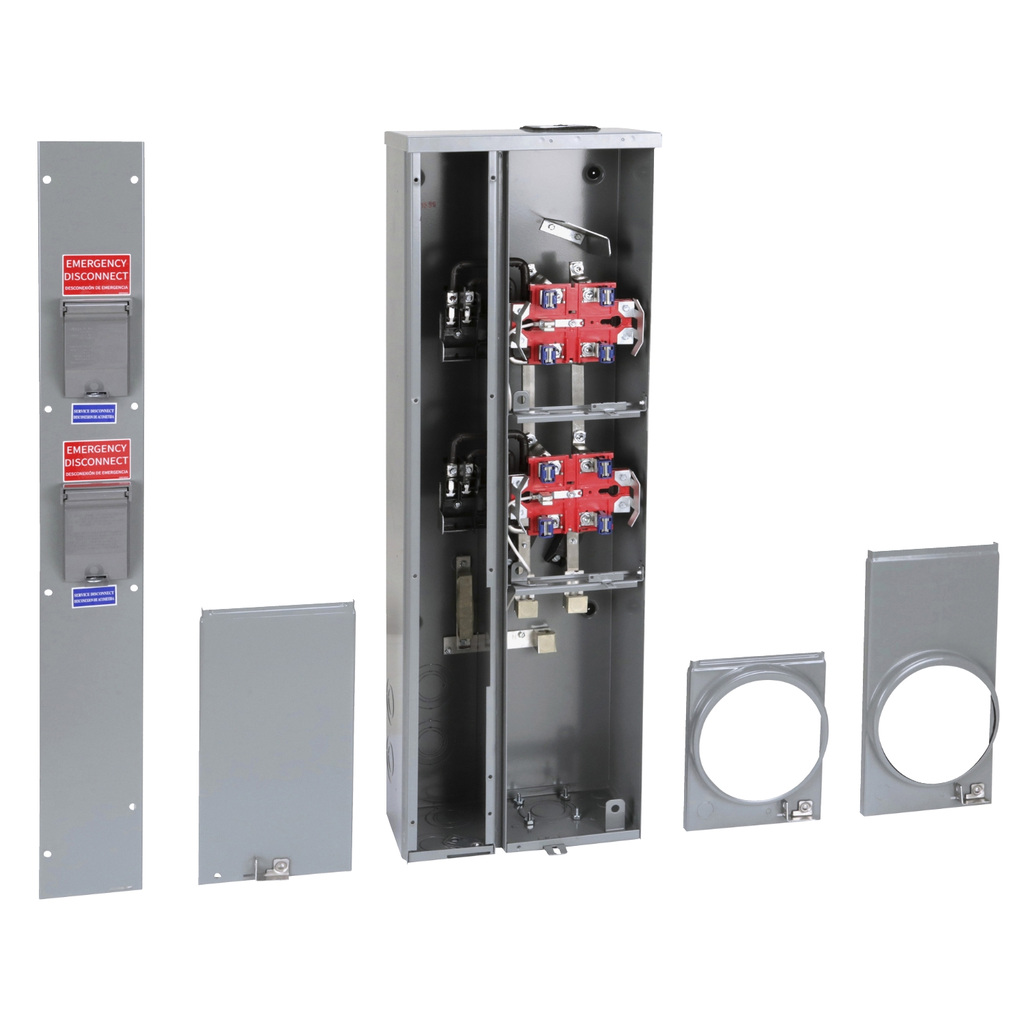

MP Meter Pak, meter center, two ringless sockets, no bypass, 5th jaw, OH, UG, 200 A bus, 125 A, 240 VAC single phase 3W

MTR MP DEVICE RINGLESS 125A 2

SQDMPR22125 MPR22125 785901208051
561.67 / EACH
  • Country of Origin: Mexico
  • Depth: 184.91 mm, 7.28 in
  • Enclosure: 3R
  • Enclosure Material: Steel
  • Height: 37.50 in, 952.50 mm
  • Number of Phases: 1
  • Warranty Length: 18 mth
  • Width: 12.28 in, 311.91 mm
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPR meter center has two ringless sockets with a no bypass and a 5th jaw. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 200 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 37.50 inches tall, 12.28 inches wide and 7.28 inches deep. This MPR meter center with accept 4 AWG to 250 kcmil copper or aluminum wire. This MPR meter center unit is UL Listed.
  • Product Description
  • Specifications
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPR meter center has two ringless sockets with a no bypass and a 5th jaw. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 200 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 37.50 inches tall, 12.28 inches wide and 7.28 inches deep. This MPR meter center with accept 4 AWG to 250 kcmil copper or aluminum wire. This MPR meter center unit is UL Listed.
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Number Of Jaws : 5
    • Socket Rating : 125 A
    • Number Of Meter Sockets : 2
    • Socket Type : Ringless
    • Product : Meter Center
    • Main Type : Main Lugs
  • Ordering And Shipping Details
    • Discount Schedule : DE4
    • GTIN : 00785901208051
    • Country Of Origin : MX
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
    • Category : 00021 - METER-PAK
  • Offer Sustainability
    • REACh Free Of SVHC : Yes
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Compliant
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
  • Complementary
    • Busbar Material : Aluminium: busbar
    • Height : 37.50 in (952.50 mm)
    • Depth : 7.28 in (184.91 mm)
    • Mounting : Surface
    • Bypass Type : No bypass
    • Width : 12.28 in (311.91 mm)
    • Wire Configuration : 3-wire
    • Phase : 1 phase
    • Type : Meter-Pak
    • Wire Size : AWG 4...250 kcmil 1 aluminium || AWG 4...250 kcmil 1 copper
    • Main Rating : 200 A
    • Service Feed Location : UG || OH
    • Certifications : UL Listed
    • Bus Rating : 200 A
    • Maximum Voltage Rating : 240 V AC
    • Enclosure Material : Steel
    • Enclosure Rating : NEMA 3R
