SQUARE D

Meter center, MP Meter-Pak, 2 sockets, lever bypass, jaw release, 5 jaws, 300A bus, 225A max breaker rating, ringless

METERING MP DEVICE RINGLS 225A

SQDMPL32225 MPL32225 785901299622
1369.46 / EACH
http://schema.org/OutOfStock

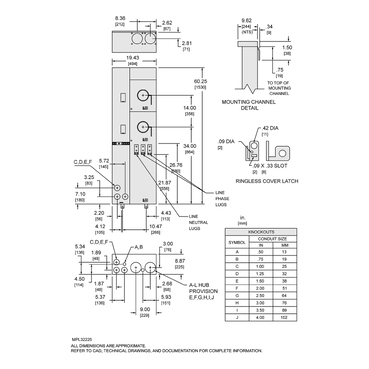

Mayer-DDS-Meter center, MP Meter-Pak, 2 sockets, lever bypass, jaw release, 5 jaws, 300A bus, 225A max breaker rating, ringless-1
  • Country of Origin: Mexico
  • Depth: 9.62 in
  • Enclosure Material: Steel
  • Number of Jaws: 5
  • Warranty Length: 18 mth
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPL meter center has two ringless meter sockets with lever bypass and a 5 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 350 A. The maximum tenant main lugs amperage is 225 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 60.25 inches tall, 19.43 inches wide and 9.62 inches deep. This MPL meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPL meter center unit is UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPL meter center has two ringless meter sockets with lever bypass and a 5 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 350 A. The maximum tenant main lugs amperage is 225 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 60.25 inches tall, 19.43 inches wide and 9.62 inches deep. This MPL meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPL meter center unit is UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Bus Rated Current : 350 A
    • Main Rated Current : 350 A
    • Meter Socket Rated Current : 225 A
    • Ue Rated Operational Voltage : 120/240 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC
    • Persona Type Names : End User, Contractor
    • Awg Gauge : AWG 1/0...600 kcmil 1 aluminium, AWG 1/0...600 kcmil 1 copper
    • Service Feed Location : UG, OH
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Single-phase multi-tenant meter enclosure
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • Product Kit Identifier : N
    • Enclosure Material : steel
    • Energy Efficiency Optimized : False
    • Main Type : Main Lugs
    • Material : aluminium: busbar
    • Meter Socket Type : ringless
    • Number Of Jaws : 5
    • Number Of Meter Sockets : 2
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Mounting : surface
    • Product Or Component Type : Meter Center
    • Range Of Product : Meter-Pak
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Warranty In Months : 18
    • Pep Code : ENVPEP2601015EN
    • Offer Owner Code : 190788
    • Height Nominal : 60.25 in
    • Width Nominal : 19.43 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2601015EN
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Pep Code : ENVPEP2601015EN
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Meter Center
    • Range Of Product : Meter-Pak
  • Output Attributes
    • Bypass Type : lever bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Depth : 9.62 in
