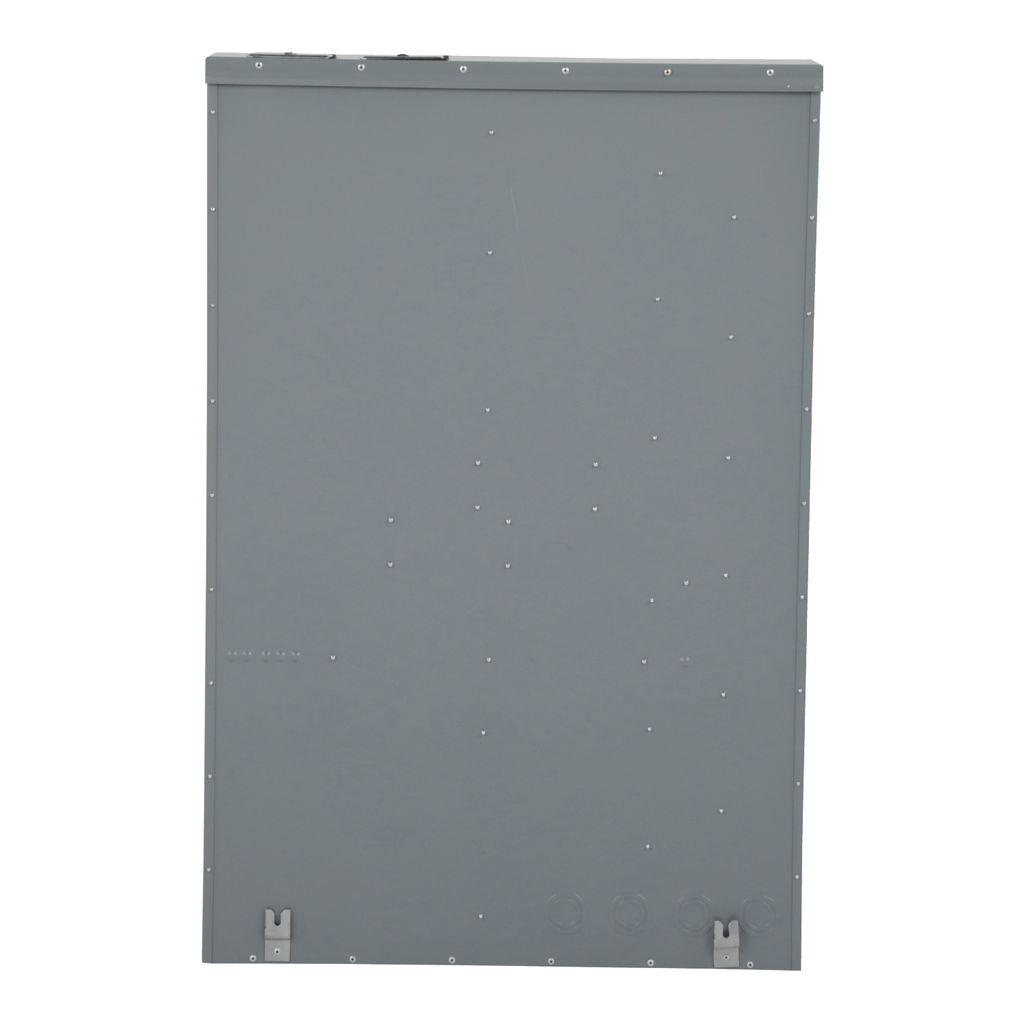

MP Meter Pak, meter center, three ringless sockets, lever bypass, 5th jaw, OH, UG, 500 A bus, 225 A, 240 VAC single phase 3W

MP Meter Pak, meter center, three ringless sockets, lever bypass, 5th jaw, OH, UG, 500 A bus, 225 A, 240 VAC single phase 3W

SQDMPL53225 MPL53225 785901574149
2095.00 / EACH
  • Country of Origin: Mexico
  • Depth: 244.35 mm, 9.62 in
  • Enclosure: 3R
  • Enclosure Material: Steel
  • Height: 1349.25 mm, 53.12 in
  • Number of Phases: 1
  • Warranty Length: 18 mth
  • Width: 35.37 in, 898.40 mm

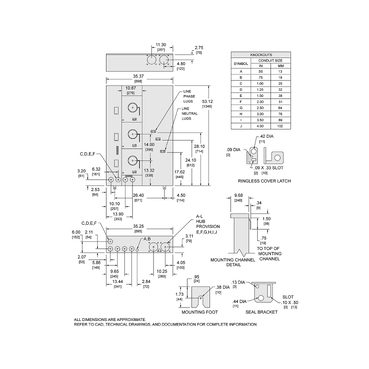

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPL meter center has three ringless meter sockets with lever bypass and a 5 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 500 A. The maximum tenant main lugs amperage is 225 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 53.12 inches tall, 35.37 inches wide and 9.62 inches deep. This MPL meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPL meter center unit is UL Listed.
  • Product Description
  • Specifications
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPL meter center has three ringless meter sockets with lever bypass and a 5 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 500 A. The maximum tenant main lugs amperage is 225 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 53.12 inches tall, 35.37 inches wide and 9.62 inches deep. This MPL meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPL meter center unit is UL Listed.
  • Main
    • Main Type : Main Lugs
    • Number Of Jaws : 5
    • Number Of Meter Sockets : 3
    • Socket Rating : 225 A
    • Socket Type : Ringless
    • Product : Meter Center
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Category : 00021 - METER-PAK
    • GTIN : 00785901574149
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : DE4
    • Country Of Origin : MX
  • Offer Sustainability
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Compliant
    • REACh Free Of SVHC : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Mounting : Surface
    • Depth : 9.62 in (244.35 mm)
    • Service Feed Location : UG || OH
    • Busbar Material : Aluminium: busbar
    • Type : Meter-Pak
    • Enclosure Material : Steel
    • Bus Rating : 500 A
    • Wire Configuration : 3-wire
    • Width : 35.37 in (898.40 mm)
    • Height : 53.12 in (1349.25 mm)
    • Wire Size : AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
    • Phase : 1 phase
    • Maximum Voltage Rating : 240 V AC
    • Enclosure Rating : NEMA 3R
    • Main Rating : 400 A || 500 A
    • Bypass Type : Lever bypass
    • Certifications : UL Listed
