MP Meter Pak, meter center, four ringless sockets, no bypass, 5th jaw, OH, UG, 400 A bus, 125 A, 240 VAC single phase 3W

MP Meter Pak, meter center, four ringless sockets, no bypass, 5th jaw, OH, UG, 400 A bus, 125 A, 240 VAC single phase 3W

SQDMPR44125 MPR44125 785901208075
1361.00 / EACH
  • Country of Origin: Mexico
  • Depth: 184.91 mm, 7.28 in
  • Enclosure: 3R
  • Enclosure Material: Steel
  • Height: 1222.25 mm, 48.12 in
  • Number of Phases: 1
  • Warranty Length: 18 mth
  • Width: 24.34 in, 618.24 mm

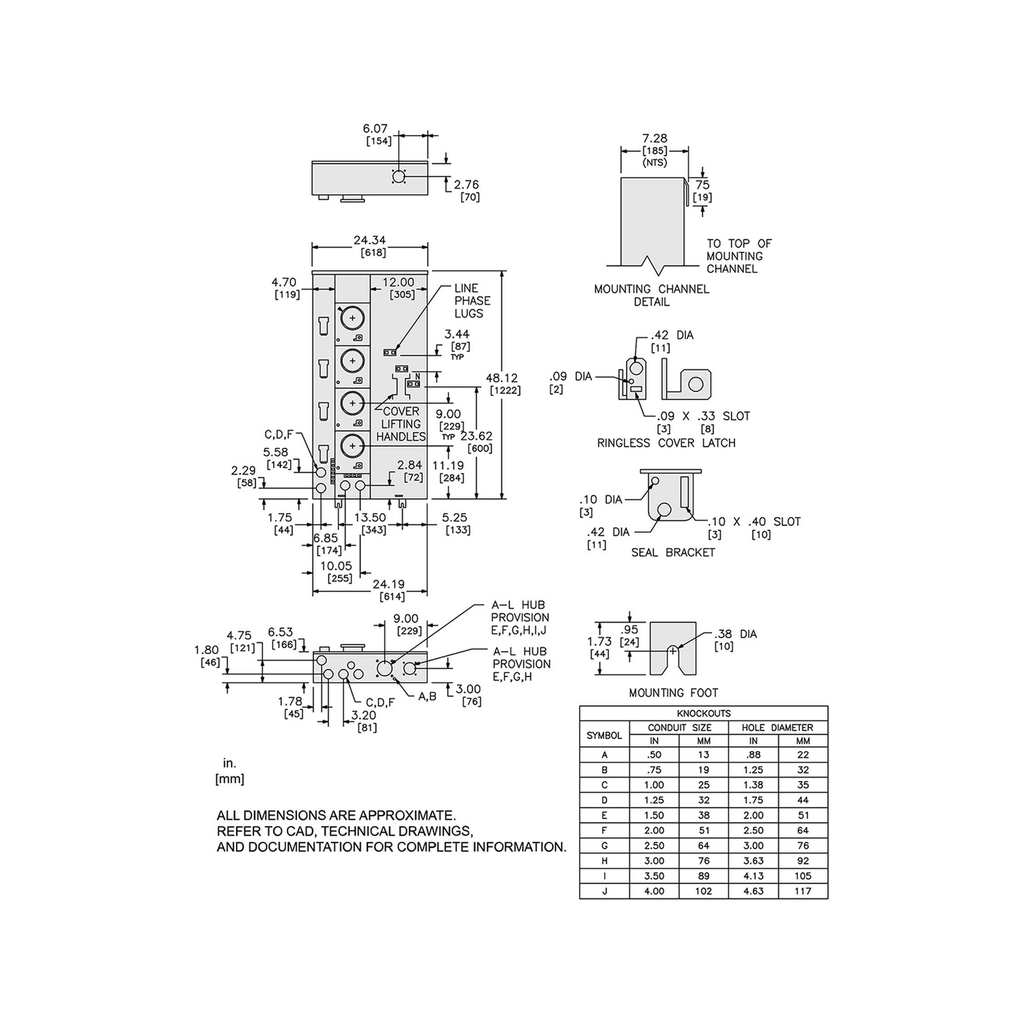

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPR meter center has four ringless sockets with a no bypass and a 5th jaw. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 400 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 24.34 inches wide and 7.28 inches deep. This MPR meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPR meter center unit is UL Listed.
  • Product Description
  • Specifications
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPR meter center has four ringless sockets with a no bypass and a 5th jaw. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 400 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 24.34 inches wide and 7.28 inches deep. This MPR meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPR meter center unit is UL Listed.
  • Main
    • Product : Meter Center
    • Number Of Meter Sockets : 4
    • Socket Rating : 125 A
    • Main Type : Main Lugs
    • Number Of Jaws : 5
    • Socket Type : Ringless
  • Ordering And Shipping Details
    • GTIN : 00785901208075
    • Discount Schedule : DE4
    • Returnability : Yes
    • Category : 00021 - METER-PAK
    • Country Of Origin : MX
    • Nbr. Of Units In Pkg. : 1
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Enclosure Material : Steel
    • Bus Rating : 400 A
    • Service Feed Location : OH || UG
    • Bypass Type : No bypass
    • Depth : 7.28 in (184.91 mm)
    • Busbar Material : Aluminium: busbar
    • Certifications : UL Listed
    • Type : Meter-Pak
    • Width : 24.34 in (618.24 mm)
    • Height : 48.12 in (1222.25 mm)
    • Main Rating : 400 A
    • Wire Size : AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
    • Mounting : Surface
    • Wire Configuration : 3-wire
    • Maximum Voltage Rating : 240 V AC
    • Phase : 1 phase
    • Enclosure Rating : NEMA 3R
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
    • Mercury Free : Yes
    • EU RoHs Directive : Compliant
