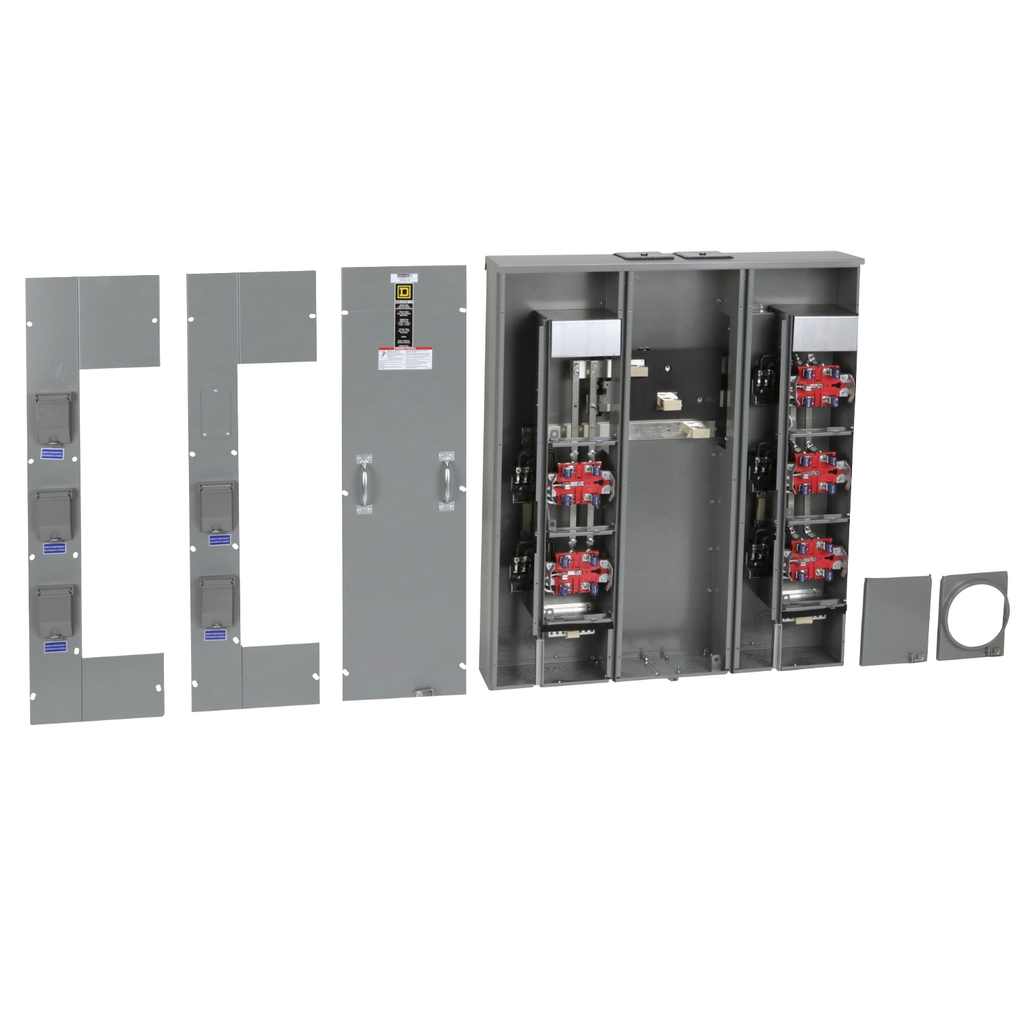

MP Meter Pak, meter center, five ringless sockets, no bypass, 5th jaw, OH, UG, 500 A bus, 125 A, 240 VAC single phase 3W

MP Meter Pak, meter center, five ringless sockets, no bypass, 5th jaw, OH, UG, 500 A bus, 125 A, 240 VAC single phase 3W

SQDMPR55125 MPR55125 785901208082
1717.00 / EACH
  • Country of Origin: Mexico
  • Depth: 184.91 mm, 7.28 in
  • Enclosure: 3R
  • Enclosure Material: Steel
  • Height: 1076.20 mm, 42.37 in
  • Number of Phases: 1
  • Warranty Length: 18 mth
  • Width: 36.46 in, 926.08 mm
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPR meter center has five ringless sockets with a no bypass and a 5th jaw. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 500 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 42.37 inches tall, 36.46 inches wide and 7.28 inches deep. This MPR meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPR meter center unit is UL Listed.
  • Product Description
  • Specifications
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPR meter center has five ringless sockets with a no bypass and a 5th jaw. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 500 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 42.37 inches tall, 36.46 inches wide and 7.28 inches deep. This MPR meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPR meter center unit is UL Listed.
  • Main
    • Product : Meter Center
    • Number Of Jaws : 5
    • Number Of Meter Sockets : 5
    • Socket Type : Ringless
    • Socket Rating : 125 A
    • Main Type : Main Lugs
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Compliant
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
  • Complementary
    • Phase : 1 phase
    • Depth : 7.28 in (184.91 mm)
    • Type : Meter-Pak
    • Height : 42.37 in (1076.20 mm)
    • Mounting : Surface
    • Main Rating : 400 A || 500 A
    • Wire Size : AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
    • Width : 36.46 in (926.08 mm)
    • Bus Rating : 500 A
    • Certifications : UL Listed
    • Enclosure Material : Steel
    • Wire Configuration : 3-wire
    • Service Feed Location : UG || OH
    • Maximum Voltage Rating : 240 V AC
    • Bypass Type : No bypass
    • Busbar Material : Aluminium: busbar
    • Enclosure Rating : NEMA 3R
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Discount Schedule : DE4
    • Returnability : Yes
    • Category : 00021 - METER-PAK
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901208082
    • Country Of Origin : MX
