SQUARE D

Meter center, MP Meter-Pak, 3 sockets, no bypass, 4 jaws, 300A bus, 125A max breaker rating, ringed

METERING MP DEVICE RING 125A 3

SQDMP33125 MP33125 785901001799
1410.42 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter center, MP Meter-Pak, 3 sockets, no bypass, 4 jaws, 300A bus, 125A max breaker rating, ringed-2
  • Certifications: UL
  • Depth: 7.28 in
  • Enclosure Material: Steel
  • Height: 48.12 in
  • Material: Aluminium: Busbar
  • Number of Phases: 1
  • Warranty Length: 18 mth
  • Width: 24.34 in

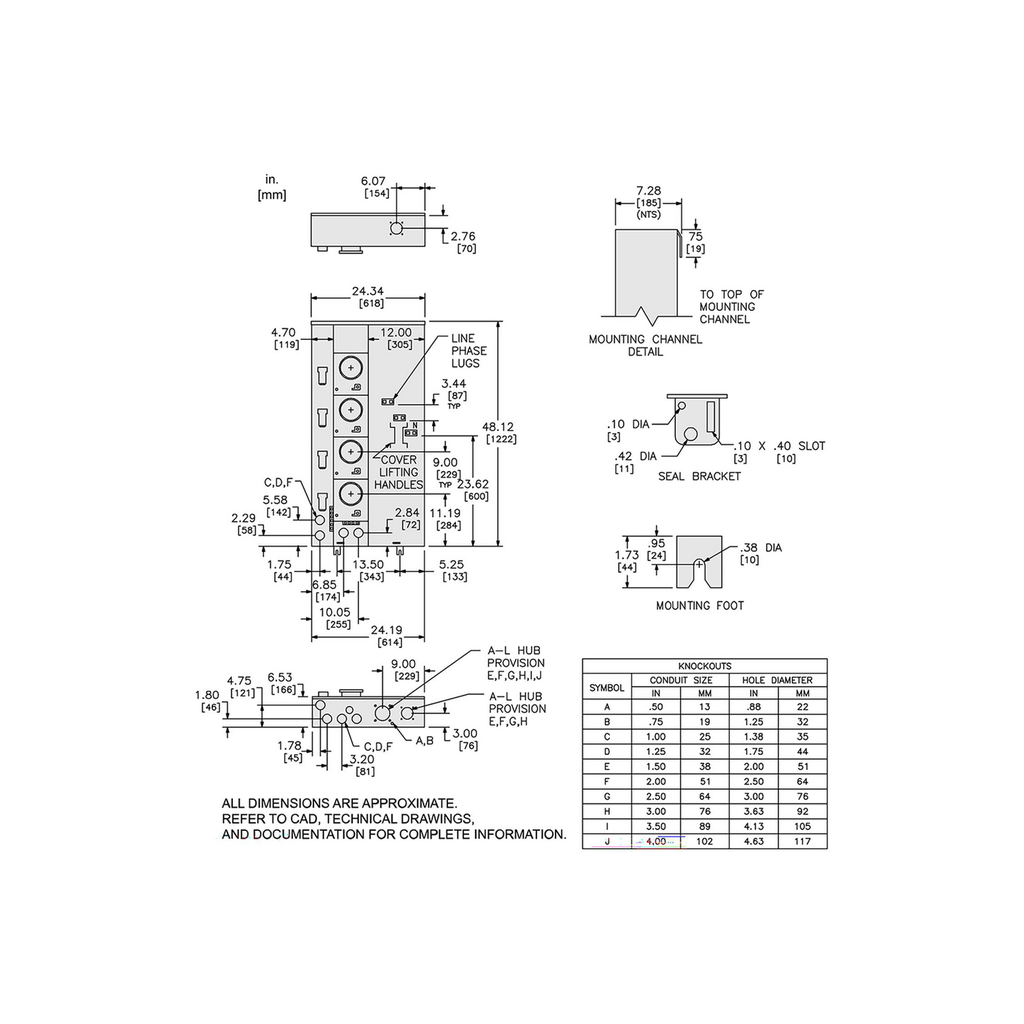

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center has three ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 300 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 24.34 inches wide and 7.28 inches deep. This MPH meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.
QTY
  • Product Description
  • Specifications
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center has three ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 300 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 24.34 inches wide and 7.28 inches deep. This MPH meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Compliant
  • Contractual warranty
    • Warranty : 18 months
  • Specifications
    • Main Type : Main Lugs
    • Meter Socket Rated Current : 125 A
    • Number Of Meter Sockets : 3
    • Product Or Component Type : Meter Center
    • Number Of Jaws : 4
    • Meter Socket Type : ringed
  • Complementary
    • Product Certifications : UL Listed
    • Service Feed Location : UG || OH
    • Height : 48.12 in
    • Range Of Product : Meter-Pak
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Bypass Type : no bypass
    • Bus Rated Current : 300 A
    • Phase : 1 phase
    • Main Rated Current : 300 A
    • Nema Degree Of Protection : NEMA 3R
    • Product Mounting : surface
    • Material : aluminium: busbar
    • Enclosure Material : steel
    • Awg Gauge : AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
    • Wiring Configuration : 3-wire
    • Width : 24.34 in
    • Depth : 7.28 in
