MP Meter Pak, main lugs, six ringed sockets, no bypass, 4 jaws, OH, UG, 800 A bus, 200 A, 240 VAC single phase 3W

MP Meter Pak, main lugs, six ringed sockets, no bypass, 4 jaws, OH, UG, 800 A bus, 200 A, 240 VAC single phase 3W

SQDMP86200 MP86200 785901410447
3914.76 / EACH
  • Country of Origin: Mexico
  • Depth: 210.31 mm, 8.28 in
  • Enclosure: 3R
  • Enclosure Material: Steel
  • Height: 1102.61 mm, 43.41 in
  • Number of Phases: 1
  • Warranty Length: 18 mth
  • Width: 1185.67 mm, 46.68 in

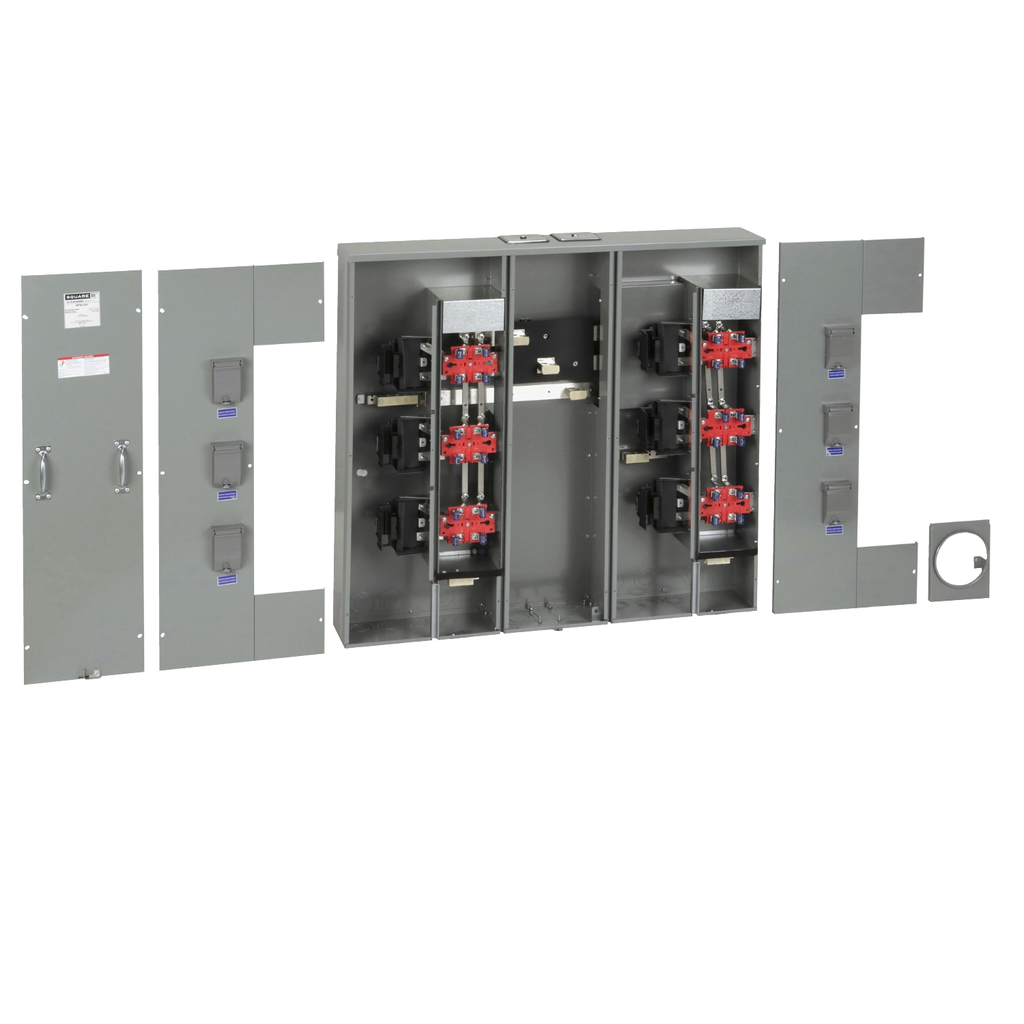

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center has six ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 800 A. The maximum tenant main lugs amperage is 200 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 43.41 inches tall, 46.68 inches wide and 8.28 inches deep. This MPH meter center with accept one or two 3/0 AWG to 500 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.
  • Product Description
  • Specifications
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center has six ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 800 A. The maximum tenant main lugs amperage is 200 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 43.41 inches tall, 46.68 inches wide and 8.28 inches deep. This MPH meter center with accept one or two 3/0 AWG to 500 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.
  • Complementary
    • Bypass Type : No bypass
    • Maximum Voltage Rating : 240 V AC
    • Height : 43.41 in (1102.61 mm)
    • Busbar Material : Aluminium: busbar
    • Service Feed Location : OH || UG
    • Certifications : UL Listed
    • Depth : 8.28 in (210.31 mm)
    • Phase : 1 phase
    • Enclosure Rating : NEMA 3R
    • Type : Meter-Pak
    • Main Rating : 600 A || 750 A
    • Mounting : Surface
    • Wire Configuration : 3-wire
    • Wire Size : AWG 3/0...500 kcmil 2 aluminium || AWG 3/0...500 kcmil 2 copper
    • Enclosure Material : Steel
    • Bus Rating : 800 A
    • Width : 46.68 in (1185.67 mm)
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Main
    • Number Of Meter Sockets : 6
    • Socket Rating : 200 A
    • Number Of Jaws : 4
    • Main Type : Main Lugs
    • Socket Type : Ringed
    • Product : Meter Center
  • Ordering And Shipping Details
    • Discount Schedule : DE4
    • GTIN : 00785901410447
    • Category : 00021 - METER-PAK
    • Country Of Origin : MX
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
