MP Meter Pak, main lugs, four ringed sockets, no bypass, 4 jaws, UG, OH, 400 A bus, 125 A, 240 VAC single phase

MP Meter Pak, main lugs, four ringed sockets, no bypass, 4 jaws, UG, OH, 400 A bus, 125 A, 240 VAC single phase

SQDMP44125 MP44125 785901001805
1322.00 / EACH
  • Country of Origin: Mexico
  • Depth: 184.91 mm, 7.28 in
  • Enclosure: 3R
  • Enclosure Material: Steel
  • Height: 1222.25 mm, 48.12 in
  • Number of Phases: 1
  • Warranty Length: 18 mth
  • Width: 24.34 in, 618.24 mm

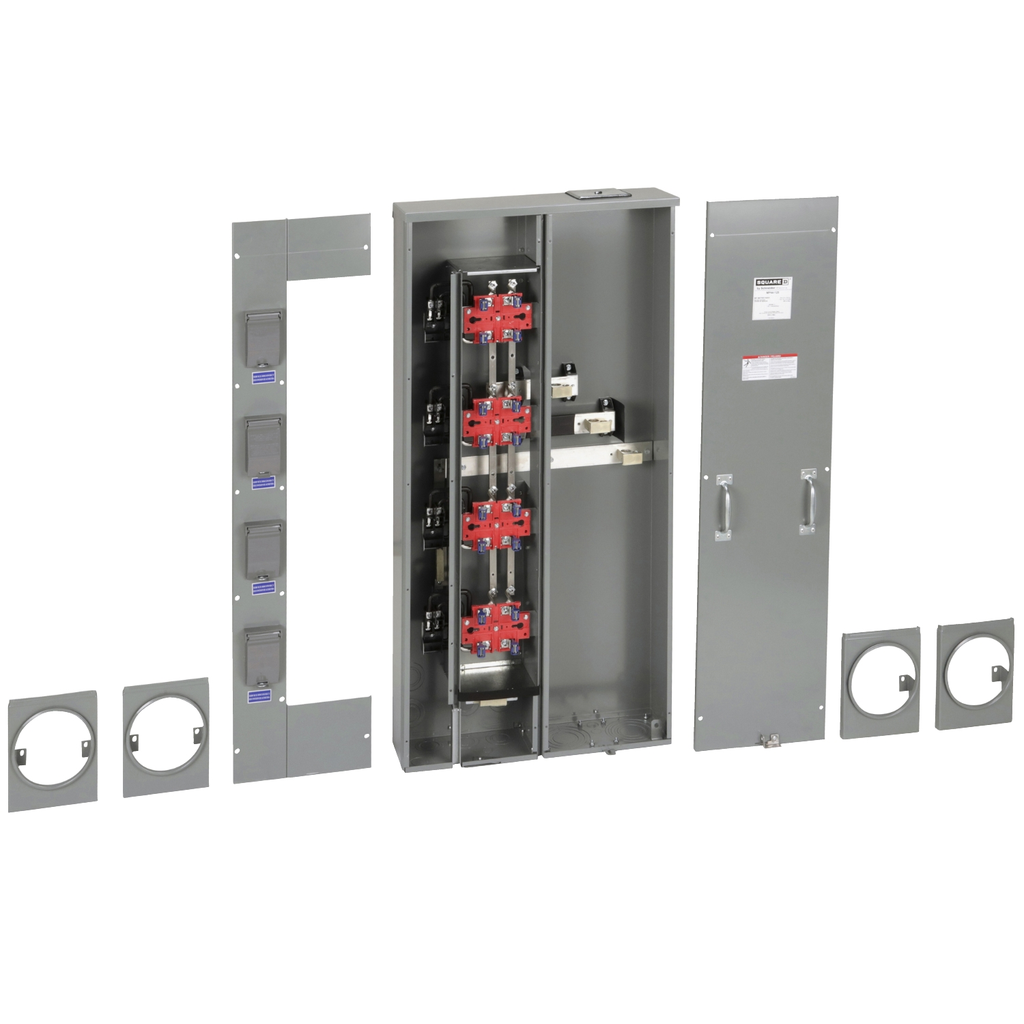

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center has four ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 400 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 24.34 inches wide and 7.28 inches deep. This MPH meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.
  • Product Description
  • Specifications
MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations are available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter center has four ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 400 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 24.34 inches wide and 7.28 inches deep. This MPH meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.
  • Complementary
    • Main Rating : 400 A
    • Enclosure Rating : NEMA 3R
    • Bus Rating : 400 A
    • Phase : 1 phase
    • Wire Size : AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
    • Bypass Type : No bypass
    • Mounting : Surface
    • Height : 48.12 in (1222.25 mm)
    • Certifications : UL Listed
    • Depth : 7.28 in (184.91 mm)
    • Service Feed Location : OH || UG
    • Type : Meter-Pak
    • Enclosure Material : Steel
    • Wire Configuration : 3-wire
    • Maximum Voltage Rating : 240 V AC
    • Width : 24.34 in (618.24 mm)
    • Busbar Material : Aluminium: busbar
  • Ordering And Shipping Details
    • GTIN : 00785901001805
    • Returnability : Yes
    • Category : 00021 - METER-PAK
    • Nbr. Of Units In Pkg. : 7
    • Country Of Origin : MX
    • Discount Schedule : DE4
  • Main
    • Main Type : Main Lugs
    • Socket Rating : 125 A
    • Number Of Meter Sockets : 4
    • Socket Type : Ringed
    • Number Of Jaws : 4
    • Product : Meter Center
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
