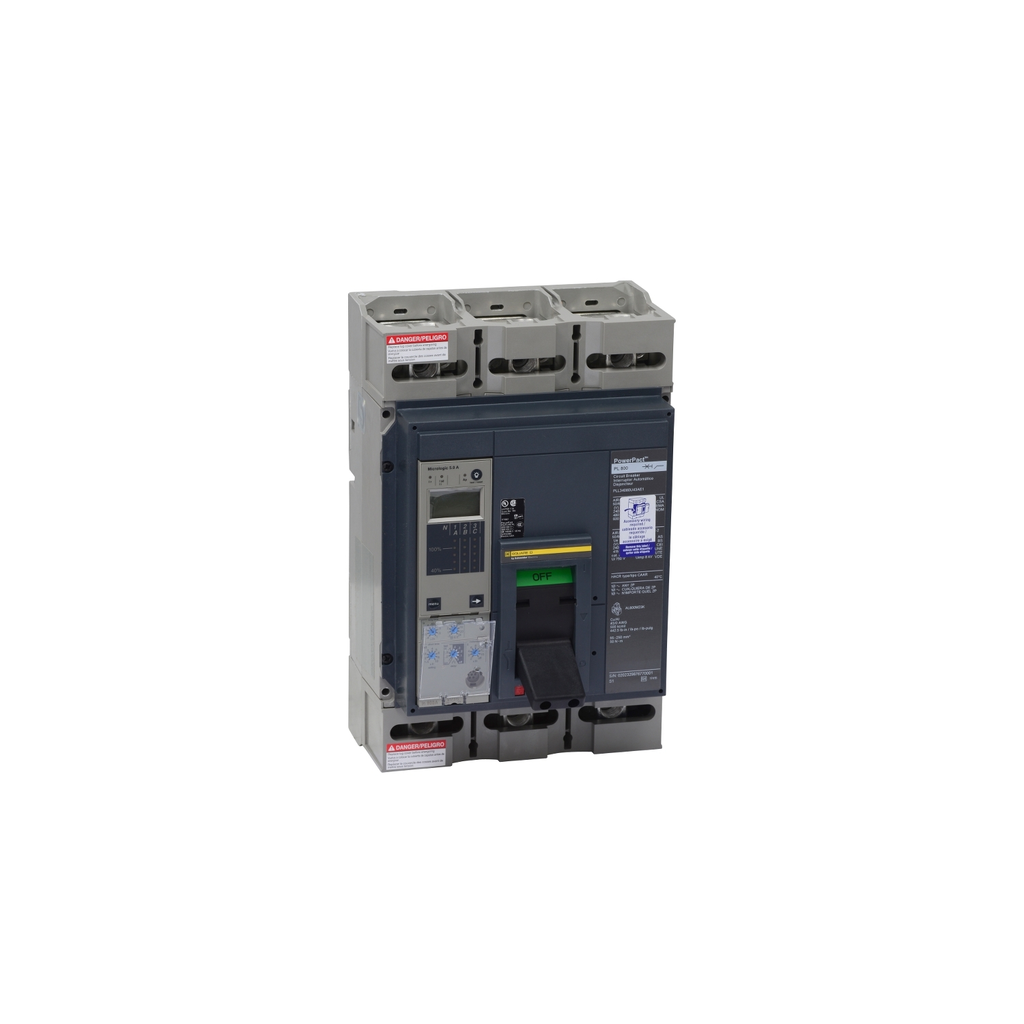

MOLDED CASE CIRCUIT BREAKER 600V 800A

MOLDED CASE CIRCUIT BREAKER 600V 800A

SQDPJL36080U43A PJL36080U43A 785901497653
15540.07 / EA
  • Depth: 8.05 in
  • Height: 12.86 in
  • Line Rated Current: 800 A
  • Warranty Length: 18 mth
  • Width: 8.27 in
This PowerPact P, circuit breaker has a rated currrent of 800A and a rated operational current of 600VAC with a breaking capacity of 25 kA@600VAC. This unit mounted breaker is a 3-pole and has a continuous current rating of 80 %. This breaker has an electronic trip unit technology and a Micrologic 5.0 A trip unit. Dimensions for this product are 12.86 in (H), 8.05 in (W), 8.27 in (D). This product comes with an 18 month warranty.
  • Product Description
  • Specifications
This PowerPact P, circuit breaker has a rated currrent of 800A and a rated operational current of 600VAC with a breaking capacity of 25 kA@600VAC. This unit mounted breaker is a 3-pole and has a continuous current rating of 80 %. This breaker has an electronic trip unit technology and a Micrologic 5.0 A trip unit. Dimensions for this product are 12.86 in (H), 8.05 in (W), 8.27 in (D). This product comes with an 18 month warranty.
  • Electrical Connection : lugs load || lugs line
  • Warranty : 18 months
  • Tightening Torque : 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil) || 1.0-1.3 N.m
  • Poles Description : 3P
  • Breaking Capacity Code : J
  • Product Or Component Type : circuit breaker
  • Maximum Depth : 8.05 in
  • Maximum Width : 8.27 in
  • Device Short Name : A
  • Maximum Height : 12.86 in
  • Line Rated Current : 800 A
  • Continuous Current Rating : 80 %
