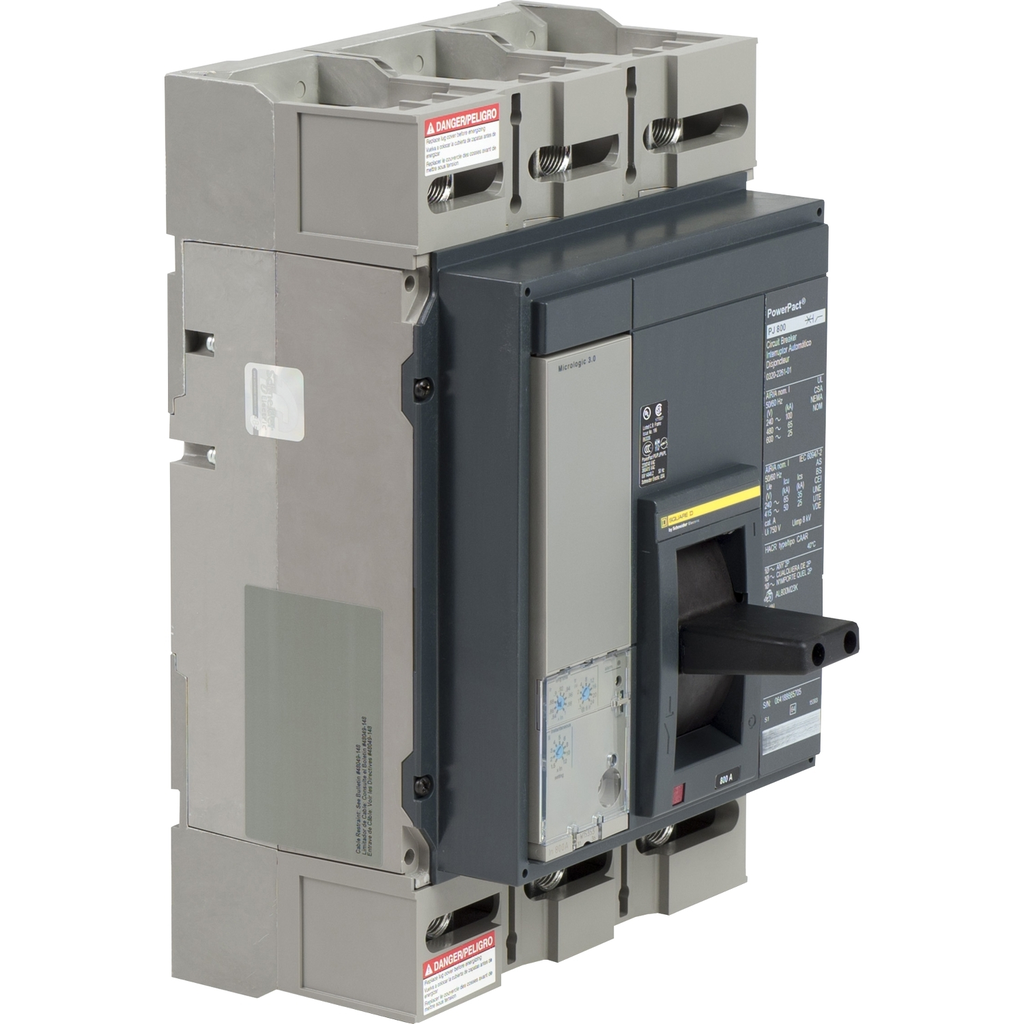

Circuit breaker, PowerPacT P, 250A, 3 pole, 600VAC, 18kA, lugs, Micrologic 5.0, 80%

MOLDED CASE CIRCUIT BREAKER 60

SQDPGL36025U33A PGL36025U33A 785901622079
22130.25 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker, PowerPacT P, 250A, 3 pole, 600VAC, 18kA, lugs, Micrologic 5.0, 80%-1
  • Warranty Length: 18 mth
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 250A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 250A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL, CSA, NOM
  • Complementary Attributes
    • ICS Rated Service Breaking Capacity : 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 240 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
    • UE Rated Operational Voltage : 600 V AC 50/60 Hz UL 489, 600 V AC 50/60 Hz UL 489, 600 V AC 50/60 Hz UL 489, 600 V AC 50/60 Hz UL 489
    • UI Rated Insulation Voltage : 750 V IEC 60947-2, 750 V IEC 60947-2
    • UIMP Rated Impulse Withstand Voltage : 8 kV IEC 60947-2, 8 kV IEC 60947-2
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : 3 x AWG 3/0...500 kcmil aluminium/copper, 3 x AWG 3/0...500 kcmil aluminium/copper
    • Electrical Connection : lugs, load, lugs, load, lugs, line, lugs, line
    • Local Signalling : overload 1 1 LED amber), overload 1 1 LED amber), overload 1 1 LED amber), overload 1 1 LED amber), 1 trip indicator green), 1 trip indicator green), 1 trip indicator green)
    • Number Of Slots : 2 auxiliary switch OF plug-in), 2 auxiliary switch OF plug-in), 2 auxiliary switch OF plug-in), 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 alarm switch SD plug-in), 1 alarm switch SD plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 overcurrent trip switch SDE plug-in), 1 overcurrent trip switch SDE plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in)
    • Tightening Torque : 50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil), 50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil), 50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil), 1.0-1.3 N.m
    • Trip Unit Technology : electronic, standard, MicroLogic 5.0, LSI, electronic, standard, MicroLogic 5.0, LSI, electronic, standard, MicroLogic 5.0, LSI, electronic, standard, MicroLogic 5.0, LSI
    • ICS Rated Service Breaking Capacity : 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 240 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2, 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
    • Carbon Footprint Of The Distribution Phase A4 : 4.194654907690849, 4 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 19 kg CO2 eq., 19.219047362819378
    • Carbon Footprint Of The Installation Phase A5 : 2.5241627657841312, 3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 108 kg CO2 eq., 108.38202238849306
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 649 kg CO2 eq., 648.9795288130179
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2206033_V2
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Continuous Current Rating : 80 %
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 14.515 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : circuit breaker
    • Quality Labels : CE
    • Range : PowerPact
    • Returnability : Yes
    • Sustainable Packaging : No
    • Terminal Identifier : AL800M23K
    • Total Lifecycle Carbon Footprint : 783 kg CO2 eq.
    • Trip Unit Name : MicroLogic 5.0
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2206033EN
    • Pep Verification Date : 2025-06-25
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • IP Degree Of Protection : front cover IP40, front cover IP40
    • Operating Altitude : < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 13123.36 ft (4000 m) with derating, 13123.36 ft (4000 m) with derating
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 783.2994162378053
    • Circularity Profile : ENVEOLI2206033_V2
    • Environmental Disclosure : ENVPEP2206033EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2206033EN
    • Pep Verification Date : 2025-06-25
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : circuit breaker
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Batteries & Runtime Attributes
    • Removable Battery : YES
