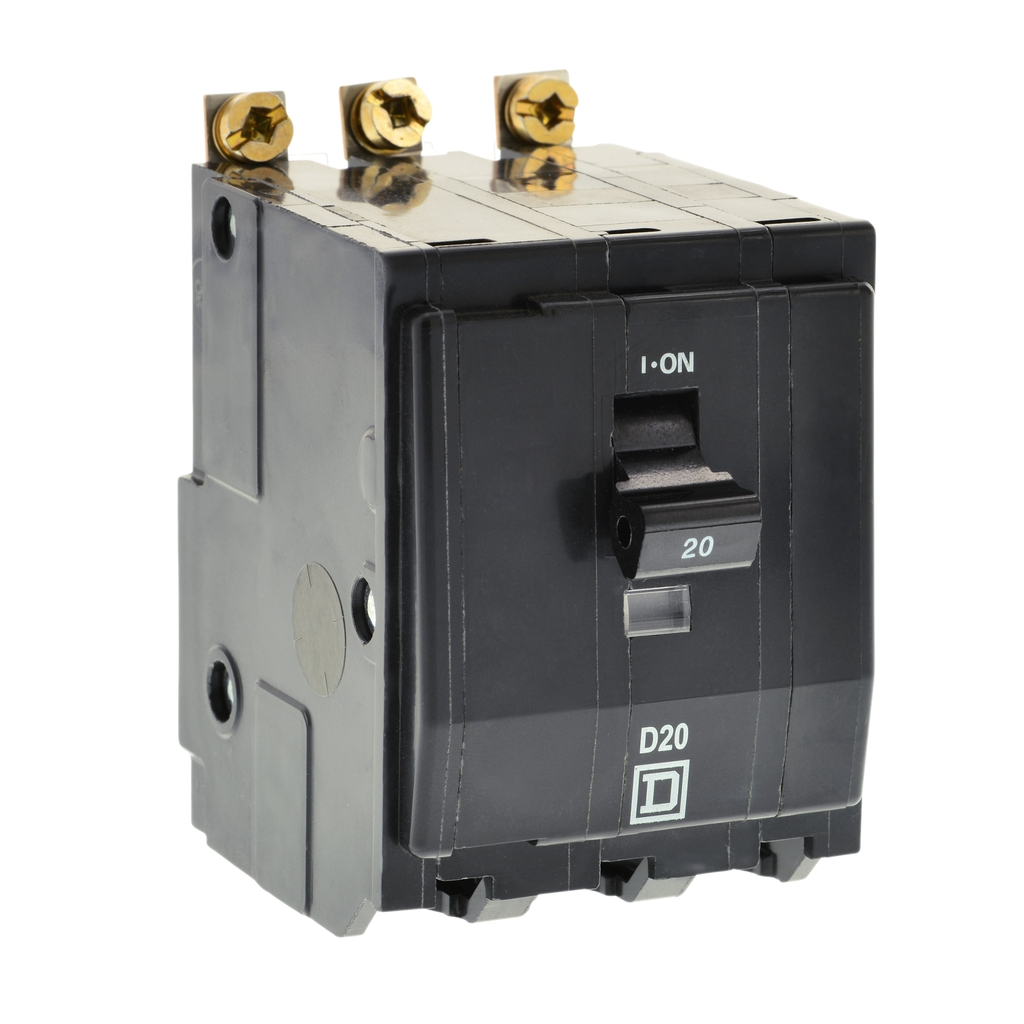

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positiv

• Persona Type Names
• End User
• Original Equipment Manufacturer
• Persona Type Ids
• EU
• OM
• Tightening Torque
• 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
• Ue Rated Operational Voltage
• 240/415 V AC

• Complementary Attributes
• Line Rated Current : 32 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Provides superior circuit protection
• B2B Bullet Point 2 : Reliable and durable
• B2B Bullet Point 3 : Plug-on neutral design and shorter footprint for faster installs
• B2B Bullet Point 4 : Simple design and clear instructions for quick setup
• B2B Bullet Point 5 : Time-saving diagnostics with touch of a button
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2534
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 3P
• Circuit Breaker Application : not rated
• Circuit Breaker Type : standard
• Electrical Connection : pressure plate
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Mounting Mode : bolt-on
• Number Of Spaces Required : 3
• Package Weight Lbs : 390.089 g
• Poles Description : 3P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QO
• Returnability : No
• Short Circuit Current : 10 kA
• Sustainable Packaging : No
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QO
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=4047527&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 40 °C
• Environmental Disclosure : ENVPEP2111016
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 2.99 in
• Width : 2.24 in
• Depth : 2.91 in
