SQUARE D

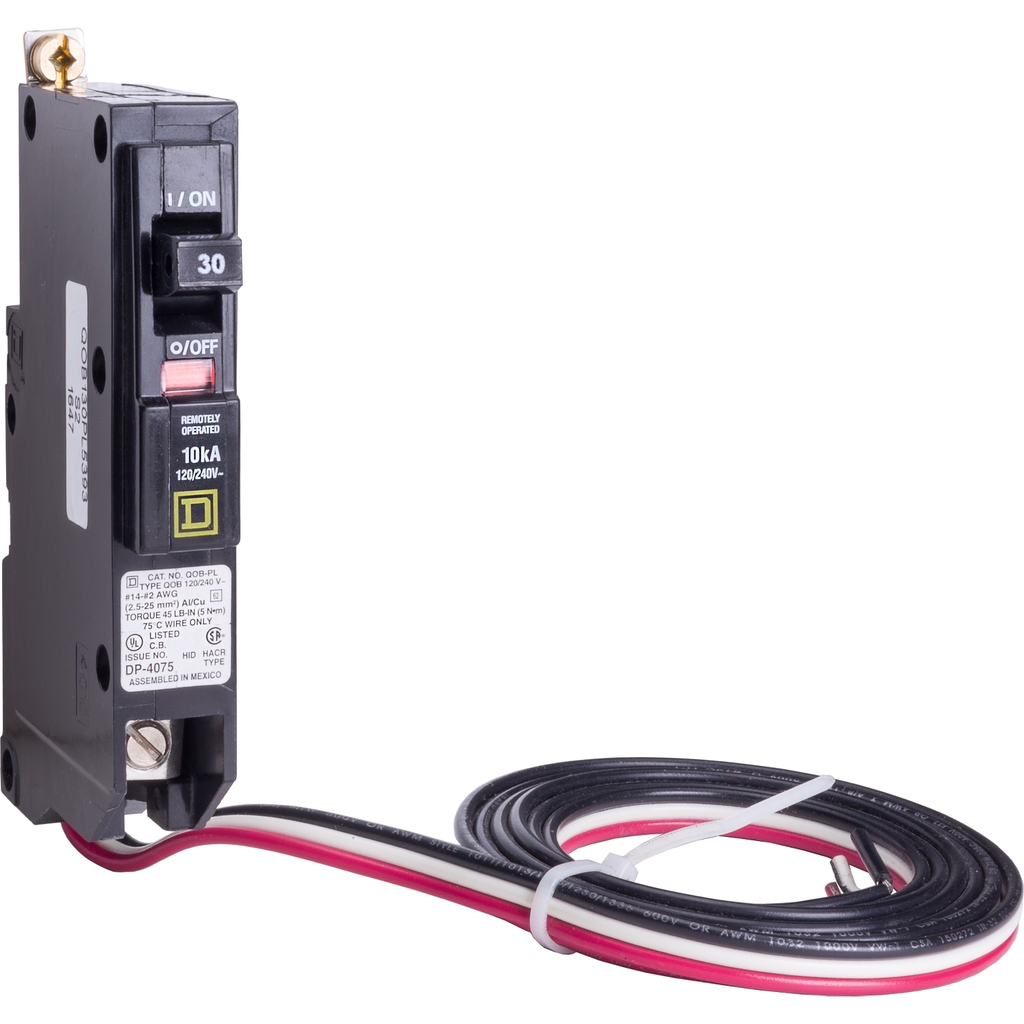

Mini circuit breaker, QO, 30A, 1 pole, 120/240VAC, 10kA, Powerlink, bolt on mount, 60in leads

MINIATURE CIRCUIT BREAKER 12/2

SQDQOB130PL5393 QOB130PL5393 785901404767
252.92 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 30A, 1 pole, 120/240VAC, 10kA, Powerlink, bolt on mount, 60in leads-1
  • Certifications: CSA, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 74 mm
  • Height: 116 mm
  • Line Rated Current: 30 A
  • Mounting Type: Bolt-On
  • Net Weight: 0.277 kg
  • Warranty Length: 18 mth
  • Width: 19 mm
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a Powerlink feature and 60in leads. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Specifications
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a Powerlink feature and 60in leads. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free product
  • Complementary
    • Height : 116 mm
    • Tightening Torque : 4-4 N.m
    • Provided Equipment : 60 in lead
    • Number Of Spaces Required : 1
    • Net Weight : 0.277 kg
    • Breaking Capacity : 10 kA 120/240 V AC 50/60 Hz
    • Awg Gauge : AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
    • Width : 19 mm
    • Depth : 74 mm
  • Specifications
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : circuit breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : bolt-on
    • Poles Description : 1P
    • Electrical Connection : box lugs
    • Line Rated Current : 30 A
    • [Ue] Rated Operational Voltage : 120/240 V AC
