Unit substation, Mini Power-Zone, bolt on, 15kVA, 3 phase, 480V primary, 208Y/120V secondary, 25kA, CC

MINI POWER-ZONE 25 AIC 15KVA

SQDMPZB15T2F25K MPZB15T2F25K 785901460985
20164.02 / EA
http://schema.org/OutOfStock

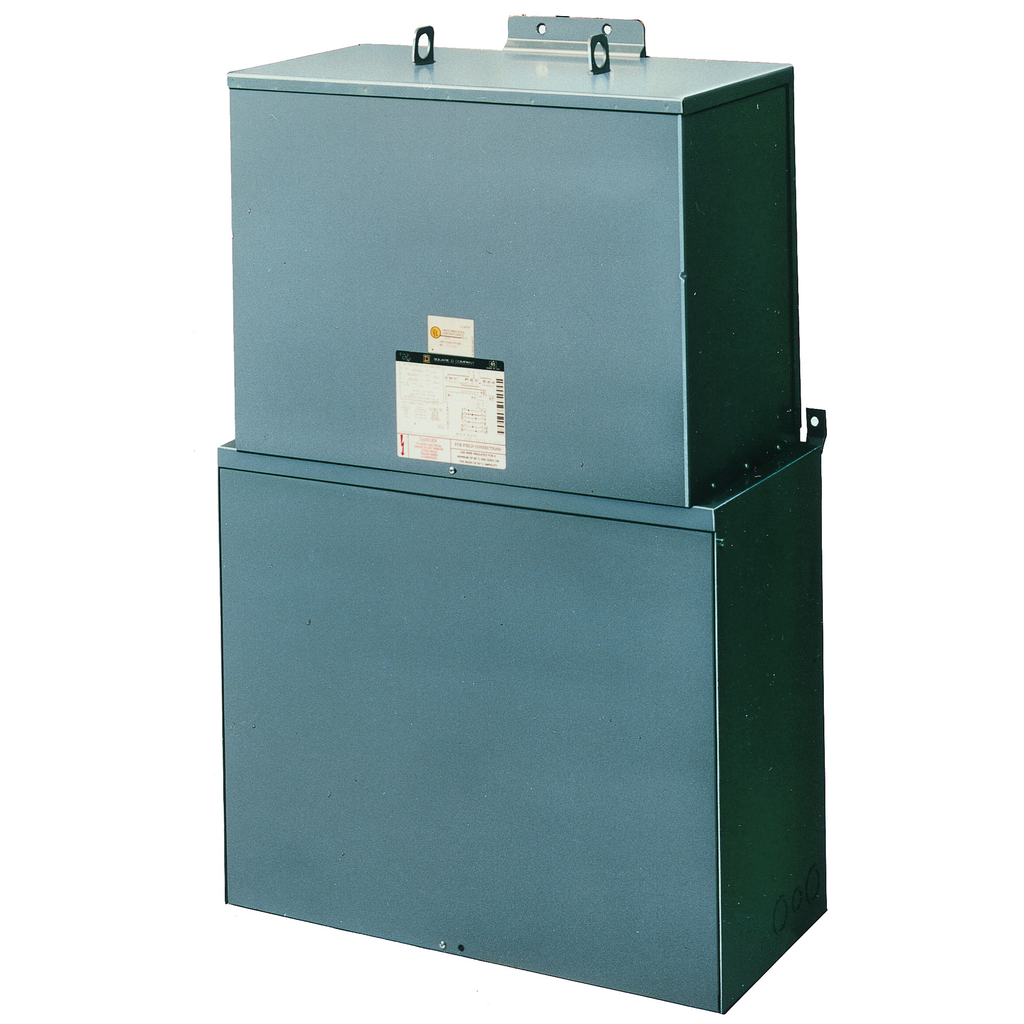

Mayer-DDS-Unit substation, Mini Power-Zone, bolt on, 15kVA, 3 phase, 480V primary, 208Y/120V secondary, 25kA, CC-1
  • Country of Origin: USA
  • Material: Copper
  • Number of Circuits: 27
  • Number of Spaces: 27
  • Primary Voltage: 480 V
  • Temperature Rise: 115 °C
  • Warranty Length: 18 mth
The Square D® brand Mini Power-Zone® is furnished as a complete integrated package of single phase or 3-phase power solutions.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm.
  • Nema Degree Of Protection
    • NEMA 3R hot-rolled steel
  • Circuit Breaker Application
    • FAL34040 primary main breaker 40 A
    • QO360 secondary main breaker 60 A
    • QO/QOB feeder breaker 40 A
    • QO/QOB feeder breake
  • Board Name
    • NQ Panelboard interior
  • Number Of Tap Offs
    • 2 5 % FCBN
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Rated Power In Va : 15 kVA
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Device Type : Transformer - dry
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : PSIBS
    • Average Life Duration : 25 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1926
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Box Number : CC
    • Insulation Temperature : 185 °C
    • Material : copper
    • Number Of Circuits : 27
    • Number Of Spaces : 27
    • Package Weight Lbs : 249.476 kg
    • Phase : 3 phase
    • Primary Voltage : 480 V
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Sealed Transformer
    • Range Of Product : Mini Power-Zone
    • Returnability : No
    • Secondary Voltage : 208Y/120 V
    • Short Circuit Current : 25 kA
    • Sustainable Packaging : No
    • Temperature Rise : 115 °C
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : Sealed Transformer
    • Range Of Product : Mini Power-Zone
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=268258625&lang=en-us
    • Take Back : No
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
