SQUARE D

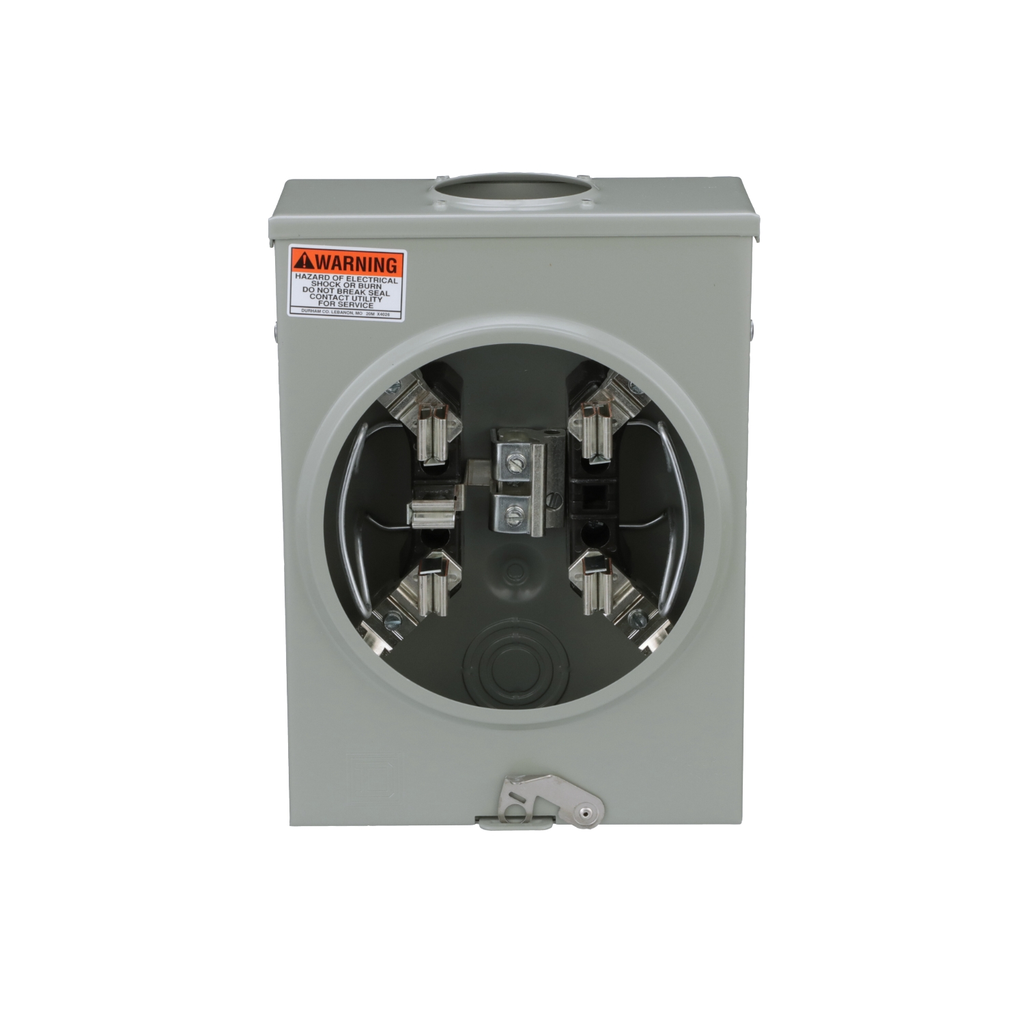

Meter socket, ringless, 1 phase, 3 wire, 125A, 5 jaws, 600VAC max, Series A, horn bypass, no jaw release

MTR SKT RINGLESS HORN OH/UG 10

SQDUGHTRS101B UGHTRS101B 785901908005
158.44 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter socket, ringless, 1 phase, 3 wire, 125A, 5 jaws, 600VAC max, Series A, horn bypass, no jaw release-1
  • Enclosure Material: Steel
  • Number of Jaws: 5 Without Jaw Release
  • Warranty Length: 18 mth
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 125 A, 600 V, 1 phase, 5 jaws, ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter has horn bypass allowing for continued service during meter maintenance or replacement.
QTY
  • Product Description
  • Features
  • Specifications
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 125 A, 600 V, 1 phase, 5 jaws, ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter has horn bypass allowing for continued service during meter maintenance or replacement.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : ANSI, UL Listed
  • Complementary Attributes
    • Ue Rated Operational Voltage : <= 600 V AC, <= 600 V AC, <= 600 V AC, <= 600 V AC
    • Meter Socket Rated Current : 100 A
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, SC
    • Persona Type Names : End User, Consumer, Contractor, Electrician
    • Service Feed Location : UG, OH
    • Medium Desc : Meter socket, ringless, 1 phase, 3 wire, 125A, 5 jaws, 600VAC max, Series A, horn bypass, no jaw release
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Single-phase individual meter enclosure
    • Legacy Weee Scope : In
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Awg Gauge : AWG 8...AWG 2/0 aluminium/copper)line side
    • Electrical Connection : lugs slotted
    • Enclosure Material : steel
    • Energy Efficiency Optimized : False
    • Hub Type : A ACP closing plate
    • Meter Socket Type : ringless
    • Number Of Jaws : 5 without jaw release
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Pep Code : ENVPEP2509019EN
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : horn bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
