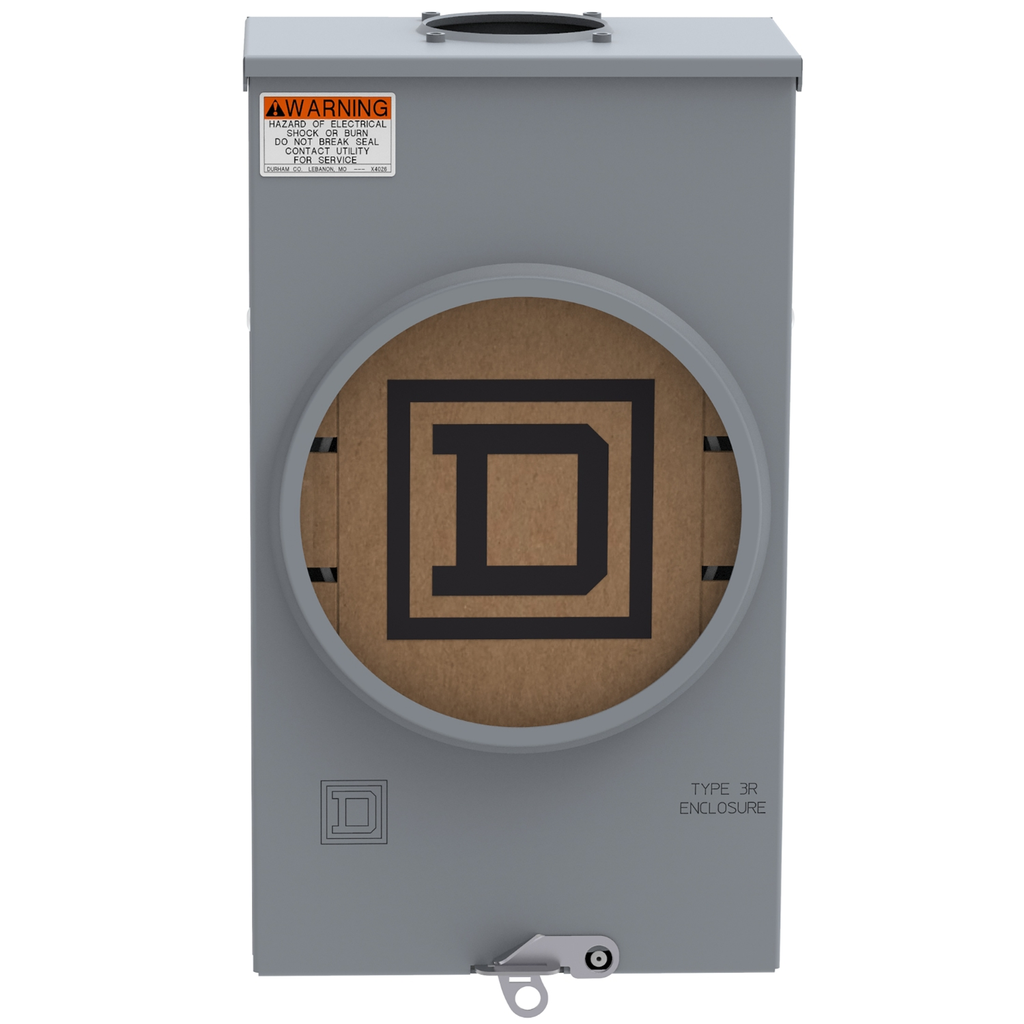

Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a highe

• Hub Type
• A ACP closing plate
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more
• Ue Rated Operational Voltage
• 600 V AC
• Electrical Connection
• lugs 0.5" hex
• Persona Type Names
• End User
• Consumer
• Contractor
• Electrician
• Persona Type Ids
• EU
• EUA
• LC
• SC
• Number Of Jaws
• 4 without jaw release

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Meter Socket Rated Current : 200 A
• Important Information Attributes
• B2B Bullet Point 1 : Square D™ meter sockets provide rainproof protection for senstive electrical equipment
• B2B Bullet Point 2 : For single family residential construction
• B2B Bullet Point 3 : Conforms to the electrical characteristics stated in the data sheet per the Underwriters Laboratories (UL)
• Local Data Status : Publishable
• Local Publishable Date : 4/5/2025
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2534
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• Box Number : 3R
• Enclosure Material : steel
• Energy Efficiency Optimized : FALSE
• Meter Socket Type : ringless
• Package Weight Lbs : 4.518 kg
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Meter Socket
• Returnability : Yes
• Service Feed Location : OH
• Sustainable Packaging : No
• Wiring Configuration : 3-wire
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Meter Socket
• Output Attributes
• Bypass Type : horn bypass
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=362029&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2509019
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 3R
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Height : 14.00 in
• Width : 8.00 in
• Depth : 4.38 in
