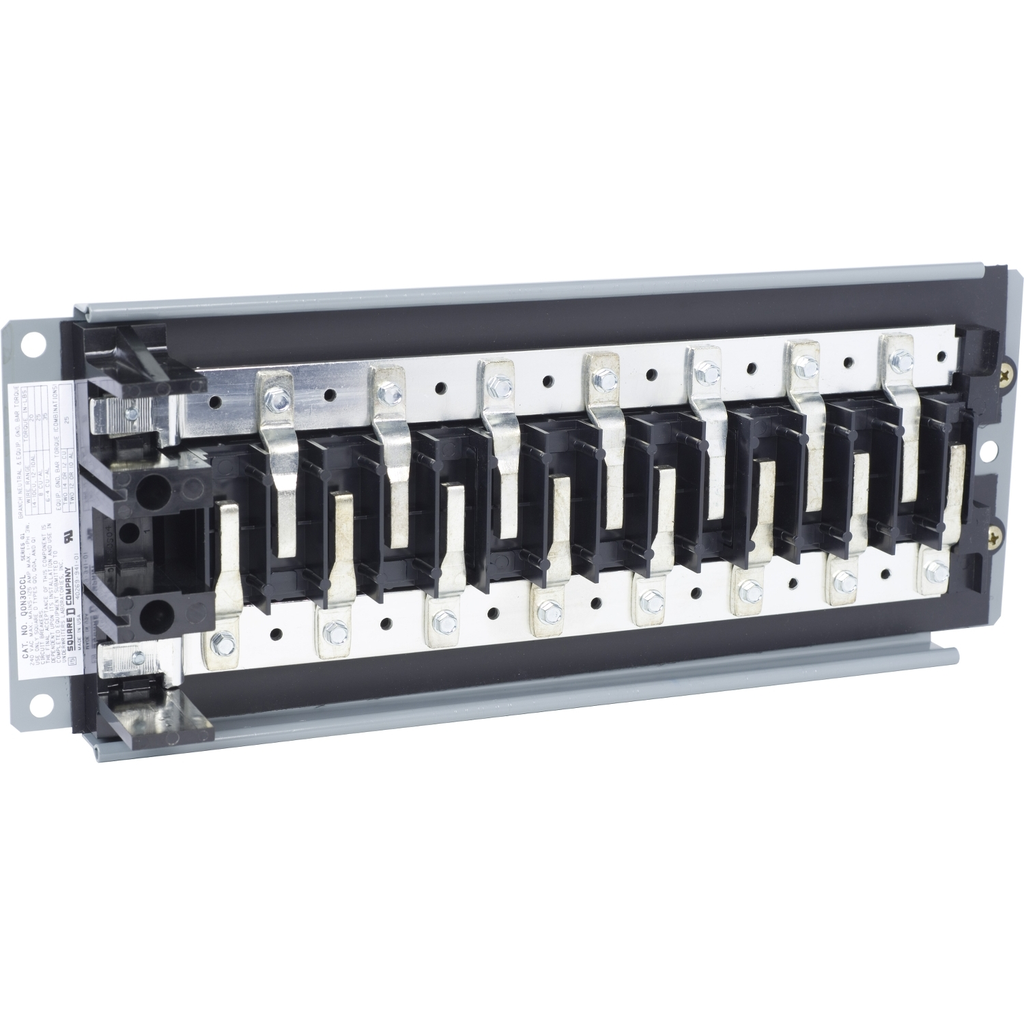

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM mounting base has a 10 kA breaking capacity. This mounting base will accept only QO plug on circuit breakers. The lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. QO OEM bases is UL component recognized.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 125 A
• Important Information Attributes
• Awg Gauge : 14 AWG...10 AWG copper12 AWG...10 AWG aluminium8 AWG aluminium/copper, 6 AWG...4 AWG aluminium/copper
• Tightening Torque : neutral conductor 20 N.m, 14 AWG...10 AWG, copperneutral conductor 20 N.m, 12 AWG...10 AWG, aluminium, neutral conductor 25 N.m, 8 AWG, aluminium/copperneutral conductor 35 N.m, 6 AWG...4 AWG, aluminium/copper
• Local Data Status : Publishable
• Local Publishable Date : 2026-06-02
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2436
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Persona Type Ids : OM
• Persona Type Names : Original Equipment Manufacturer
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Circuit Breaker Type : QO
• Device Composition : grounding bar (ordered separately)
• Energy Efficiency Optimized : False
• Load Center Type : fixed mains (back-fed main breakers)
• Mounting Mode : plug-on
• Number Of Circuits : 30
• Number Of Spaces : 30
• Phase : 1 phase 3 wires
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : mounting base
• Range Of Product : QO
• Returnability : No
• Sustainable Packaging : No
• Pep Code : ENVPEP2212001EN
• Height Nominal : 328 mm
• Width Nominal : 235 mm
• Certificate Agency : UL Recognized
• [Ue] Rated Operational Voltage : 240 V AC
• Short-circuit Current : 10 kA
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 907.185 g
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 8536200020
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -5 °C, -5 °C, 40 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212001EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212001EN
• General Attributes
• Phase : 1 phase 3 wires
• Product Or Component Type : mounting base
• Range Of Product : QO
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico, United States
• Depth : 107 mm
