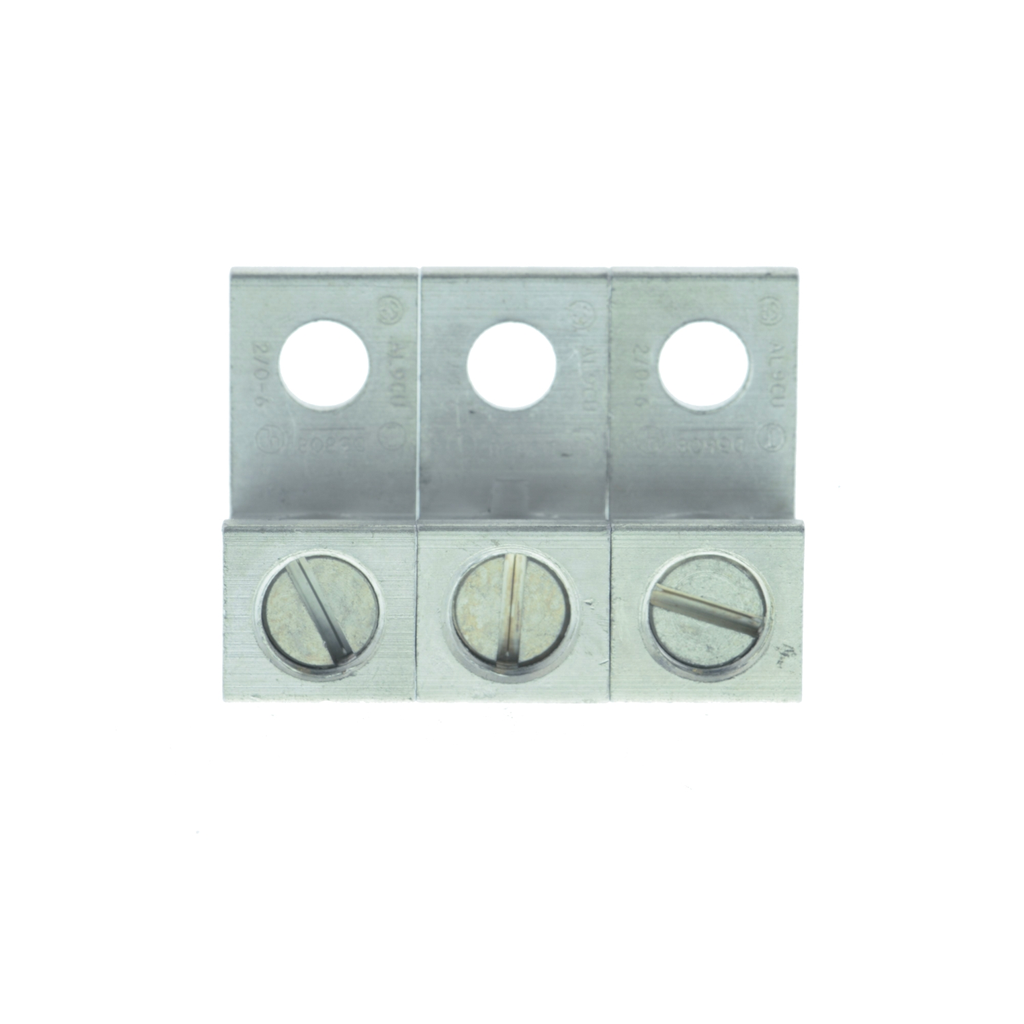

Load center accessory, QO/Homeline, main lug kit, 100A to 125A, 3 phase, AWG 6-2/0, field installable

LOAD CENTER QO MAIN LUG KIT 3P

SQDQOL3125 QOL3125 785901738121
70.86 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center accessory, QO/Homeline, main lug kit, 100A to 125A, 3 phase, AWG 6-2/0, field installable-2
  • Country of Origin: USA
  • Warranty Length: 18 mth
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. There is a full line of accessories available for these circuit breakers. This mains lugs kit is for field installable in convertible 3 phase main circuit breaker load centers. Kit can be used for load centers rated 125 A. The lugs will accept 6 AWG to 2/0 AWG copper or aluminum wire. Lug is UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. There is a full line of accessories available for these circuit breakers. This mains lugs kit is for field installable in convertible 3 phase main circuit breaker load centers. Kit can be used for load centers rated 125 A. The lugs will accept 6 AWG to 2/0 AWG copper or aluminum wire. Lug is UL listed and CSA certified.
  • Persona Type Names
    • End User
    • Contractor
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Persona Type Ids
    • EU
    • LC
  • AWG Gauge
    • AWG 6...AWG 2/0 aluminium
    • AWG 6...AWG 2/0 copper
  • Important Information Attributes
    • B2B Bullet Point 1 : Converts main breaker panel to main lug for flexibility in system design.
    • B2B Bullet Point 2 : Simplifies installation for feeder panels in multi-panel setups.
    • B2B Bullet Point 3 : Allows use as a sub-panel by removing the main breaker and installing lugs.
    • B2B Bullet Point 4 : Provides adaptability for future changes in electrical configuration.
    • B2B Bullet Point 5 : Maintains UL listing and code compliance when properly installed.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 2531
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : ACCESSORIES
    • H And D Enrichment Class 3 : Enclosures
    • H And D Enrichment Class 4 : Enclosure accessory
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 4.536 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : lug kit
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 8.5 N.m
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : lug kit
    • Range Of Product : QO
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=361227&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
