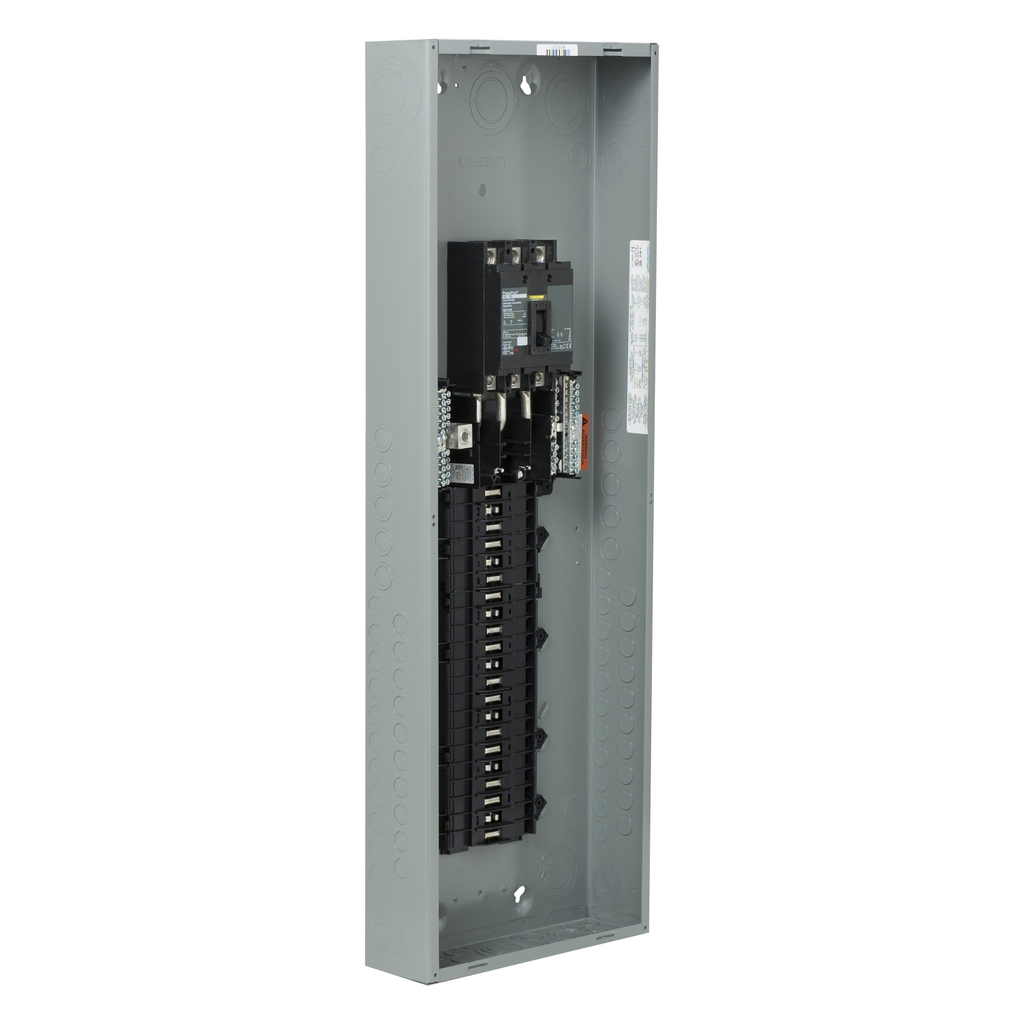

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides a 175A convertible main breaker in a NEMA 1 enclosure. It also includes a QDL circuit breaker, and is UL rated.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Ue Rated Operational Voltage : 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
• Line Rated Current : 175 A
• Important Information Attributes
• Persona Type Ids : EU, OM
• Persona Type Names : End User, Original Equipment Manufacturer
• Phase : 3 phase 4 wires, 3 phase 3 wires
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Three-phase convertible mains load center
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2436
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Awg Gauge : AWG 4...300 kcmil aluminium/copper
• Box Number : 12
• Cover Type : order separately
• Device Composition : grounding bar (ordered separately)
• Electrical Connection : lugs
• Enclosure Material : welded sheet steel
• Energy Efficiency Optimized : False
• Load Center Type : main breaker
• Material : tin plated copper: busbar
• Number Of Circuits : 42
• Number Of Spaces : 42
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : QO
• Returnability : No
• Short Circuit Current : 25 kA
• Surface Finish : baked enamel Gray
• Sustainable Packaging : No
• Tightening Torque : Cover 20 lb.in
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP2212001EN
• Offer Owner Code : 190788
• Height Nominal : 1000 mm
• Width Nominal : 362 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -5 °C, 40 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212001EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 1 indoor enclosure
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212001EN
• General Attributes
• Phase : 3 phase 4 wires, 3 phase 3 wires
• Product Or Component Type : Load Center
• Range Of Product : QO
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
