Load center, QO, 3 phase, 24 spaces, 24 circuits, 100A convertible main breaker, NEMA3R

PNL 3PH 120/240VAC 100A MB N3R

SQDQO324MB100RB QO324MB100RB 785901908333
607.04 / EA
http://schema.org/OutOfStock

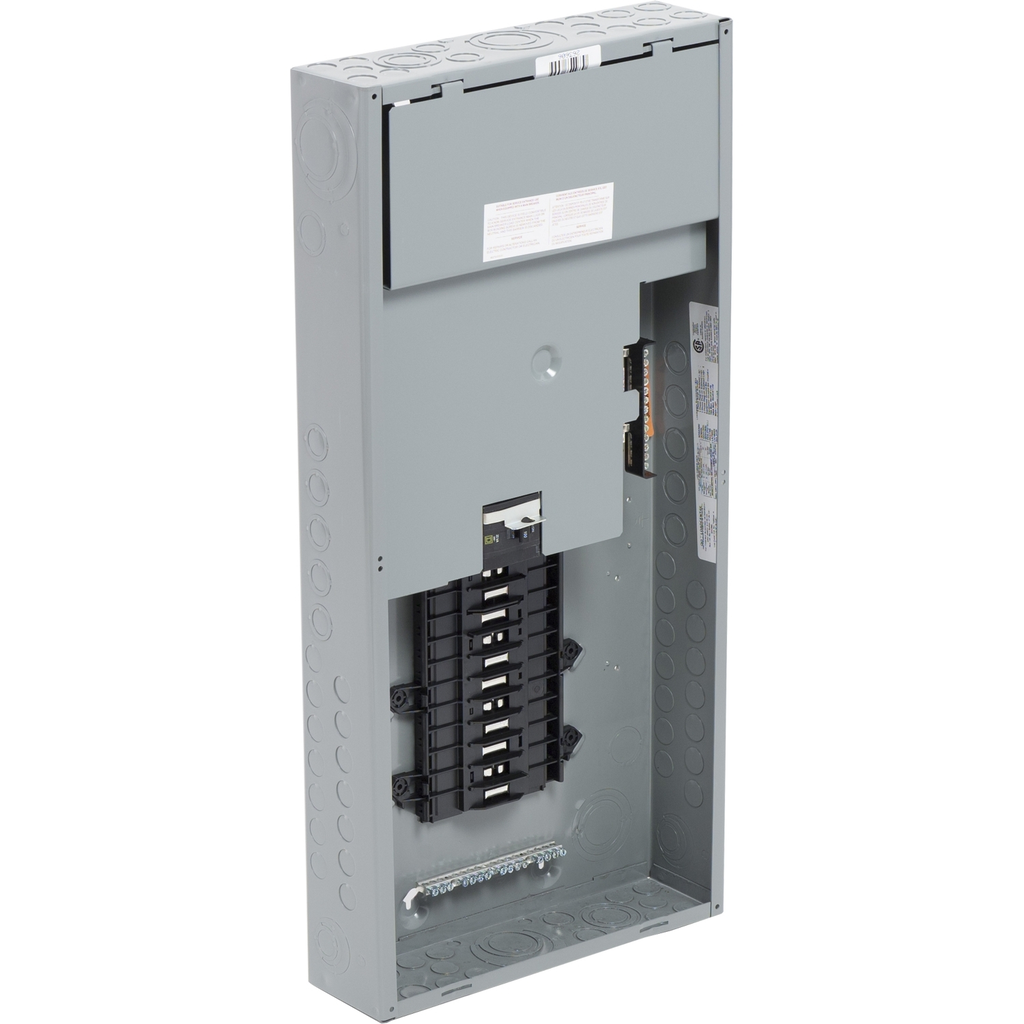

Mayer-DDS-Load center, QO, 3 phase, 24 spaces, 24 circuits, 100A convertible main breaker, NEMA3R-1
  • Country of Origin: USA
  • Cover Type: Surface Cover
  • Depth: 108 mm
  • Enclosure Material: Steel
  • Height: 770 mm
  • Net Weight: 16.780 kg
  • Number of Circuits: 24
  • Number of Spaces: 24
  • Weight: 16.780 kg
  • Width: 361 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 24 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 3R enclosure. This product is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 24 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 3R enclosure. This product is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 770 mm
    • Phase : 3 phase 4 wires
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Number Of Circuits : 24
    • Number Of Spaces : 24
    • Net Weight : 16.780 kg
    • Number Of Tandem Circuit Breakers : 0
    • Material : tin plated copper
    • Line Rated Current : 100 A
    • Enclosure Material : welded galvannealed steel
    • Awg Gauge : AWG 4...250 kcmil aluminium/copper
    • Width : 361 mm
    • Depth : 108 mm
    • Load Center Type : main breaker
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 10
  • Specifications
    • Country of Origin : United States
    • Width : 361 mm
    • Height : 770 mm
    • Weight : 16.780 kg
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : surface cover
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
