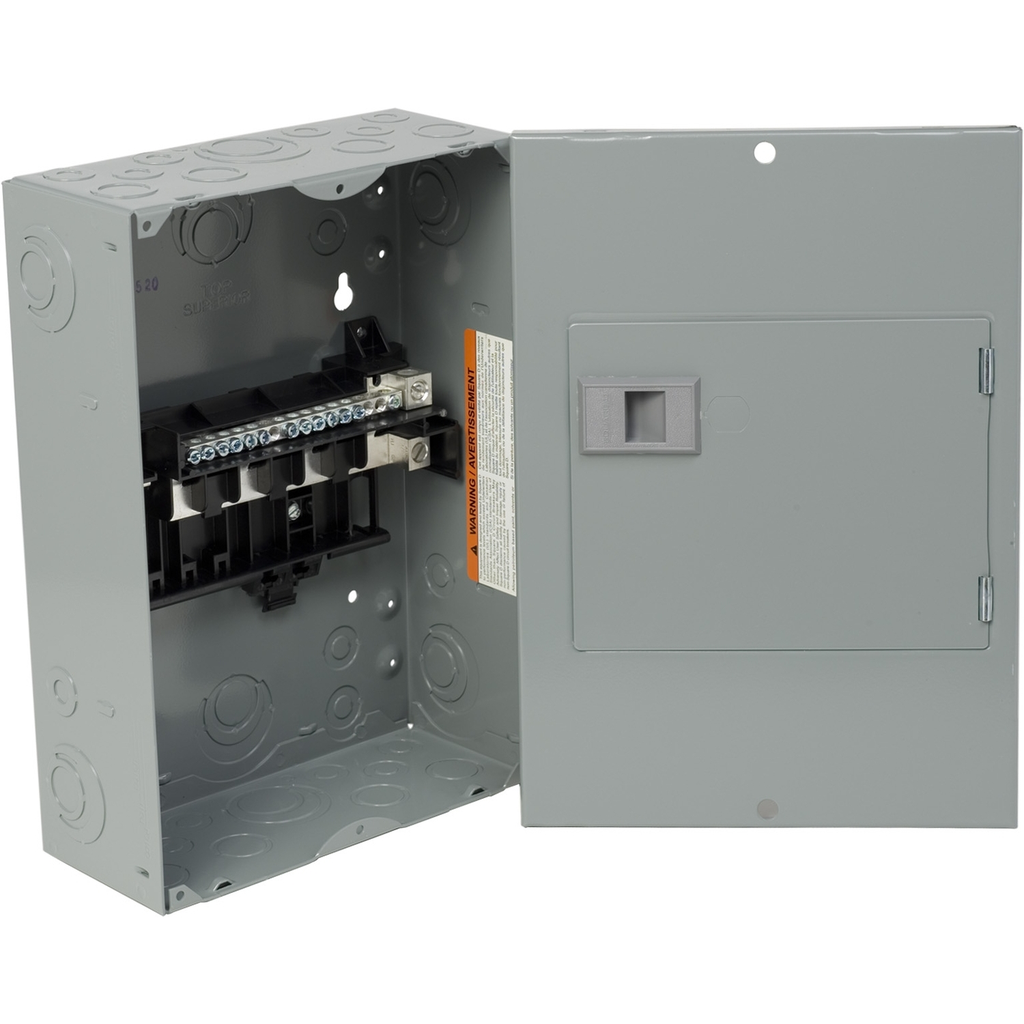

Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, gnd bar, door surface cover, CSA

LD CTR QO MLO 240V 100A 1PH 8S

SQDQO816L100DTS QO816L100DTS 785901804451
130.21 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, gnd bar, door surface cover, CSA-1
  • Country of Origin: Mexico
  • Cover Type: Surface Cover With Door
  • Enclosure Material: Welded Sheet Steel
  • Number of Circuits: 16
  • Number of Spaces: 8, 8
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, door surface cover, and is CSA rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, door surface cover, and is CSA rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Ue Rated Operational Voltage : 120/240 V AC
    • Line Rated Current : 100 A
    • Rated Current : 100 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • Awg Gauge : AWG 4...AWG 1 aluminium/copper
    • Electrical Connection : lugs
    • Material : tin plated aluminium: busbar
    • Number Of Spaces : 8, 8
    • Phase : 1 phase 3 wires
    • Surface Finish : baked enamel Gray
    • Tightening Torque : main lugs 50 lb.in, AWG 8, aluminium/copper, main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : single-phase main lug only indoor load center
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2531
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Box Number : 4
    • Cover Type : surface cover with door
    • Device Composition : grounding bar (factory installed)
    • Enclosure Material : welded sheet steel
    • Energy Efficiency Optimized : False
    • Load Center Type : Fixed Mains (lugs)
    • Number Of Circuits : 16
    • Number Of Tandem Circuit Breakers : 8
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2212003EN
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 319 mm
    • Width Nominal : 226 mm
    • Certificate Agency : cULus
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -5 °C, -5 °C, 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212003EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212003EN
  • General Attributes
    • Phase : 1 phase 3 wires
    • Product Or Component Type : Load Center
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
