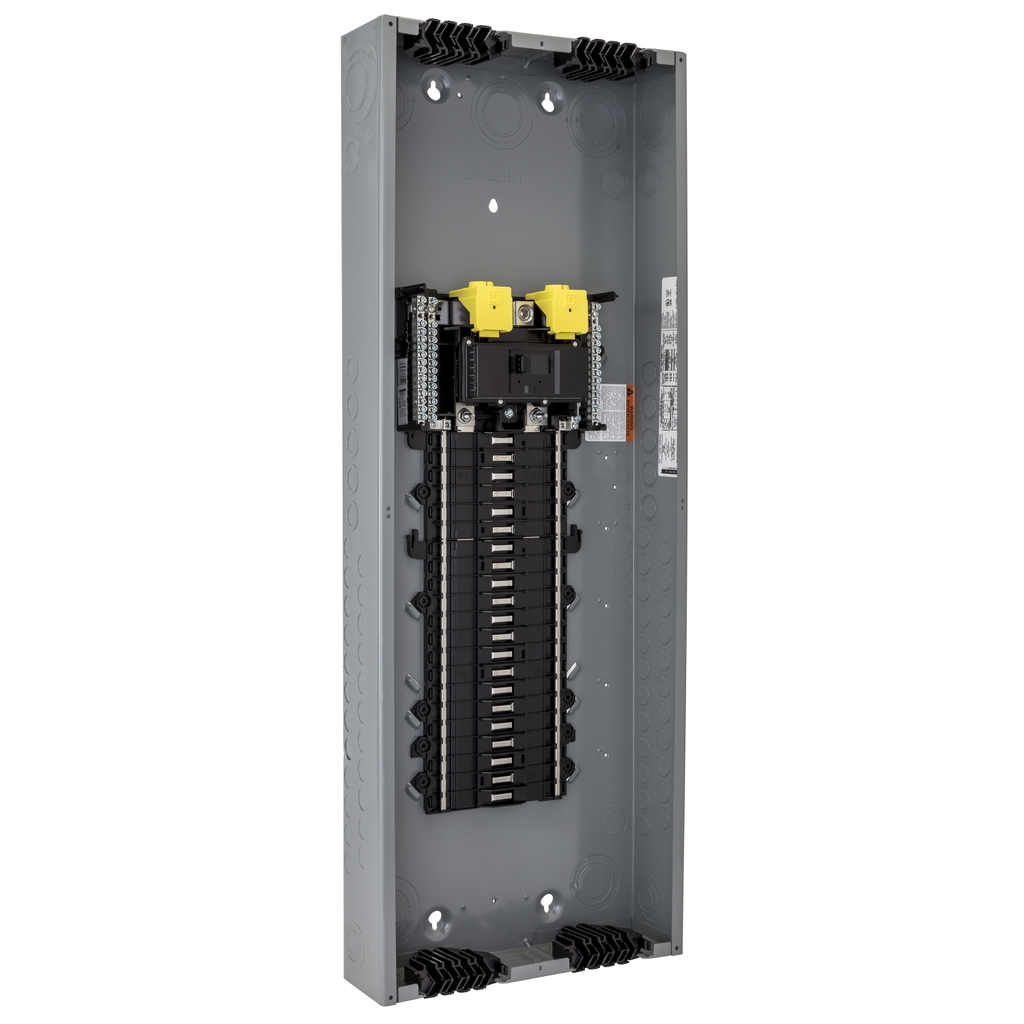

Load center, QO, 1 phase, 42 spaces, 52 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip

QO QWIK GRIP LC N1 1PH MB 200A

SQDQO142M200PQ QO142M200PQ 785901609667
302.51 / EA
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 42 spaces, 52 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip-2
  • Country of Origin: USA
  • Depth: 3.74 in
  • Enclosure Material: Welded Sheet Steel
  • Height: 39.37 in
  • Number of Circuits: 52
  • Number of Spaces: 42
  • Width: 14.25 in
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0082322069
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 1 kg CO2 eq.
    • 1.0938759401
  • Provided Equipment
    • qwik grip assembly kit 1 )
  • Ue Rated Operational Voltage
    • 120/240 V AC
  • Material
    • copper: busbar
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 75 kg CO2 eq.
    • 75.2863691176
  • Nema Degree Of Protection
    • NEMA 1 indoor enclosure
  • Accessories
    • LK225AN
    • PK4MB2HA
    • PK6FL
  • Persona Type Names
    • End User
    • Contractor
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0.1 kg CO2 eq.
    • 0.087341
  • Persona Type Ids
    • EU
    • LC
  • Carbon Footprint Of The Distribution Phase A4
    • 3.5267266071
    • 4 kg CO2 eq.
  • Tightening Torque
    • Cover 20 lb.in
  • Awg Gauge
    • AWG 4...300 kcmil aluminium/copper
  • Ambient Air Temperature For Operation
    • -5 °C
    • 40 °C
  • Surface Finish
    • baked enamel Gray
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 200 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-31
    • Manufacturing Carbon Footprint : 75.2863691176
    • Distribution Carbon Footprint : 3.5267266071
    • Installation Carbon Footprint : 0.0082322069
    • Use Carbon Footprint : 0.087341
    • End Of Life Carbon Footprint : 1.0938759401
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant with Exemptions
    • China Rohs In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : L - LOB initialized
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
    • Box Number : 11Q
    • Device Composition : grounding bar (ordered separately)
    • Enclosure Material : welded sheet steel
    • Energy Efficiency Optimized : False
    • Load Center Type : PoN Convertible Mains (breaker)
    • Number Of Circuits : 52
    • Number Of Spaces : 42
    • Number Of Tandem Circuit Breakers : 10
    • Package Weight Lbs : 10.433 kg
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 22 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 80 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 80.0025448718
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Load Center
    • Range Of Product : QO
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 80.0025448718
    • Environmental Disclosure : ENVPEP2212001
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : United States
    • Height : 39.37 in
    • Width : 14.25 in
    • Depth : 3.74 in
