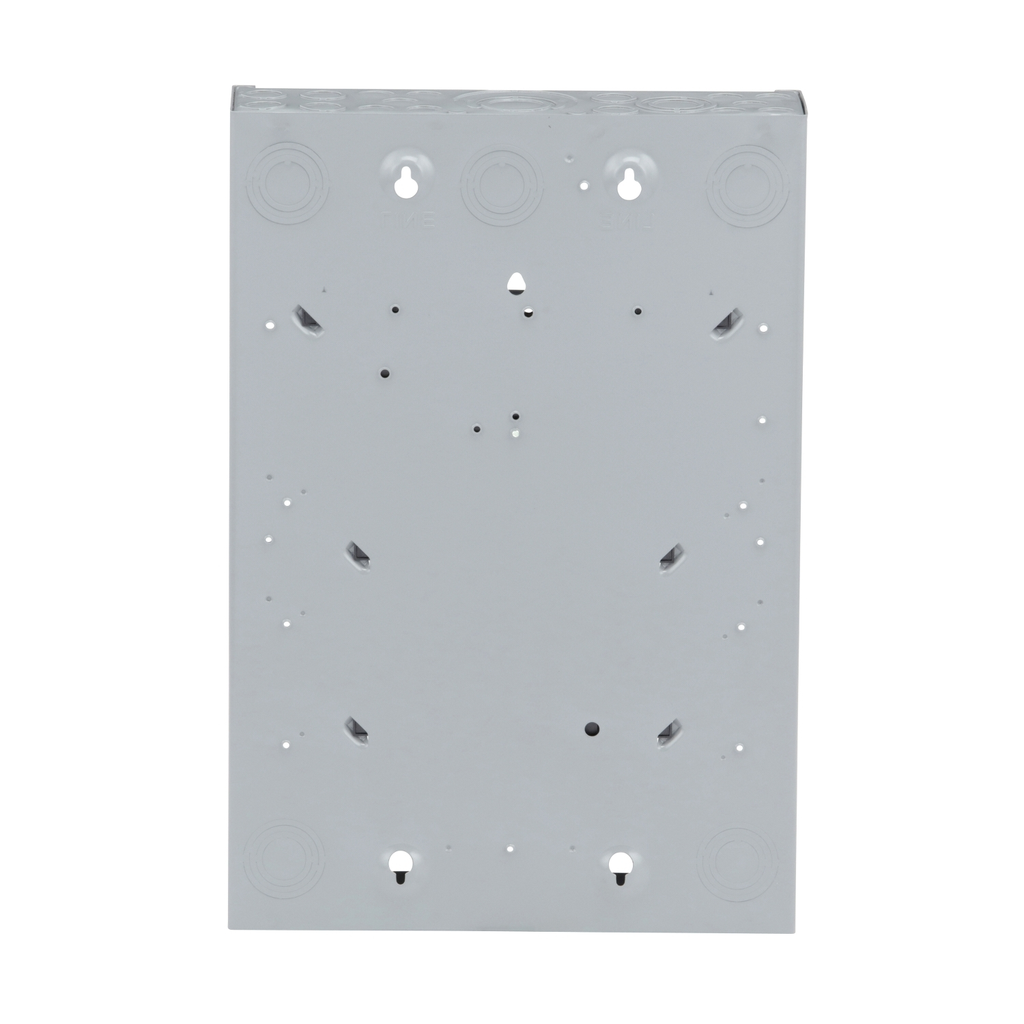

Load center, QO, 1 phase, 24 spaces, 34 circuits, 100A convertible main breaker, PoN, NEMA1

QO PLUG-ON NEUT LC N1 1PH M 24

SQDQO124M100P QO124M100P 785901228769
118.65 / EA
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 24 spaces, 34 circuits, 100A convertible main breaker, PoN, NEMA1-2
  • Country of Origin: USA
  • Cover Type: Order Separately
  • Enclosure Material: Welded Sheet Steel
  • Height: 531 mm
  • Number of Circuits: 34
  • Number of Spaces: 24
  • Short Circuit Current Rating: 22 kA
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
  • Width: 362 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 34 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 34 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 45.663442125
  • Complementary
    • Height : 531 mm
    • Phase : 1 phase 3 wires
    • Tightening Torque : Cover 20 lb.in
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Electrical Connection : lugs
    • Number Of Circuits : 34
    • Number Of Spaces : 24
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 10
    • Material : tin plated copper: busbar
    • Surface Finish : baked enamel Gray
    • Line Rated Current : 100 A
    • Enclosure Material : welded sheet steel
    • Awg Gauge : AWG 6...AWG 2/0 aluminium/copper
    • Width : 362 mm
    • Load Center Type : PoN Convertible Mains (breaker)
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 7
  • Specifications
    • Country of Origin : United States
    • Width : 362 mm
    • Height : 531 mm
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : order separately
