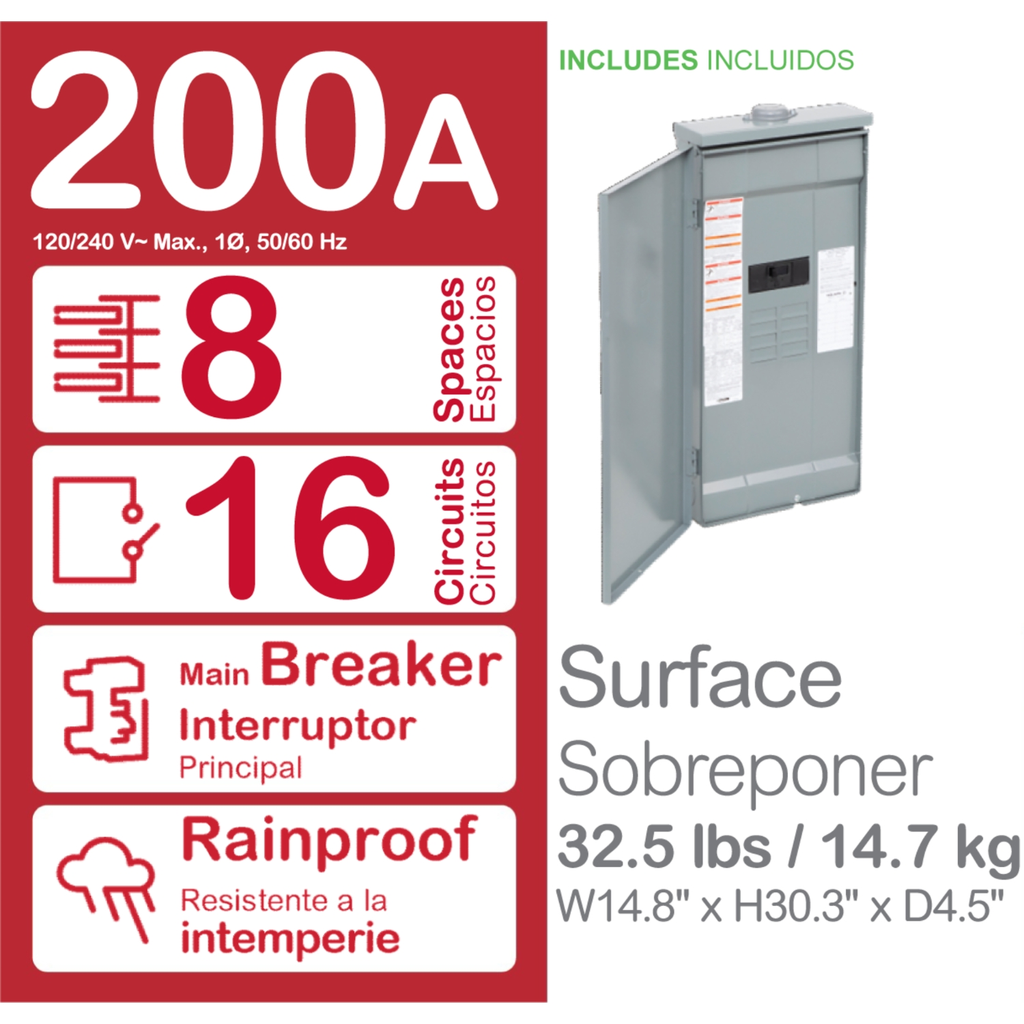

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 8 spaces in a NEMA 3R rain proof enclosure. The electrical connections are feed thru lugs. The lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 29.84 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.

• Prop 65
• "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1403002
• Packaging Without Single Use Plastic : No
• Toxic Heavy Metal Free : Yes
• California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
• Circularity Profile : N/A
• Take-Back : No
• Eu Rohs Directive : Compliant
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 82.2714358301
• Specifications
• Country of Origin : United States
• Width : 375 mm
• Height : 758 mm
• Range Of Product : Homeline
• Provided Equipment : circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
• Product Or Component Type : Load Center
• Electrical Connection : feed-thru lugs
• Number Of Circuits : 16
• Number Of Spaces : 8
• Cover Type : surface cover
• Nema Degree Of Protection : NEMA 3R weatherproof enclosure
• Line Rated Current : 200 A
• Load Center Type : PoN Convertible Mains (breaker)
• Complementary
• Height : 758 mm
• Phase : 1 phase 3 wires
• [Ue] Rated Operational Voltage : 120/240 V AC
• Bus Rated Current : 225.0 A
• Short-Circuit Current : 22 kA
• Number Of Tandem Circuit Breakers : 8
• Material : tin plated aluminium: busbar
• Surface Finish : baked enamel Gray
• Enclosure Material : welded galvannealed steel
• Awg Gauge : AWG 4...250 kcmil copper or aluminium
• Width : 375 mm
• Depth : 115 mm
• Device Composition : grounding bar (ordered separately)
• Box Number : 6R
• Environment
• Product Certifications : UL listed file E-6294
• Ambient Air Temperature For Operation : -5 °C || 40 °C
