SQUARE D

Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 225A convertible main lugs, PoN, NEMA1, combo cover

HOM INDR 225A MLO 60/120CIR

SQDHOM60120L225PC HOM60120L225PC 785901974314
641.94 / EACH
http://schema.org/OutOfStock
  • Certifications: UL Listed File E-6294
  • Depth: 95 mm
  • Enclosure Material: Welded Sheet Steel
  • Height: 1235 mm
  • IsSustainable: No
  • Line Rated Current: 225 A
  • Material: Tin Plated Aluminium: Busbar
  • Number of Circuits: 120
  • Number of Phases: 1
  • Short Circuit Current: 10 kA
  • Width: 362 mm

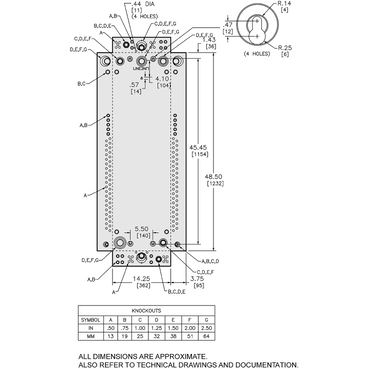

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 60 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. This Homeline load center has a height of 48.62 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. HOM Homeline load centers are UL Listed.
QTY
  • Product Description
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 60 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. This Homeline load center has a height of 48.62 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. HOM Homeline load centers are UL Listed.
  • Complementary
    • Height : 1235 mm
    • Bus Rated Current : 225.0 A
    • Phase : 1 phase
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 60
    • Material : tin plated aluminium: busbar
    • Surface Finish : baked enamel Gray
    • Enclosure Material : welded sheet steel
    • Awg Gauge : AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
    • Width : 362 mm
    • Wiring Configuration : 3-wire
    • Depth : 95 mm
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 25
  • Specifications
    • Range Of Product : Homeline
    • Product Or Component Type : Load Center
    • Number Of Circuits : 120
    • Number Of Spaces : 60
    • Nema Degree Of Protection : NEMA 1 indoor
    • Cover Type : combination flush/surface cover
    • Line Rated Current : 225 A
    • Load Center Type : PoN Convertible Mains (lugs)
  • Environment
    • Product Certifications : UL listed file E-6294
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Eu Rohs Directive : Compliant
