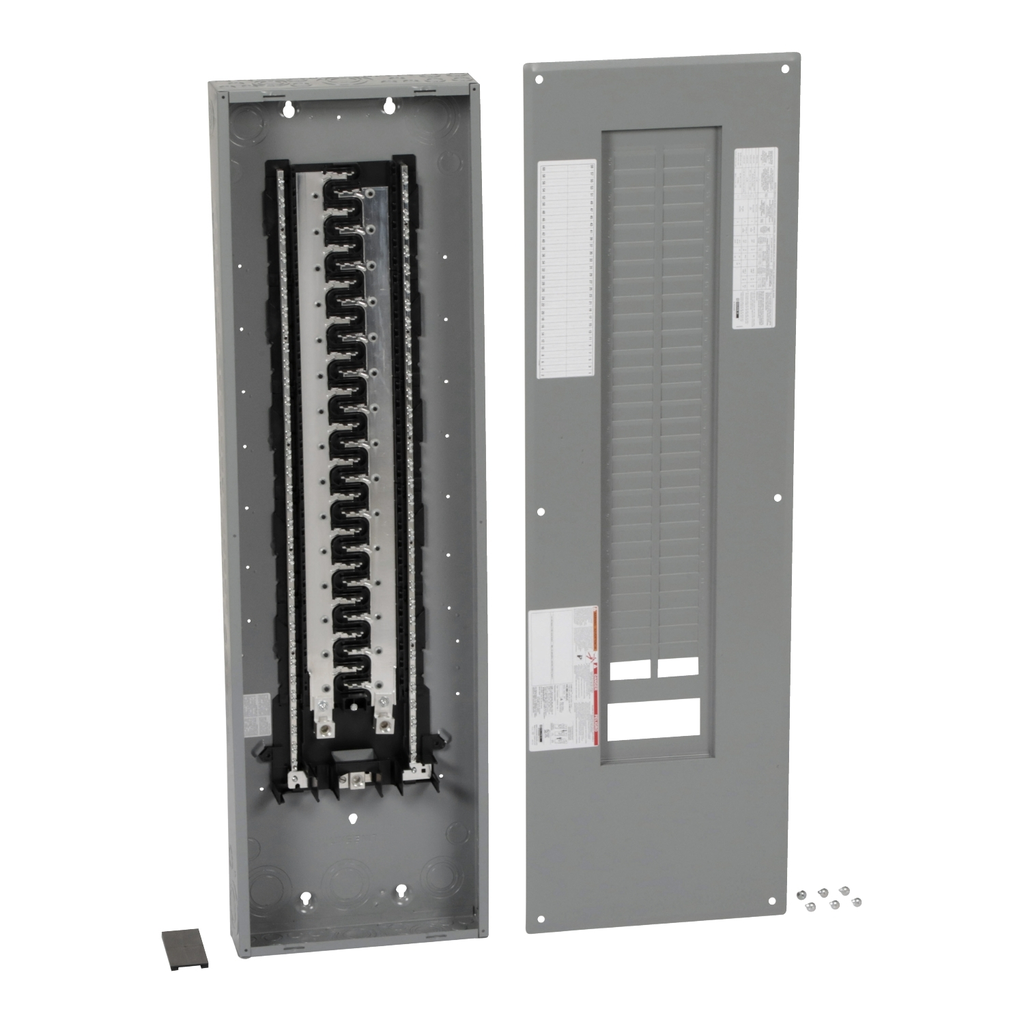

Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

SQDHOM60120M200PC HOM60120M200PC 785901974055
488.06 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover-2
  • Country of Origin: USA
  • Cover Type: Combination Flush/surface Cover
  • Number of Spaces: 60
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o
QTY
  • Product Description
  • Features
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0800344678
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 2 kg CO2 eq.
    • 1.8477474453
  • Provided Equipment
    • circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
    • circuit-breaker 1 ) 2P 200 A 120/240 V AC ma
  • Phase
    • 1 phase 3 wires
  • Material
    • tin plated aluminium: busbar
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 99 kg CO2 eq.
    • 98.9344116177
  • Nema Degree Of Protection
    • NEMA 1 indoor enclosure
  • Accessories
    • HOMCGK2C
    • HOMFPCP
  • Persona Type Names
    • End User
    • Consumer
    • Contractor
    • Original Equipment Manufacturer
    • Electrician
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0.1 kg CO2 eq.
    • 0.087341
  • Persona Type Ids
    • EU
    • EUA
    • LC
    • OM
    • SC
  • Carbon Footprint Of The Distribution Phase A4
    • 2.55161594
    • 3 kg CO2 eq.
  • AWG Gauge
    • AWG 4...250 kcmil copper or aluminium
  • UE Rated Operational Voltage
    • 120/240 V AC
  • Surface Finish
    • baked enamel Gray
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=PWFDS-SYRS-0081
  • Complementary Attributes
    • Bus Rated Current : 225.0 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Fast installation, reliability, and superior circuit protection
    • B2B Bullet Point 2 : Protects against equipment overloads and short-circuits
    • B2B Bullet Point 3 : Tin and copper plated aluminum bus bars
    • B2B Bullet Point 4 : Replacement covers in gray and white
    • B2B Bullet Point 5 : Distributed neutral bars keeps wiring tidy
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-09
    • Manufacturing Carbon Footprint : 98.9344116177
    • Distribution Carbon Footprint : 2.55161594
    • Installation Carbon Footprint : 0.0800344678
    • Use Carbon Footprint : 0.087341
    • End Of Life Carbon Footprint : 1.8477474453
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 2531
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Return Indicator : Y
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
    • Cover Type : combination flush/surface cover
    • Electrical Connection : lugs
    • Energy Efficiency Optimized : False
    • Load Center Type : PoN Convertible Mains (breaker)
    • Number Of Spaces : 60
    • Number Of Tandem Circuit Breakers : 60
    • Package Weight Lbs : 19.777 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : Homeline
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 104 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 103.501150471
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2212003EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 19777
    • Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 0.126144
    • Energy Model Manufacturing A1 A3 : Energy model used: Tlaxcala Mexico
    • Energy Model Installation A5 : Electricity mix; AC; 120V; US
    • Energy Model Use B6 : Electricity mix; AC; 120V; US
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0225071526
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0225069919
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000001021
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.000000003
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000000009
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000548
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 1019.260652123
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 959.8453803873
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 35.84936396
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.0343951587
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1.0634
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 21.4681126171
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.004603841
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0004327593
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0041710817
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 1796.5556471965
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1776.1005996252
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000084987
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0023352
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 20.4527038726
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0429349899
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0429349899
    • Materials For Recycling Kg Total Life Cycle : 19.9226407433
    • Materials For Recycling Kg Manufacturing A1 A3 : 1.9667059151
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 1.4524545034
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 16.5034803248
    • Net Use Of Fresh Water M3 Total Life Cycle : 7.0743273495
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 7.0717907308
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0002283681
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000095499
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.00015436
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0021443407
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 123.7730231319
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 123.5661030606
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0906604362
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0204329392
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.013355
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0824716959
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000122366
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000121182
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000052
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000002
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000000016
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000001114
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0465308846
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0463357445
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000645711
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000024417
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0000013741
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0001267532
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1945.012508158
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1880.1120549656
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 36.0309516552
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.0412633735
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 26.7230381636
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1982.9639443111
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1917.9119425359
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 36.0791279825
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 1.0431533679
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1.1758
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 26.7539204247
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 37.8924024287
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 37.7418289194
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0480812099
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0018883885
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0299879108
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 31.3282009369
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 31.3282009369
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1913.7596599382
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1848.8592067458
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 36.0309516552
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.0412633735
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 26.7230381636
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 28.899619925
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 28.899619925
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8.9930295617
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.8424560525
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0480812099
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0018883885
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0299879108
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.4064599675
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.4064599675
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 32720.0101133791
    • Air Pollution M3 Manufacturing A1 A3 : 32411.5506558401
    • Air Pollution M3 Distribution A4 : 108.5462065584
    • Air Pollution M3 Installation A5 : 3.2742608495
    • Air Pollution M3 Operational Energy Use B6 : 7.4172
    • Air Pollution M3 End Of Life C1 C4 : 189.2217901312
    • Water Pollution M3 Total Life Cycle : 5287.3772922299
    • Water Pollution M3 Manufacturing A1 A3 : 4646.2979450344
    • Water Pollution M3 Distribution A4 : 419.6158107433
    • Water Pollution M3 Installation A5 : 12.0994228357
    • Water Pollution M3 Operational Energy Use B6 : 4.3059
    • Water Pollution M3 End Of Life C1 C4 : 205.0582136165
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.4040365706
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0343494491
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0489270915
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.3866459088
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0116506418
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0003331578
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.000083625
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0053232371
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 103.501150471
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 98.9344116177
    • Global Warming Kg Equivalent Co2 Distribution A4 : 2.55161594
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0800344678
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 0.087341
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 1.8477474453
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0329056668
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0008313999
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000249109
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.000013395
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0005740765
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0448595725
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0026834214
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000845223
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.000022038
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0012775374
  • General Attributes
    • Product Or Component Type : Load Center
    • Range Of Product : Homeline
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423254094&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 103.501150471
    • Environmental Disclosure : ENVPEP2212003EN
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212003EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : United States
