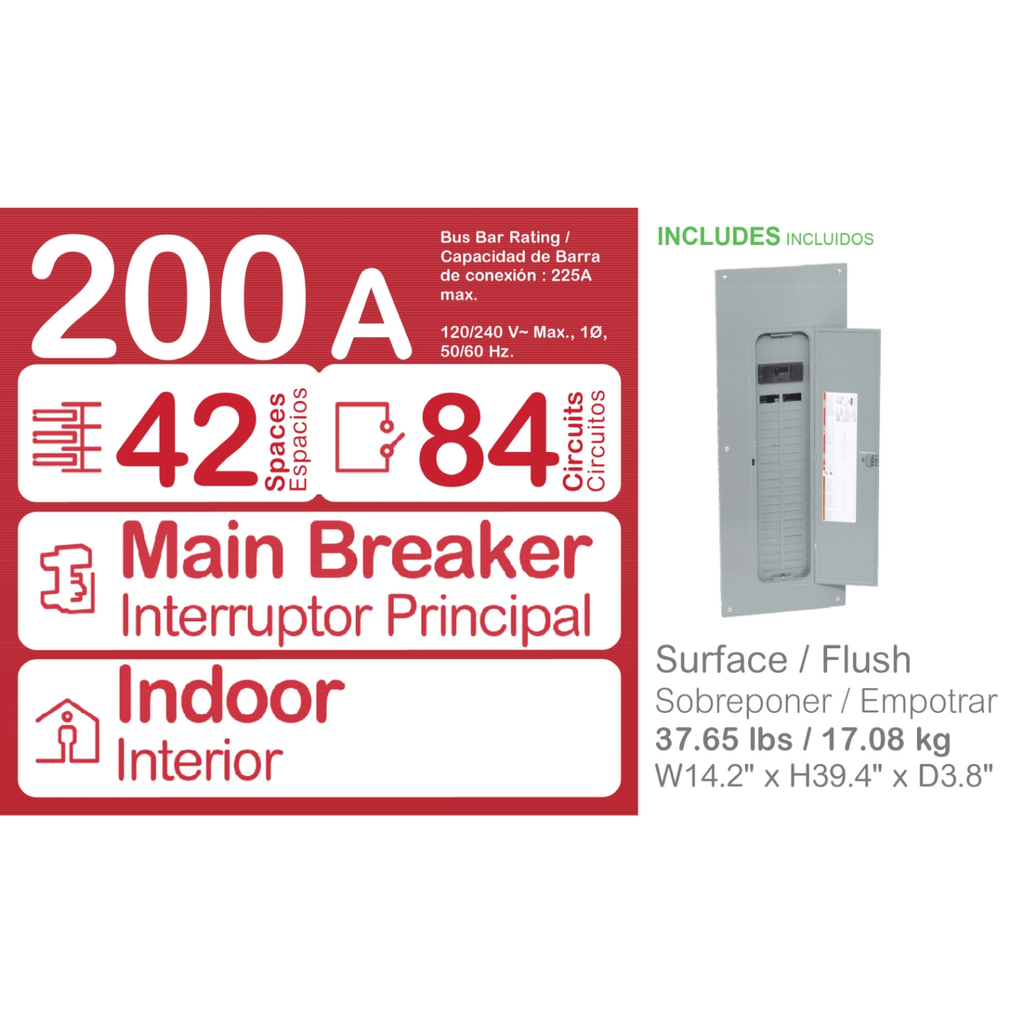

Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

HOM INDR 200A MB 42/84CIR

SQDHOM4284M200PC HOM4284M200PC 785901974383
320.68 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover-2
  • Cover Type: Combination Flush/surface Cover
  • Surface Finish: Baked Enamel Gray, Baked Enamel Gray
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 42 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 42 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, SC
    • Persona Type Names : End User, Consumer, Contractor, Electrician
    • AWG Gauge : AWG 4...250 kcmil copper or aluminium, AWG 4...250 kcmil copper or aluminium
    • Material : tin plated aluminium: busbar, tin plated aluminium: busbar
    • Phase : 1 phase 3 wires, 1 phase 3 wires
    • Provided Equipment : circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
    • Surface Finish : baked enamel Gray, baked enamel Gray
    • Carbon Footprint Of The Distribution Phase A4 : 5.7868849469, 6 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.5994128795
    • Carbon Footprint Of The Installation Phase A5 : 0.0692779519, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 86 kg CO2 eq., 85.6377707683
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.087341
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
    • Cover Type : combination flush/surface cover
    • Electrical Connection : lugs
    • Energy Efficiency Optimized : False
    • Load Center Type : PoN Convertible Mains (breaker)
    • Package Weight Lbs : 17.119 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : Homeline
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 93 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2212003EN
    • Pep Verification Date : 2025-08-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • Nema Degree Of Protection : NEMA 1 indoor enclosure, NEMA 1 indoor enclosure
    • Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 93.1806875465
    • Environmental Disclosure : ENVPEP2212003EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Pep Code : ENVPEP2212003EN
    • Pep Verification Date : 2025-08-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • Complementary Attributes
    • UE Rated Operational Voltage : 120/240 V AC, 120/240 V AC
    • Bus Rated Current : 225.0 A
  • General Attributes
    • Phase : 1 phase 3 wires, 1 phase 3 wires
    • Provided Equipment : circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
    • Product Or Component Type : Load Center
    • Range Of Product : Homeline
