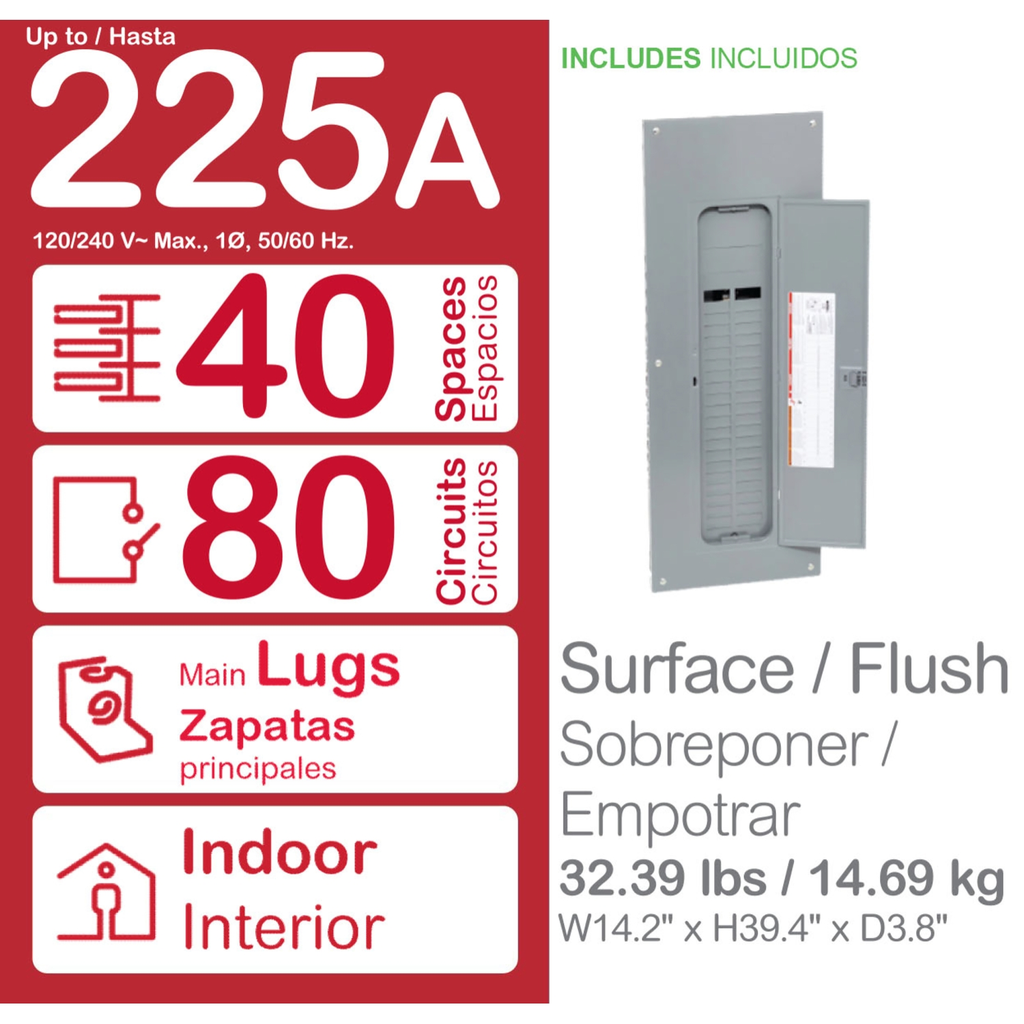

Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 225A convertible main lugs, PoN, NEMA1, combo cover

HOM INDR 225A MLO 40/80CIR

SQDHOM4080L225PC HOM4080L225PC 785901978145
214.33 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 225A convertible main lugs, PoN, NEMA1, combo cover-2
  • Country of Origin: USA
  • Cover Type: Combination Flush/surface Cover
  • Depth: 3.74 in
  • Enclosure Material: Welded Sheet Steel
  • Height: 39.37 in
  • Number of Spaces: 40
  • Width: 14.25 in
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o
QTY
  • Product Description
  • Features
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.06479
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 1 kg CO2 eq.
    • 1.4958
  • Provided Equipment
    • grounding bar 1 )
  • Ue Rated Operational Voltage
    • 120/240 V AC
  • Phase
    • 1 phase 3 wires
  • Material
    • tin plated aluminium: busbar
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 80 kg CO2 eq.
    • 80.09
  • Nema Degree Of Protection
    • NEMA 1 indoor enclosure
  • Persona Type Names
    • End User
    • Consumer
    • Contractor
    • Original Equipment Manufacturer
    • Electrician
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0.1 kg CO2 eq.
    • 0.087341
  • Number Of Circuits
    • 6 standard
  • Persona Type Ids
    • EU
    • EUA
    • LC
    • OM
    • SC
  • Carbon Footprint Of The Distribution Phase A4
    • 2.0656
    • 2 kg CO2 eq.
  • Awg Gauge
    • AWG 4...250 kcmil copper
    • AWG 4...300 kcmil aluminium
    • AWG 4...250 kcmil aluminium/copper
  • Ambient Air Temperature For Operation
    • -5 °C
    • 40 °C
  • Surface Finish
    • baked enamel Gray
    • baked enamel White
  • Product Certifications
    • UL listed file E-6294
    • UL Listed
  • Complementary Attributes
    • Bus Rated Current : 225.0 A
    • Line Rated Current : 225 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • Manufacturing Carbon Footprint : 80.09
    • Distribution Carbon Footprint : 2.0656
    • Installation Carbon Footprint : 0.06479
    • Use Carbon Footprint : 0.087341
    • End Of Life Carbon Footprint : 1.4958
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2531
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
    • Box Number : 12
    • Cover Type : combination flush/surface cover
    • Device Composition : grounding bar (ordered separately)
    • Electrical Connection : lugs
    • Enclosure Material : welded sheet steel
    • Energy Efficiency Optimized : False
    • Load Center Type : PoN Convertible Mains (lugs)
    • Number Of Spaces : 40
    • Number Of Tandem Circuit Breakers : 40
    • Package Weight Lbs : 16.012 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : Homeline
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 84 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 83.804
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : Load Center
    • Range Of Product : Homeline
  • Environment Attributes
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 83.804
    • Environmental Disclosure : ENVPEP1403002
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : United States
    • Height : 39.37 in
    • Width : 14.25 in
    • Depth : 3.74 in
