SQUARE D

Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA3R, gnd bar

LD CTR HOM MLO 240V 125A 1 PH

SQDHOM48L125GRB HOM48L125GRB 785901484370
76.03 / EACH
http://schema.org/OutOfStock
Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA3R, gnd bar
  • Certifications: UL Listed File E-6294
  • Depth: 108 mm
  • Enclosure Material: Steel
  • Height: 376 mm
  • Line Rated Current: 125 A
  • Material: Tin Plated Aluminium: Busbar
  • Number of Circuits: 8
  • Number of Phases: 1
  • Short Circuit Current: 10 kA
  • Warranty Length: Lifetime
  • Width: 226 mm
QTY
  • Product Description
  • Specifications

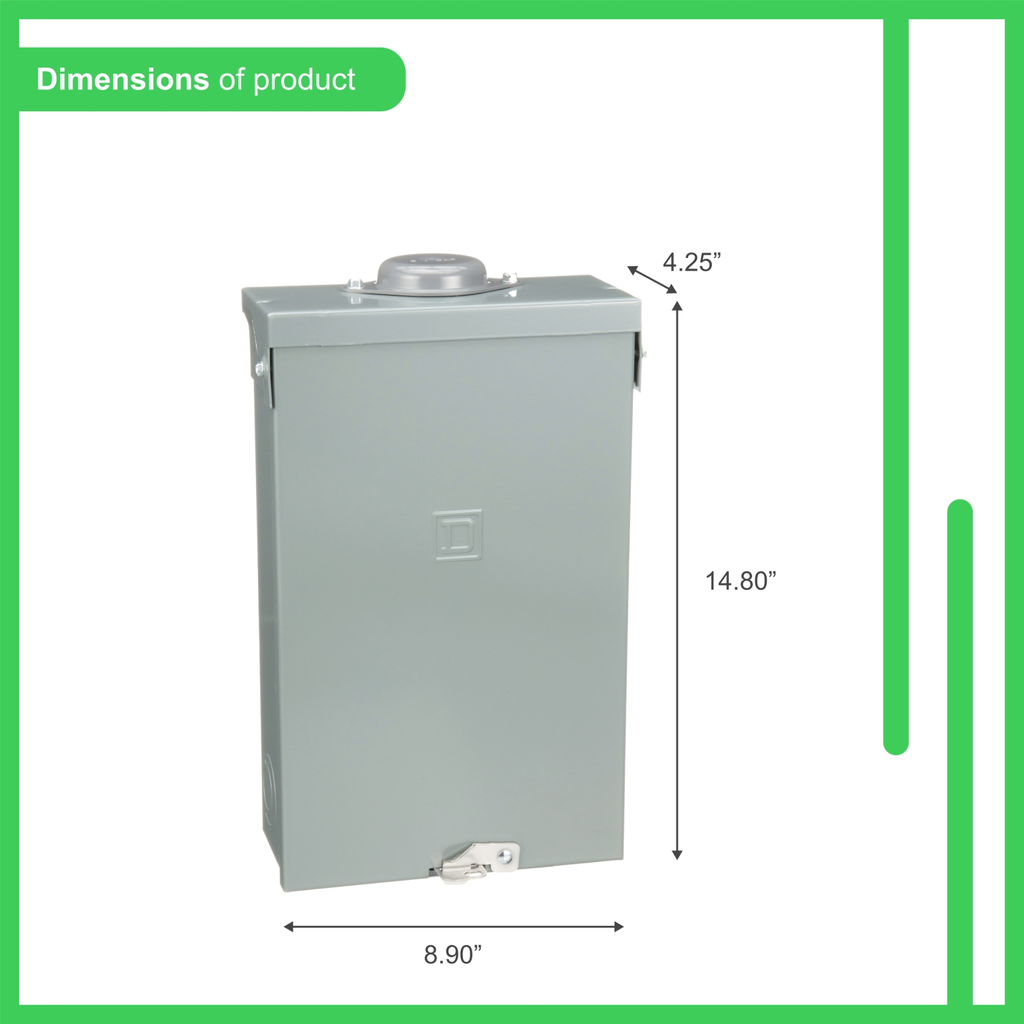

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 4 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 2/0 copper or 12 AWG to 2/0 AWG aluminum wire. Load center has a grounding bar. This Homeline load center has a height of 14.80 inches, a width of 8.89 inches, and depth of 4.25 inches. Homeline load centers are UL Listed.
  • Environment
    • Product Certifications : UL listed file E-6294
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Contractual warranty
    • Warranty : Lifetime
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403002
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 376 mm
    • Bus Rated Current : 125.0 A
    • Phase : 1 phase
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 4
    • Material : tin plated aluminium: busbar
    • Surface Finish : baked enamel Gray
    • Enclosure Material : welded galvannealed steel
    • Awg Gauge : AWG 14...AWG 2/0 copper || AWG 12...AWG 2/0 aluminium
    • Width : 226 mm
    • Wiring Configuration : 3-wire
    • Depth : 108 mm
    • Device Composition : grounding bar included (not installed)
    • Box Number : 15R
  • Specifications
    • Range Of Product : Homeline
    • Provided Equipment : grounding bar 1 )
    • Product Or Component Type : Load Center
    • Number Of Circuits : 8
    • Number Of Spaces : 4
    • Nema Degree Of Protection : NEMA 3R outdoor
    • Cover Type : surface cover
    • Line Rated Current : 125 A
    • Load Center Type : Fixed Mains (lugs)
