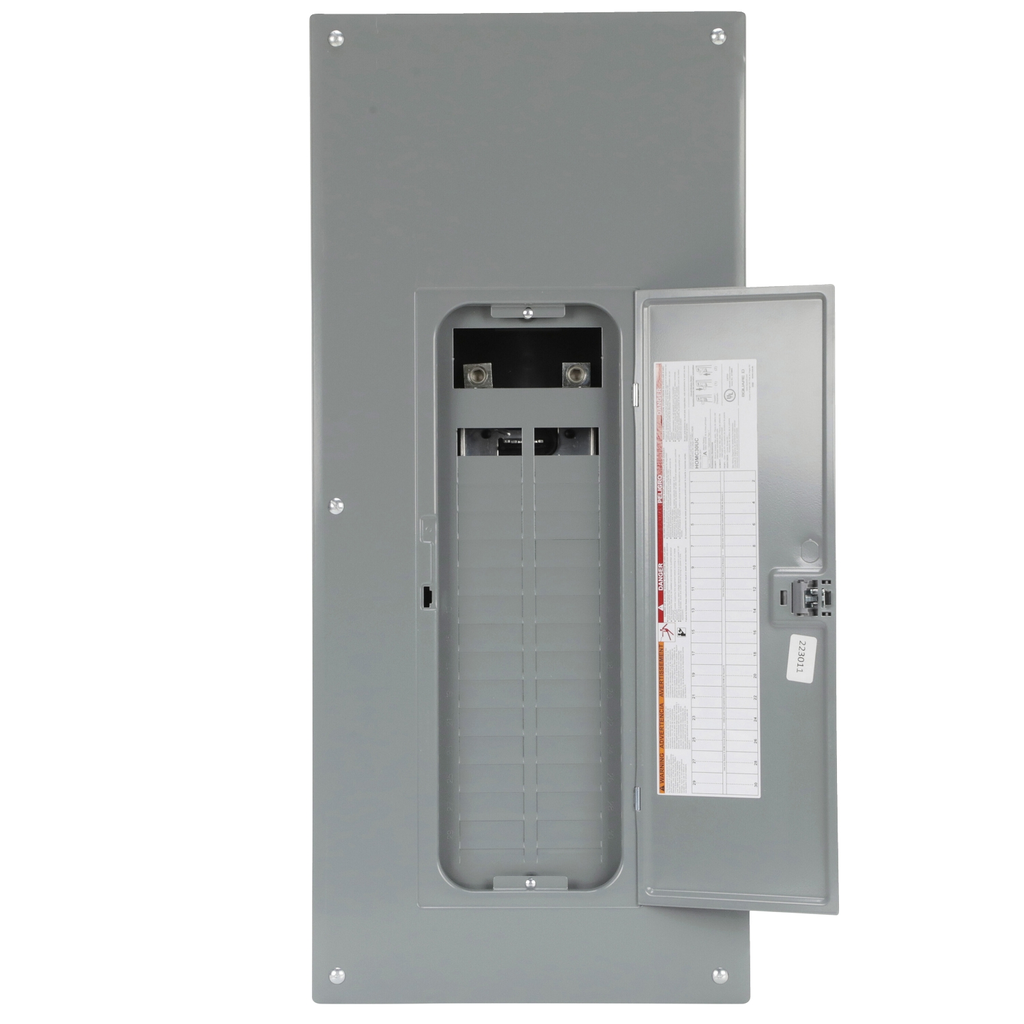

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0562511555
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 1.2986645846
• Provided Equipment
• grounding bar 1 )
• Ue Rated Operational Voltage
• 120/240 V AC
• Phase
• 1 phase 3 wires
• Material
• tin plated aluminium: busbar
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 70 kg CO2 eq.
• 69.5347282948
• Nema Degree Of Protection
• NEMA 1 indoor enclosure
• Persona Type Names
• End User
• Consumer
• Contractor
• Original Equipment Manufacturer
• Electrician
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0.1 kg CO2 eq.
• 0.087341
• Persona Type Ids
• EU
• EUA
• LC
• OM
• SC
• Carbon Footprint Of The Distribution Phase A4
• 1.7933691443
• 2 kg CO2 eq.
• Awg Gauge
• AWG 4...250 kcmil copper
• AWG 4...300 kcmil aluminium
• Ambient Air Temperature For Operation
• -5 °C
• 40 °C
• Surface Finish
• baked enamel Gray

• Conformance Attributes
• Product Certifications : UL listed file E-6294
• Complementary Attributes
• Bus Rated Current : 225.0 A
• Line Rated Current : 225 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-18
• Baan Price : 433.34
• Baan Currency : USD
• Manufacturing Carbon Footprint : 69.5347282948
• Distribution Carbon Footprint : 1.7933691443
• Installation Carbon Footprint : 0.0562511555
• Use Carbon Footprint : 0.087341
• End Of Life Carbon Footprint : 1.2986645846
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2531
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
• Box Number : 10
• Cover Type : combination flush/surface cover
• Device Composition : grounding bar included (not installed)
• Electrical Connection : lugs
• Enclosure Material : welded sheet steel
• Energy Efficiency Optimized : False
• Load Center Type : PoN Convertible Mains (lugs)
• Number Of Circuits : 60
• Number Of Spaces : 30
• Number Of Tandem Circuit Breakers : 30
• Package Weight Lbs : 13.9 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : Homeline
• Returnability : Yes
• Short Circuit Current : 10 kA
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 73 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 72.7703541793
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Load Center
• Range Of Product : Homeline
• Environment Attributes
• Take Back : No
• Reach Free Shvc : Yes
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 72.7703541793
• Environmental Disclosure : ENVPEP1403002
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Mexico
• Height : 33.78 in
• Width : 14.25 in
• Depth : 3.74 in
