SQUARE D

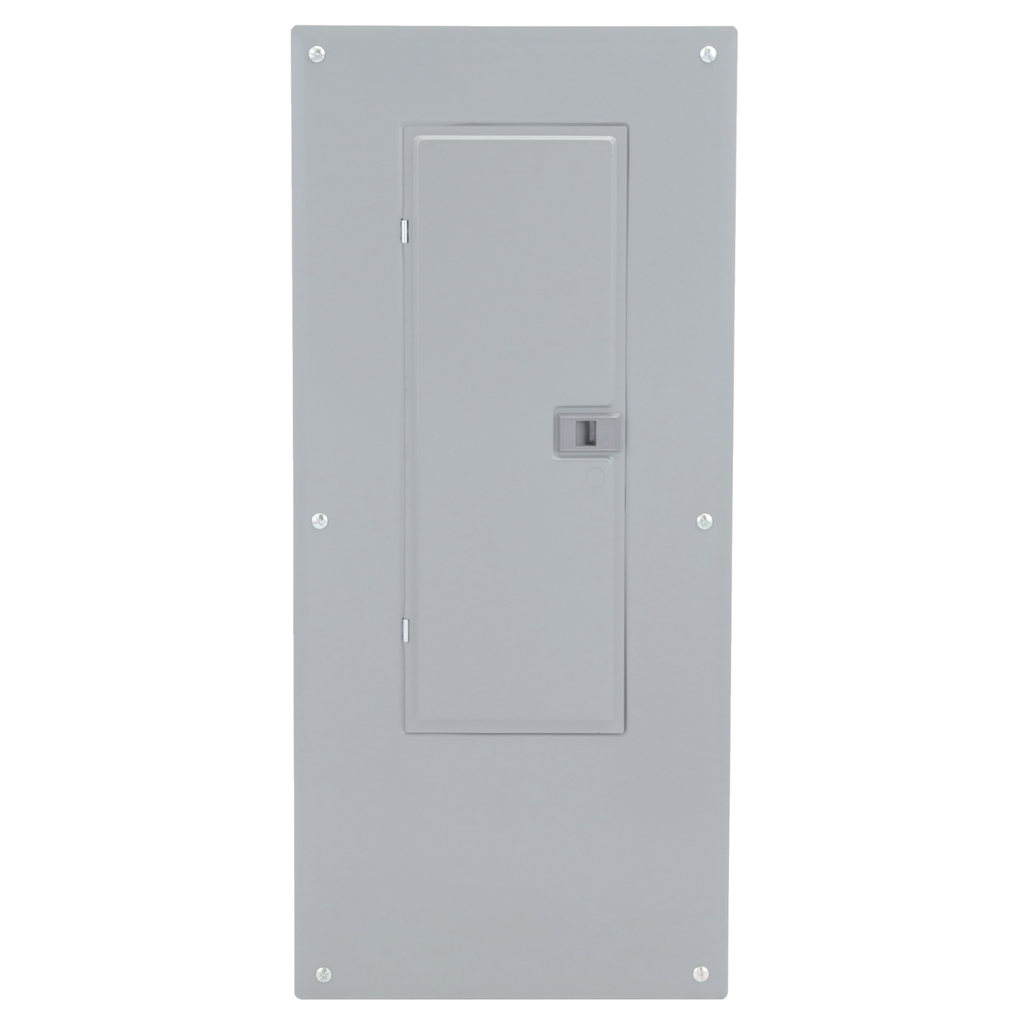

Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 200A convertible main breaker, PoN, NEMA1, gnd bar, bulk pack

HOM BULKPK INDR 200A MB 30/60C

SQDHOM3060M200PTBP HOM3060M200PTBP 785901978138
313.60 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 200A convertible main breaker, PoN, NEMA1, gnd bar, bulk pack-2
  • Certifications: UL Listed File E-6294
  • Depth: 95 mm
  • Enclosure Material: Welded Sheet Steel
  • Height: 858 mm
  • Line Rated Current: 200 A
  • Material: Tin Plated Aluminium: Busbar
  • Number of Circuits: 60
  • Number of Phases: 1
  • Short Circuit Current: 22 kA
  • Width: 362 mm
QTY
  • Product Description
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 1 indoor enclosure. The surface cover is to be ordered separately. Load center has a grounding bar. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 33.77 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. Load center is bulk packaged.
  • Complementary
    • Height : 858 mm
    • Bus Rated Current : 225.0 A
    • Type Of Packing : bulk
    • Phase : 1 phase
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 30
    • Material : tin plated aluminium: busbar
    • Surface Finish : baked enamel Gray
    • Enclosure Material : welded sheet steel
    • Awg Gauge : AWG 4...250 kcmil aluminium/copper
    • Width : 362 mm
    • Wiring Configuration : 3-wire
    • Depth : 95 mm
    • Box Number : 10
  • Specifications
    • Range Of Product : Homeline
    • Provided Equipment : grounding bar 1 ) || circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
    • Product Or Component Type : Load Center
    • Number Of Circuits : 60
    • Number Of Spaces : 30
    • Nema Degree Of Protection : NEMA 1 indoor
    • Cover Type : surface cover || order separately
    • Line Rated Current : 200 A
    • Load Center Type : PoN Convertible Mains (breaker)
  • Environment
    • Product Certifications : UL listed file E-6294
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403002
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
