SQUARE D

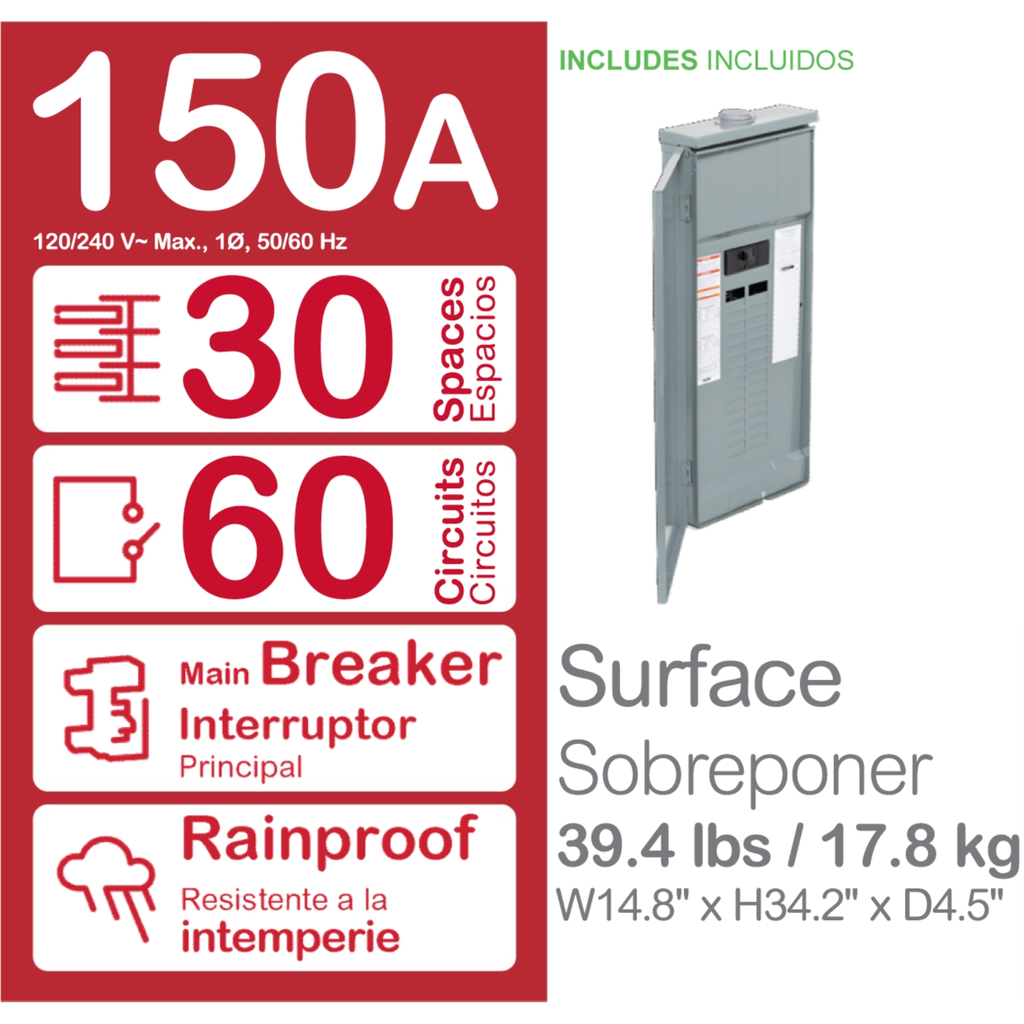

Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 150A convertible main breaker, PoN, NEMA3R

HOM OUTD 150A MD 30/60CIR

SQDHOM3060M150PRB HOM3060M150PRB 785901977735
359.19 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 150A convertible main breaker, PoN, NEMA3R-2
  • Country of Origin: USA
  • Cover Type: Surface Cover
  • Number of Spaces: 30
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o
QTY
  • Product Description
  • Features
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use o
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0714430144
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 2 kg CO2 eq.
    • 1.6493974516
  • Provided Equipment
    • circuit-breaker 1 ) 2P 150 A 120/240 V AC main supply ready assembled
    • circuit-breaker 1 ) 2P 150 A 120/240 V AC ma
  • Phase
    • 1 phase 3 wires
  • Material
    • tin plated aluminium: busbar
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 88 kg CO2 eq.
    • 88.3141074329
  • Nema Degree Of Protection
    • NEMA 3R weatherproof enclosure
  • Accessories
    • HOMFPCP
    • HOMRBGK2C
  • Persona Type Names
    • End User
    • Consumer
    • Contractor
    • Electrician
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0.1 kg CO2 eq.
    • 0.087341
  • Persona Type Ids
    • EU
    • EUA
    • LC
    • SC
  • Carbon Footprint Of The Distribution Phase A4
    • 2.2777078326
    • 2 kg CO2 eq.
  • AWG Gauge
    • AWG 4...250 kcmil aluminium/copper
  • UE Rated Operational Voltage
    • 120/240 V AC
  • Surface Finish
    • baked enamel Gray
  • Complementary Attributes
    • Bus Rated Current : 225.0 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Fast installation, reliability, and superior circuit protection
    • B2B Bullet Point 2 : Protects against equipment overloads and short-circuits
    • B2B Bullet Point 3 : Tin and copper plated aluminum bus bars
    • B2B Bullet Point 4 : Replacement covers in gray and white
    • B2B Bullet Point 5 : Distributed neutral bars keeps wiring tidy
    • B2B Bullet Point 6 : Compatible with Wiser Energy™ Smart Home Monitor to monitor and manage your energy usage
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-31
    • Manufacturing Carbon Footprint : 88.3141074329
    • Distribution Carbon Footprint : 2.2777078326
    • Installation Carbon Footprint : 0.0714430144
    • Use Carbon Footprint : 0.087341
    • End Of Life Carbon Footprint : 1.6493974516
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 2531
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
    • Cover Type : surface cover
    • Electrical Connection : lugs
    • Energy Efficiency Optimized : False
    • Load Center Type : PoN Convertible Mains (breaker)
    • Number Of Spaces : 30
    • Number Of Tandem Circuit Breakers : 30
    • Package Weight Lbs : 17.654 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : Homeline
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 92 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 92.3999967314
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2212003EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 17654
    • Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 0.126144
    • Energy Model Manufacturing A1 A3 : Energy model used: Tlaxcala Mexico
    • Energy Model Installation A5 : Electricity mix; AC; 120V; US
    • Energy Model Use B6 : Electricity mix; AC; 120V; US
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0200910793
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0200909357
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000912
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000027
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000000009
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000489
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 909.9603150518
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 856.8089369144
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 32.0010452217
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.9233560262
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1.0634
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 19.1635768894
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0041096329
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0003863039
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0037233289
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 1603.7011858844
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1585.4416739538
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000075864
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0023352
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 18.2571691443
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0383260511
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0383260511
    • Materials For Recycling Kg Total Life Cycle : 17.7840066583
    • Materials For Recycling Kg Manufacturing A1 A3 : 1.7555860962
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 1.2965379888
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 14.7318825734
    • Net Use Of Fresh Water M3 Total Life Cycle : 6.3149366807
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 6.3126557901
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0002038535
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000085248
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.00015436
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0019141523
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 110.4878041683
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 110.3016627108
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0809283178
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0182395262
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.013355
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0736186135
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000109232
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000108173
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000046
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000002
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000000016
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000995
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.041536085
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0413617452
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000576396
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000021796
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0000013741
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0001131466
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1736.3400494828
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1678.2878201124
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 32.1631400375
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.9294869594
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 23.8544023735
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1770.2250946184
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1712.0300062461
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 32.2061447845
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.9311740687
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1.1758
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 23.8819695191
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 33.8323502171
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 33.6903599001
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0429198402
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0016856758
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.026768801
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 27.9652151156
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 27.9652151156
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1708.4420982024
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1650.389868832
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 32.1631400375
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.9294869594
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1.1052
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 23.8544023735
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 25.7973347908
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 25.7973347908
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8.0352359635
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.8932456465
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0429198402
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0016856758
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.070616
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.026768801
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.3628277427
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.3628277427
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 29208.4140798501
    • Air Pollution M3 Manufacturing A1 A3 : 28932.2705808869
    • Air Pollution M3 Distribution A4 : 96.8941058089
    • Air Pollution M3 Installation A5 : 2.9227790381
    • Air Pollution M3 Operational Energy Use B6 : 7.4172
    • Air Pollution M3 End Of Life C1 C4 : 168.9094141162
    • Water Pollution M3 Total Life Cycle : 4720.255859975
    • Water Pollution M3 Manufacturing A1 A3 : 4147.5321798876
    • Water Pollution M3 Distribution A4 : 374.5713466583
    • Water Pollution M3 Installation A5 : 10.8005870831
    • Water Pollution M3 Operational Energy Use B6 : 4.3059
    • Water Pollution M3 End Of Life C1 C4 : 183.045846346
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.3606734668
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0306635795
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0436772848
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.3451406621
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0103999813
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0002973944
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.000083625
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.004751804
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 92.3999967314
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 88.3141074329
    • Global Warming Kg Equivalent Co2 Distribution A4 : 2.2777078326
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0714430144
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 0.087341
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 1.6493974516
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0293733449
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0007421517
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000222368
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.000013395
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0005124512
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0400440356
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0023953644
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000754491
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.000022038
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0011403977
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Load Center
    • Range Of Product : Homeline
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423253653&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 92.3999967314
    • Environmental Disclosure : ENVPEP2212003EN
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212003EN
    • Pep Verification Date : 2021-11-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : United States
