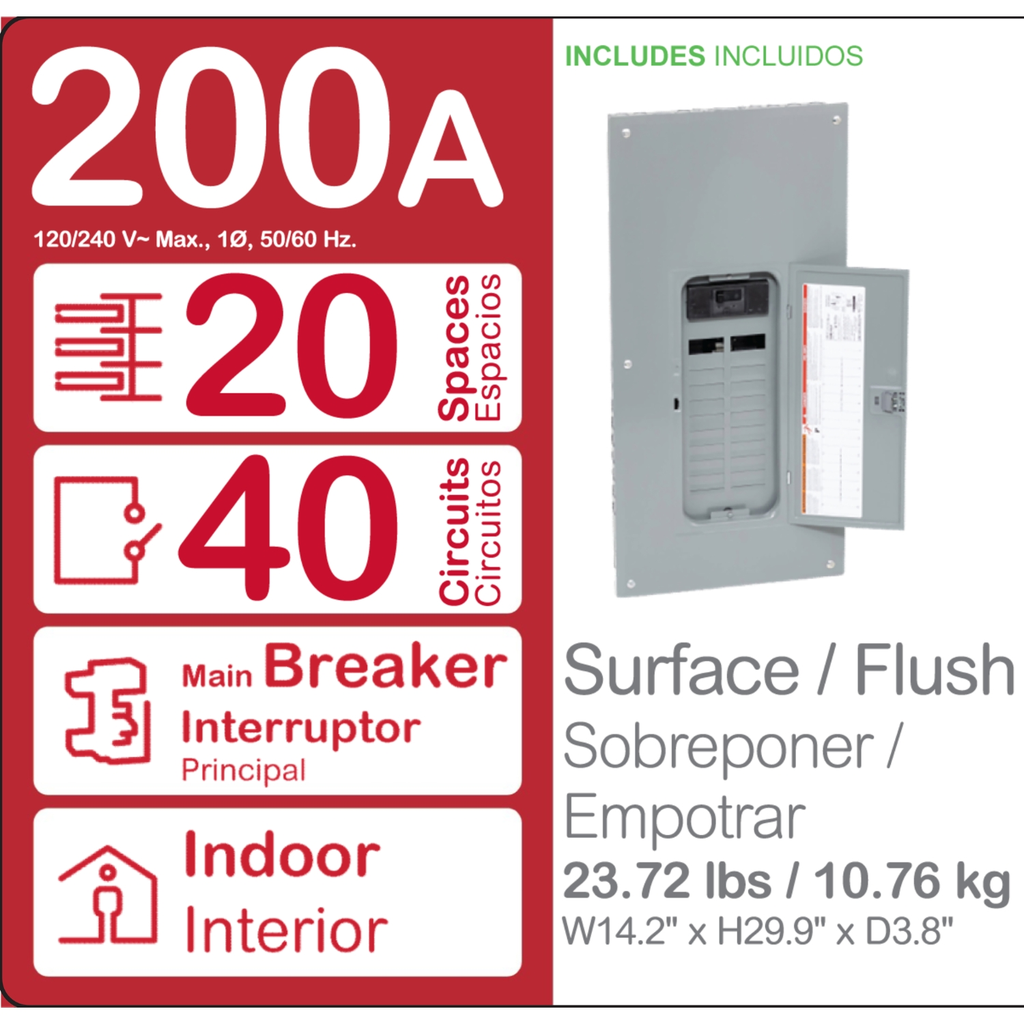

Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

HOM INDR 200A MB 20/40CIR

SQDHOM2040M200PC HOM2040M200PC 785901977285
134.72 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover-2
  • Country of Origin: USA
  • Cover Type: Combination Flush/surface Cover
  • Depth: 95 mm
  • Enclosure Material: Welded Sheet Steel
  • Height: 758 mm
  • Number of Circuits: 40
  • Number of Spaces: 20
  • Short Circuit Current Rating: 22 kA
  • Surface Finish: Baked Enamel Gray
  • Width: 362 mm
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 29.84 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 29.84 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Complementary
    • Height : 758 mm
    • Phase : 1 phase 3 wires
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Bus Rated Current : 225.0 A
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 20
    • Material : tin plated aluminium: busbar
    • Surface Finish : baked enamel Gray
    • Enclosure Material : welded sheet steel
    • Awg Gauge : AWG 4...250 kcmil aluminium/copper
    • Width : 362 mm
    • Depth : 95 mm
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 9
  • Specifications
    • Country of Origin : United States
    • Width : 362 mm
    • Height : 758 mm
    • Range Of Product : Homeline
    • Provided Equipment : circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
    • Product Or Component Type : Load Center
    • Electrical Connection : lugs
    • Number Of Circuits : 40
    • Number Of Spaces : 20
    • Cover Type : combination flush/surface cover
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
    • Line Rated Current : 200 A
    • Load Center Type : PoN Convertible Mains (breaker)
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403002
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 57 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 57.4389444928
  • Environment
    • Product Certifications : UL listed file E-6294
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
